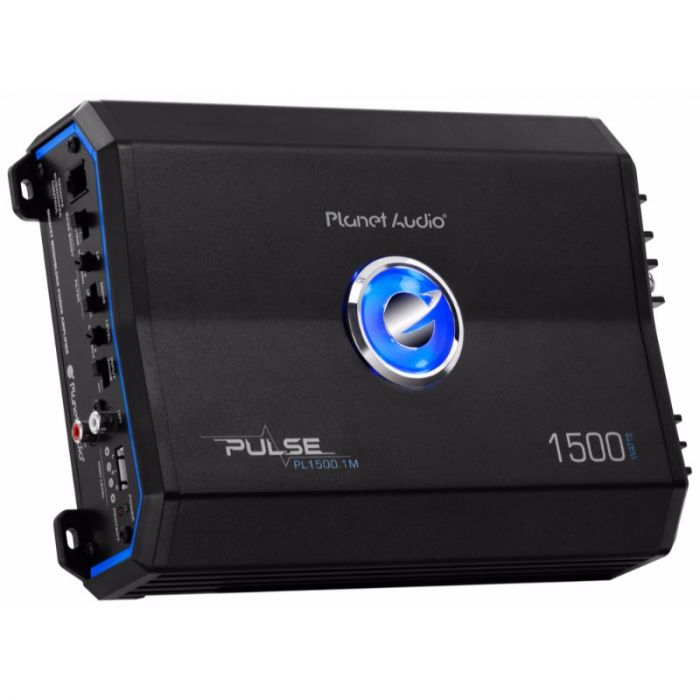

Planet Audio PL1500.1M Class AB Monoblock Amplifier - 1500 Watts

Rating:
100% of 100
$99.99
In stock
SKU
PL15001M

Key Features

  • Planet Audio 1500 watts monoblock amplifier
  • Class A/B 2 ohms amplifier
  • Pulse width modulated MOSFET power supply
  • Circuits with 3 stage protection
  • Anodized and black colored heatsink

Get your music rocking while on the go with Planet Audio PL1500.1M class A/B Monoblock Amplifier. Featuring 1500 Watts Max power, this all-powerful 2 ohm stable amplifier is empowered by MOSFET power supply that delivers forth your playlists. Allowing you to get your music in top gear while on the move, it also lets you customize the sound with the special variable low pass crossover and switchable bass boost with a handy boost and remote subwoofer control.

Within the limited confines of your car, you have music that has no limits and surrounds you with steady beats and blasts from this great car amplifier. Your passion for great music with the sound effects of your dream is fulfilled when you fit the Planet Audio PL1500.1M in your car, making it the cynosure of all you pass by on the road. The pulse amplifiers come with the cool blue illuminated panel strips and striking logo, adding power to the music and makes your heart beat faster to the steady beats that emanate from your music system.

Get into top gear with the Planet Audio PL1500.1M which can comfortably power your speakers and subwoofers at 2 ohms. It is able to dramatically increase the power output to give you the amazing sound effect at high volumes without any distortion. The high-level inputs readily accept speaker output signals, with the matching low-level inputs taking in the preamp output signals helping gain additional amplifiers. What’s more is the metal oxide semi-conductor field effect (MOSFET) allows switching from full to non-conduction taking the efficiency of the output to astonishing levels. The electrifying sound quality is enhanced several times, thanks to feature specific linear circuitry that increases power output, yet keeps any distortion at bay throughout your music tryst.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Planet Audio PL1500.1M Class AB Monoblock Amplifier - 1500 Watts
    Features:
  • Planet Audio PL1500.1M
  • 1500 Watts of power
  • Class-A/B 2-Ohm Stable Monoblock Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Speaker Impedance ranging from 2 to 8 Ω
  • Signal to noise ratio (A-weighted) 105 dB
  • 3 stage protection circuits (speaker short, thermal and overload protection)
  • Speaker-level (high-level) inputs
  • Black anodized heatsink
  • Frequency response from 9Hz-50KHz ± 1 dB
  • Subwoofer level control
  • Variable Bass Boost: 0 or 18 dB bass boost
  • Variable low-pass filter: 35 Hz to 160 Hz
  • Wired remote bass level control included
  • 2 channel RCA Inputs
    Max Power Output:
  • 1 x 1500 W @ 2 ohms (Peak power)
  • 1 x 563W @ 4 ohms (RMS power)
    Dimensions:
  • 7"W x 10"L x 2.26"H
    Warranty duration:
  • Basic warranty: 1 year
More Information
Manufacturer Planet Audio
Part Number PL15001M
Amplifier Topology Class Class AB
Number of Channels 1 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 1,125.00
Total RMS Power at 4 ohm 563.00
Total Peak Power Output 1,500.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 636210105763
Return period 30 days
Exchange period 30 days
