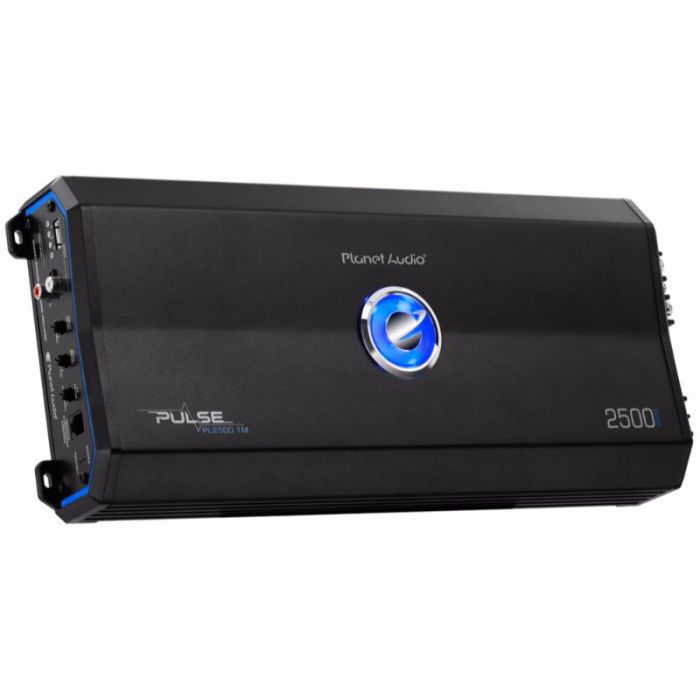

Planet Audio PL2500.1M Class AB Monoblock Amplifier - 2500 Watts
- Planet Audio 2500 watts monoblock amplifier
- Class A/B 2 ohms stable amplifier
- Pulse Width Modulated MOSFET power supply
- Circuits with 3 stage protection
- Anodized and black colored heatsink
Get your music rocking while on the go with Planet Audio PL2500.1M class Monoblock Amplifier. Featuring 2500 Watts Max power, this all-powerful 2 Ohm stable amplifier is empowered by MOSFET power supply that delivers forth your playlists. Allowing you to get your music in top gear while on the move, it also lets you customize the sound with the special variable low pass crossover and switchable bass boost with a handy boost and remote subwoofer control.
Within the limit confines of your car, you have music that has no limits and surrounds you with steady beats and blasts from this great car amplifier. Your passion for great music with the sound effects of your dream is fulfilled when you fit the Planet Audio PL2500.1M in your car, making it the cynosure of all you pass by on the road. The pulse amplifiers come with the cool blue illuminated panel strips and striking logo, adding power to the music and makes your heart beat faster to the steady beats that emanate from your music system.
Get into top gear with the Planet Audio PL2500.1M which can comfortably power your speakers and subwoofers at 2 ohms. It is able to dramatically increase the power output to give you the amazing sound effect at high volumes without any distortion. The high-level inputs readily accept speaker output signals, with the matching low-level inputs taking in the preamp output signals helping gain additional amps. What’s more is the metal oxide semi-conductor field effect (MOSFET) allows switching from full to non-conduction taking the efficiency of the output to astonishing levels. The electrifying sound quality is enhanced several times, thanks to feature specific linear circuitry that increases power output, yet keeps any distortion at bay throughout your music tryst.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manualPlanet Audio PL2500.1M Class AB Monoblock Amplifier - 2500 Watts
- Features:
- Planet Audio PL2500.1M
- 2500 Watts of power
- Class-A/B 2-Ohm Stable Monoblock Amplifier
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Speaker Impedance ranging from 2 to 8 Ω
- Signal to noise ratio (A-weighted) 105 dB
- 3 stage protection circuits (speaker short, thermal and overload protection)
- Speaker-level (high-level) inputs
- Black anodized heatsink
- Frequency response from 9Hz-130KHz ± 1 dB
- Subwoofer level control
- Variable Bass Boost: 0 or 12 dB bass boost
- Variable low-pass filter: 40 Hz to 130 Hz
- Remote Subwoofer Control
- 2 channel RCA Inputs
- Max Power Output:
- 1 x 2500 W @ 2 ohms
- 1 x 938 W @ 4 ohms (RMS)
- Dimensions:
- 7"W x 15.875"L x 2.26"H
- Warranty duration:
- Basic warranty: 1 year
Manufacturer | Planet Audio |
---|---|
Part Number | PL25001M |
Amplifier Topology Class | Class AB |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 0.00 |
Total RMS Power at 2 ohm | 1,875.00 |
Total RMS Power at 4 ohm | 938.00 |
Total Peak Power Output | 2,500.00 (Watts) |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Un-Bridged Mode | 2 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
Preamp voltage | 4 volts |
Speaker level inputs | Yes |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | Low-pass |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 4 Gauge |
CEA2006 Compliant | No |
UPC Code | 636210105749 |
Return period | 30 days |
Exchange period | 30 days |
