DISCONTINUED - Pyle PLHRQD7W 7'' Quad TFT LCD Video Monitor with Headrest Shroud - White

DISCONTINUED - Pyle PLHRQD7W 7'' Quad TFT LCD Video Monitor with Headrest Shroud - White

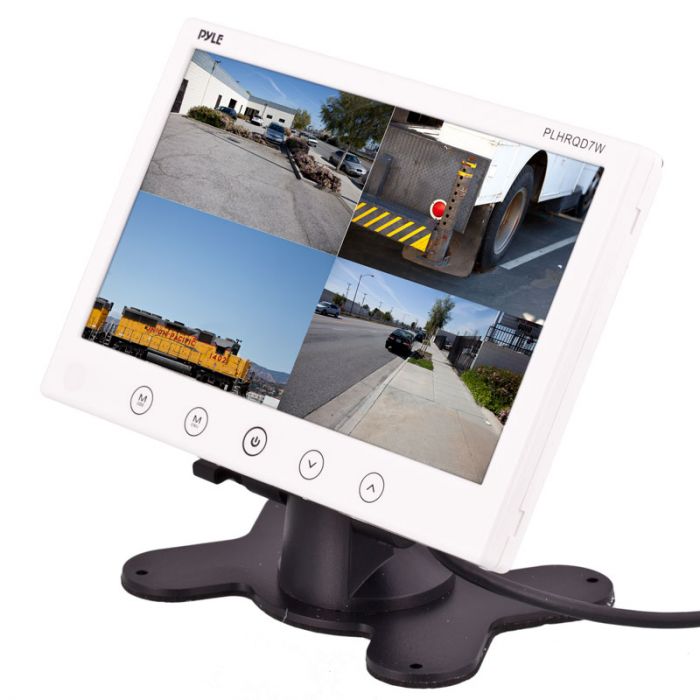

Pyle PLHRQD7W 7'' Quad LCD Video Monitor - Front right on stand

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pyle PLHRQD7W Product Highlights

  • 7 inch LCD Screen
  • 4 Video Inputs
  • Reverse Image Function
  • Wireless Remote Control
  • Quad Screen Viewing
  • White glossy painted housing
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit Includes: 7 inch LCD monitor, Wiring harness, AC adapter, BNC adapters, Remote control, Mounting stand, Headrest shroud and Instruction manual

Pyle PLHRQD7W 7'' Quad TFT LCD Video Monitor with Headrest Shroud - White

  • 7" TFT/LCD Active Matrix Video Monitor
  • Beautiful white housing and flush mount housing, perfect for mounting flush in a wall of vehicle
  • Built-In Quad Control Box Screen Function
  • High Resolution: 480 X 234
  • Selectable Viewing Modes: Single Screen, Split Dual Video View, Quad Four Source View
  • PAL/NTSC Video Format Compatible
  • Reverse Image Function
  • Operating Temperature: -20 degrees F ~ +65 degrees F
  • Storage Temperature -30 degrees F ~ +70 degrees F
  • Power Requirement: 12Vdc +/- 10%
  • Power Consumption: 5W Max
  • Shroud For Flush Mounting
  • Universal Stand Compatible
  • 4 - BNC video inputs
  • BNC to RCA adapters are included
  • Four Video Camera Inputs (V1/V2/V3/V4)
  • Includes AC Power Supply & Wireless Remote
  • Dimensions without shroud: 6 13/16" (W) x 4 9/16" (H) x 3/4" (D)

Technical Specifications

Manufacturer Pyle
Part Number PLHRQD7W
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input RCA audio/video input
USB input No
SD Card input No
Phone Mirroring No
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Stand Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Yes, reverse image flip
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color White
Color White
Warranty 1 Year
UPC Code 068889023398
