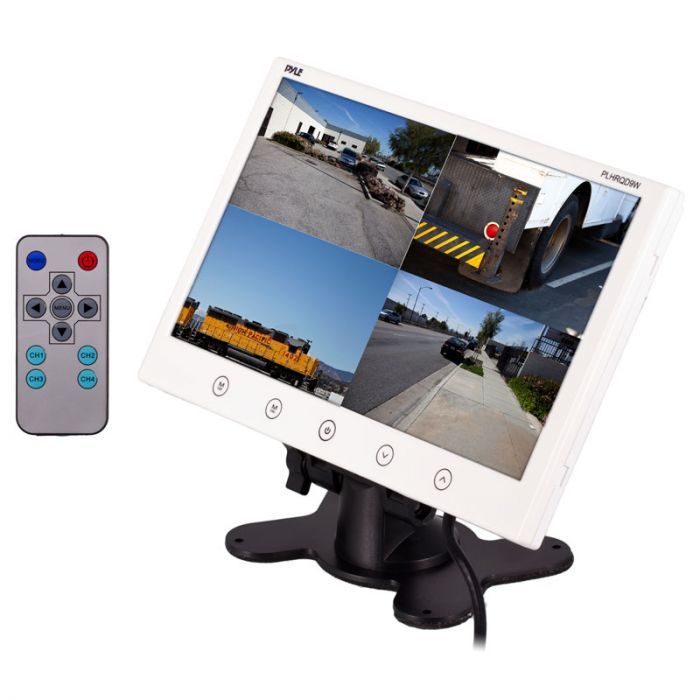

Pyle PLHRQD9W 9'' Quad TFT LCD Video Monitor with Headrest Shroud - White

Pyle PLHRQD9W 9'' Quad TFT LCD Video Monitor with Headrest Shroud - White

Pyle PLHRQD9W 9'' Quad LCD Video Monitor - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pyle PLHRQD9W Product Highlights

  • 9" TFT/LCD Active Matrix Video Monitor
  • 4 Video Inputs - RCA or BNC
  • Reverse Image Function
  • Wireless Remote Control
  • Quad Screen Viewing
  • White glossy painted housing
  • Shroud For Flush Mounting
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit Includes: 9 inch LCD monitor, RCA Wiring harness, AC adapter, BNC Wiring harness, Remote control, Mounting stand, Headrest shroud and Instruction manual

Pyle PLHRQD9W 9'' Quad TFT LCD Video Monitor with Headrest Shroud - White

  • 9" TFT/LCD Active Matrix Video Monitor
  • Beautiful white housing and flush mount housing, perfect for mounting flush in a wall or vehicle headrest
  • Built-In Quad Control Box Screen Function
  • Selectable Viewing Modes: Single Screen, Split Dual Video View, Quad Four Source View
  • Reverse Image Function
  • Shroud For Flush Mounting
  • Unit includes a RCA connector harness for use with conventional cameras or sources
  • Unit includes a BNC connector harness for use with CCTV cameras or sources
  • Universal Pedestal Stand Compatible
  • Slide track on the back for use with many different mounts
  • 1/4" x 20 stud in the bottom of the monitor for use with different mounts
  • Four Video Camera Inputs (V1/V2/V3/V4)
  • Includes AC Power Supply & Wireless Remote

Quick specifications:
  • High Resolution: 640 X 234
  • PAL/NTSC Video Format Compatible
  • Operating Temperature: -20 degrees F ~ +65 degrees F
  • Storage Temperature -30 degrees F ~ +70 degrees F
  • Power Requirement: 12Vdc +/- 10%
  • Power Consumption: 5W Max

Inputs and Outputs:
  • 4 - BNC video inputs
  • 4 - RCA video inputs
  • 1 - DC power connector

  • Dimensions without shroud: 8-5/8" (W) x 5-5/8" (H) x 3/4" (D)
  • Exterior dimensions of shroud: 9-5/8" (W) x 6-7/16" (H) x 7/8" (D)
  • Cutout dimensions of shroud: 8-13/16" (W) x 5-3/4" (H) x 13/16" (D)

Technical Specifications

Manufacturer Pyle
Part Number PLHRQD9W
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 640 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 300 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Plastic
Slide track on back Yes
Mounting thread for stand mount Yes
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Yes, reverse image flip
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included Yes
Headrest Shroud included Yes
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color White
Color White
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code 068889023381

Write Your Own Review

You're reviewing: Pyle PLHRQD9W 9'' Quad TFT LCD Video Monitor with Headrest Shroud - White

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Charles Masonic, Thursday, November 20, 2014


Can this monitor withstand environment on a boat under rough water conditions?


  • Posted by Store Owner on Thursday, November 20, 2014

    I would not recommend this monitor for the marine environment. The Boyo VTM7002MA is the correct monitor for harsh marine applications.
