Rockford Fosgate PM1000X5 1000 Watt 5-Channel Class AB/BD Marine Amplifier

Rockford Fosgate PM1000X5 1000 Watt 5-Channel Class AB/BD Marine Amplifier

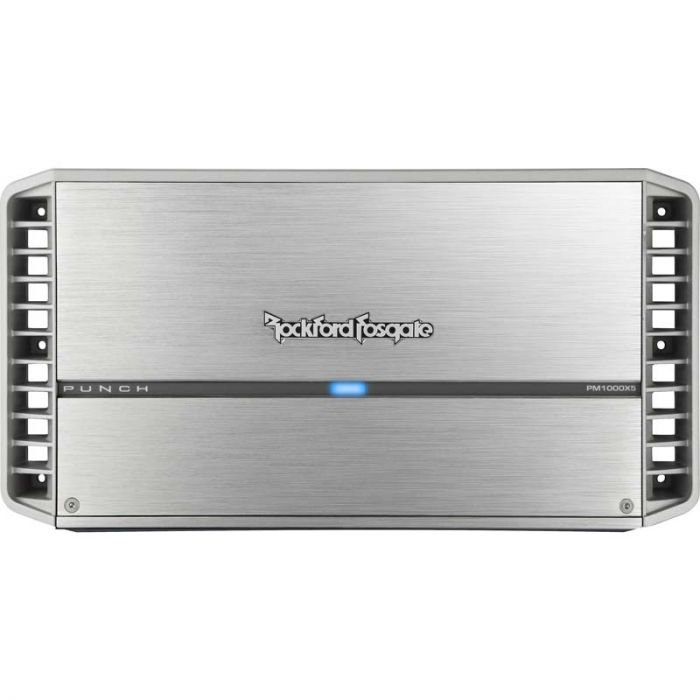

Rockford Fosgate PM1000X5 5-Channel Marine Amplifier - Top



More Views

Rockford Fosgate
Ships Free!

Overall Rating 4.4 (Based on 1 reviews)

Rockford Fosgate PM1000X5 Product Highlights

  • 1000 Watt Punch Series 5-Channel Marine Amplifier
  • 75 watts RMS x 4 Channels + 150 watts RMS x 1 Channel at 4 ohms
  • High level input capable with an Auto Turn-On circuit
  • On-board Punch equalizer and is remote Punch Level Control ready
  • Hidden top mounted control panel and a cast aluminum heatsink
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!

Overview

Unit includes: Marine Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate PM1000X5 1000 Watt 5-Channel Class AB and Class BD Marine Amplifier:


    Features:
  • 1000 Watt Punch Series 4-Channel Class AB and 1-Channel Class BD Marine Amplifier
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • Stealth top mounted control panel
  • High level input capable with Auto Turn-On circuit
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • 12dB/octave Butterworth crossover
  • Infrasonic filter
  • 2/4 channel input switch
  • On-board Punch EQ with +18dB boost @ 45Hz
  • TRANS•ana topology - simplifies the signal path of the amplifier that results in greater reliability and sound quality
  • MOSFET power supply for incredible power
  • LED indicators: Power, Protect, and Thermal
  • Balanced Differential inputs - filters and eliminates noise picked up from the RCA signal cables as they are run through the vehicle
  • C.L.E.A.N circuit that allows you to properly optimize input signal to output capability for proper signal to noise ratio and prevent damaging distortion
  • MEHSA3 utilizes a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques that lowers distortion, increases durability and prolongs the output device life span
  • DSM - An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces which improves efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature
  • NOMAD is a real time analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • DTM - Dynamic Thermal Management evenly distributes heat across entire amplifier cast aluminum heat-sink without noisy fans utilizing convection cooling
  • Provides three way protection circuitry, which includes thermal, overload and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for utmost heat dissipation
  • Requires minimum 4 gauge power and ground wiring for installation
  • CEA-2006 compliant amplifier
  • Frequency Response: 20Hz to 20kHz +/- 3.0dB (Channels 1-4)
  • Frequency Response: 20Hz to 500Hz +/- 3.0dB (Channels 5)
    Inputs and Outputs:
  • 6 - Nickel-plated RCA high or low level inputs (150 mV - 12 V)
  • Input sensitivity is 150 mV to 12V
  • 12 AWG speaker connections (Captive C-Clamp)
  • 4 AWG power connections (Captive C-Clamp)
    Max Power Output:
  • 1-Ohms: 863 watts x 1 channel (Subwoofer channel only)
  • 2-Ohms: 190 watts x 4 channel and 540 watts x 1
  • 4-Ohms: 115 watts x 4 channel and 299 watts x 1
    RMS Power Output:
  • 1-Ohms: 500 watts x 1 channel (Subwoofer channel only)
  • 2-Ohms: 125 watts x 4 channel and 300 watts x 1
  • 4-Ohms: 75 watts x 4 channel and 150 watts x 1
    Tone Controls:
  • Optional PLC2 wired remote bass level control
  • Punch EQ2 Bass Boost: 0dB to +18 dB at 45 Hz
    Built in Crossover:
  • Variable high-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth (Channels 1+2 and 3+4)
  • Variable low-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth (Channel 5)
  • Infrasonic filter: 28 Hz @ 12 dB/octave
  • All Pass
    Dimensions:
  • Overall Dimensions: 2.38” (H) x 15.03” (D) x 7.76” (W)
    Current consumption:
  • Recommended Fuse: 150 amp
  • Maximum current draw: 150 amp (13.8V Sinewave)
  • Average current draw: 75 amp (13.8V Music)

Technical Specifications

Manufacturer Rockford Fosgate
Part Number PM1000X5
Amplifier Topology Class Class D
Number of Channels 5 Channel
Total Peak Power Output 1001 - 1500 watts
Total RMS Power Output 501 - 750 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage 150 mV - 12 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Silver
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
UPC Code 780687345211
