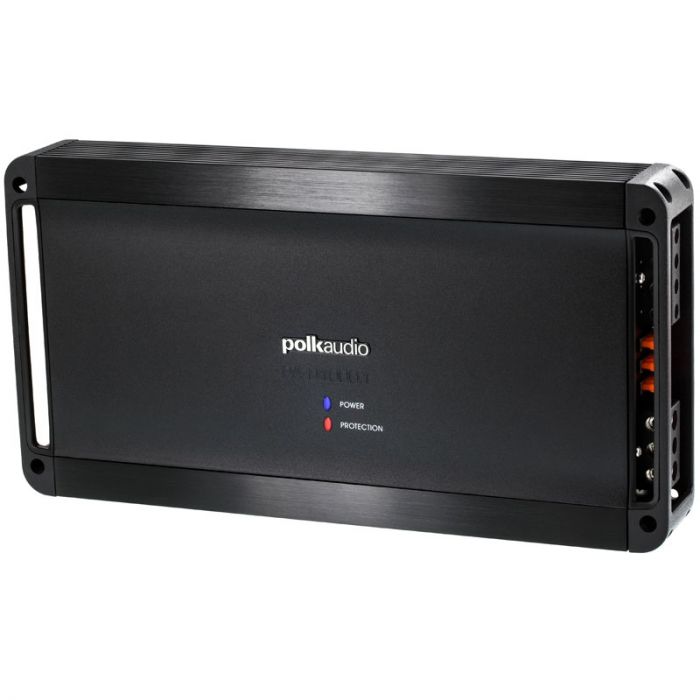

Polk Audio PAD10001 Class D Monoblock Amplifier - 1200 watts
- Class D Monoblock Amplifier
- Max power output of 1200 Watts
- Stable and High speed MOSFET Power supply
- 3 Stage Protection with Short Circuit, DC Voltage and Thermal Protection
- Nickel plated terminal allowing maximum signal transfer
The Polk Audio PA D1000.1 is the all new, highly efficient 1 channel car amplifier that is a perfect upgrade for your ride. Get the precise amount of power delivered while going on long drives so that you can listen to some great music like never before. Thanks to the 1 channel, this great car amplifier can deliver music through four of your speakers as well as a subwoofer. If you have been planning for a complete upgrade for your ride’s audio system so that you can supply power to the new drivers, the Polk Audio PA D1000.1 is a great option you need to check out. You can now connect channels easily with this all new amplifier, which gives you the option for multiple wiring as well as power handling ratings with the quality and efficiency getting enhanced manifold.
Thanks to technological innovations, Polk Audio now takes the PA D series to an all new level of digital amplification that is really far out. With a much smaller footprint and a highly efficient design that guarantees lower power consumption without any distortion in sound is what you get with the new PA D series. The mounting convenience these 2” high configuration amplifiers offer is unparalleled, making them suitable for any type of ride. The amplifier feature 4-way protection circuitry and the high quality stainless steel hardware guarantee stylish looks and longevity.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manualPolk Audio PAD10001 Class D Monoblock Amplifier - 1200 watts
- Features:
- Class D Technology for a cooler operation
- 1200 watts @ 1 Channel Operation
- Stable High-Speed MOSFET power supply
- Short Circuit, DC Voltage and Thermal Protection
- Maximum signal transfer with the help of Nickel plated terminal
- Corrosion-Free, Environmental Friendly Stainless Steel Construction
- 1200 watts RMS Power @ 1 ohm un-bridged operation
- 44Hz Hz Bass Boost
- <0.1 % Distortion power rating and effective damping factor >150
- 200mV-6V dB Maximum Sensitivity
- 105 dBA of Signal-to-noise ratio
- 20Hz-20kHz of total frequency response
- Max Power Output:
- 1200 watts
- RMS Power Output:
- 500 watts @ 4 ohms
- 800 watts @ 2ohms
- Inputs and Outputs:
- Low-Pass Filter Frequency @ 40Hz-220Hz
- 12dB/octave of Low-Pass Filter Slope
- Dimensions:
- 1.81”(H) X 13.31”(W) X 6.75”(L)
- Warranty Duration:
- Basic Warranty: 1 year
Manufacturer | Polk Audio |
---|---|
Part Number | PAD10001 |
Amplifier Topology Class | Class D |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | $1,200.00 |
Total RMS Power at 2 ohm | $800.00 |
Total RMS Power at 4 ohm | $500.00 |
Total Peak Power Output | $1,200.00 |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Un-Bridged Mode | 2 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
RCA Pre-amp Audio outputs | 1 Pair |
Preamp voltage | 150 mV - 12 V |
Speaker level inputs | No |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | Low-pass |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 4 Gauge |
CEA2006 Compliant | No |
UPC Code | 747192121914 |
Return period | 30 days |
Exchange period | 30 days |
Car amplifier installation
We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.
Amplifier Installation basics
Let's start with the basics of adding or installing a car amplifier. First you will need to plan your installation and power wiring, this usually is the most difficult part of the installation for most.
How to choose the proper wire size explained
What size power wire do I need for my amplifier? Well, that depends on the length of the wire and the power consumption of the amplifier. We walk you through how to choose the right gauge wire and wire material depending on your amplifier installation requirements.
How to wire speakers and subwoofers to your new amplifier
In our third video we demonstrate the various ways you can wire speakers and amplifiers to all types of amplifiers. There different ways to do this depending on the type of amplifier you choose to purchase.
What is gain? How do I set it properly?
In our fourth video we demonstrate how to set the gains on your amplifier to prevent damage to your speakers, subwoofers and even possibly your new amplifier. Using a portable oscilloscope we show you how to set your gains.
