VFL Audio VFLCOMP12K 12000 Watt Mono Class-D Competition Amplifier

$2,529.99
In stock
SKU
VFLCOMP12K

Key Features

  • 12000 Watt Mono Class-D Competition Amplifier
  • Stable down to 1-ohm
  • 12000 watts RMS x 1 Channel (1 ohm)
  • 6000 watts RMS x 1 Channel (2 ohms)
  • 3000 watts RMS x 1 Channel (4 ohms)
  • Strap-able for ridiculous power output
Unit includes: 1-Channel power amplifier, Mounting hardware, Wired bass controller and Instruction manual

VFL Audio VFLCOMP12K 12000 Watt Mono Class-D Competition Amplifier
    Features:
  • 12000 Watts Max Power
  • Stable down to 1-ohm

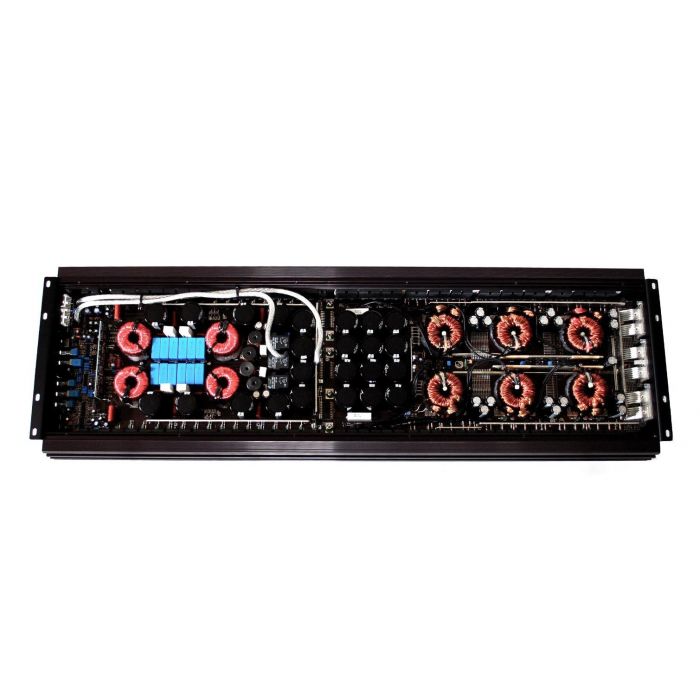

  • Pulse Width Modulated MOSFET Power supply
  • Double side PCB with high quality SMD components
  • Oversized toroids Power supply for excellent current and voltage control even under the highest demands
  • Amplifier is strap-able so that you can connect and bridge with another for additional power output (2 ohm - 4 ohm load only)
  • Nickel plated terminals for all connections
  • Accepts up to 16 volts DC input for maximum sound output
  • Frequency Response: 20Hz to 350 Hz
  • Total Harmonic Distortion (4 Ω): < 0.15%
  • Signal-to-Noise Ratio (IHF-A Weighted, at 40 Hz): >70dB
  • Minimum Dual 0 Gauge power wire with 1600 amp fuse
    Protection circuits
  • 3-Way Protection circuit
  • Internal temperature and automatically lowers input level to prevent heat damage
  • Short circuit protection prevent damage when speaker leads are shorted
  • Overload protection prevent damage from low impedance or blown woofers
    Internal crossovers
  • Variable Low Pass filter: 35Hz - 250Hz at 24dB per octave
  • Variable Subsonic High Pass filter: 10Hz - 50Hz at 24dB per octave
    Audio controls
  • Variable phase control: 0° - 180° phase control
  • Variable Bass boost controls: 0 - +9dB at 45Hz
    Inputs and outputs
  • 1 - 2 channel RCA input accepts up to 6 volt input signals
  • 1 - 2 channel RCA output
  • 1 - Strap-able data connection
  • 1 - Remote bass control input
    RMS Power Rating:
  • 4 ohms: 3000 watts x 1 channels
  • 2 ohms: 6000 watts x 1 channels
  • 1 ohms: 12000 watts x 1 channel
    Dimensions:
  • Dimensions: 32-1/4" (L) x 2-1/4" (H) x 9-1/2" (D)
More Information
Manufacturer VFL
Part Number VFLCOMP12K
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 12,000.00
Total RMS Power at 2 ohm 6,000.00
Total RMS Power at 4 ohm 3,000.00
RMS Output per Channel (x1 at 2 ohms) 12,000.00 Watts
RMS Output per Channel (x1 at 1 ohms) 6,000.00 Watts
RMS Output per Channel (x1 at 4 ohms) 3,000.00 Watts
Total Peak Power Output 14,000.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier Yes
Strappable Power Output 29000
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 200 mV - 6 V
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass, Sub-sonic
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 0 Gauge
Overall Height 2.25 inches
Overall Length 32.25 inches
Overall Width 9.50 inches
CEA2006 Compliant No
UPC Code 636823699154
Return period 30 days
Exchange period 30 days
