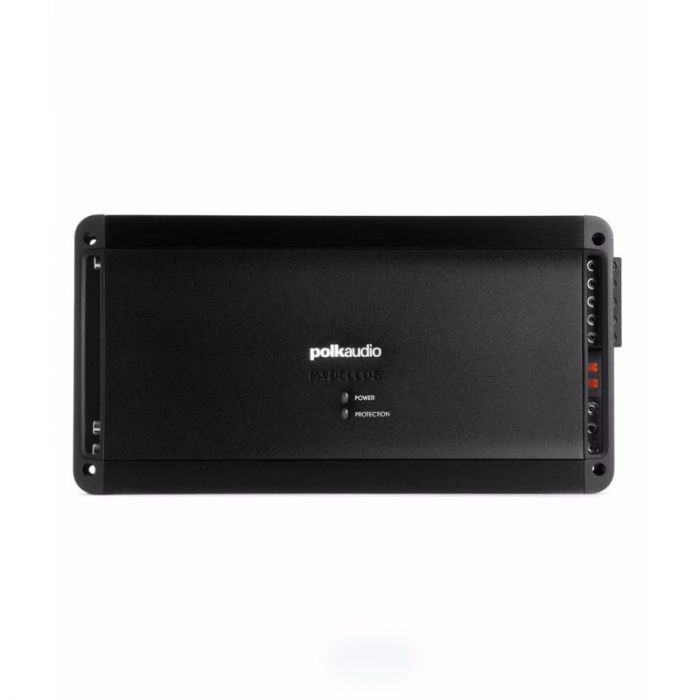

Polk Audio PAD50005 Class D 5 Channel Amplifier - 800 watts

$299.99
Out of stock
SKU
PAD50005

Key Features

  • Bridgeable Class D Full Range 5 Channel Amplifier
  • Stable and High speed MOSFET Power supply
  • 3 Stage Protection with Short Circuit, DC Voltage and Thermal Protection
  • Nickel plated terminal allowing maximum signal transfer
  • Corrosion-Free, Environmental Friendly Stainless Steel Construction

The Polk Audio PA D5000.5 is the all new, highly efficient 5 channel car amplifier that is a perfect upgrade for your ride. Get the precise amount of power delivered while going on long drives so that you can listen to some great music like never before. Thanks to the 5 channels, this great car amplifier can deliver music through four of your speakers as well as a subwoofer. If you have been planning for a complete upgrade for your ride’s audio system so that you can supply power to the new drivers, the Polk Audio PA D5000.5 is a great option you need to check out. You can now bridge channels easily with this all new amplifier, which gives you the option for multiple wiring as well as power handling ratings with the quality and efficiency getting enhanced manifold.

Thanks to technological innovations, Polk Audio now takes the PA D series to an all new level of digital amplification that is really far out. With a much smaller footprint and a highly efficient design that guarantees lower power consumption without any distortion in sound is what you get with the new PA D series. The mounting convenience these 2” high configuration amplifiers offer is unparalleled, making them suitable for any type of ride. The amplifier feature 4-way protection circuitry and the high quality stainless steel hardware guarantee stylish looks and longevity.

Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Polk Audio PAD50005 Class D 5 Channel Amplifier - 800 watts
    Features:
  • Bridgeable Class D Technology for a cooler operation
  • 800 watts Full Range 5 Channel Operation
  • Stable High-Speed MOSFET power supply
  • Short Circuit, DC Voltage and Thermal Protection
  • Maximum signal transfer with the help of Nickel plated terminal
  • Corrosion-Free, Environmental Friendly Stainless Steel Construction
  • 200mV-6V dB Maximum Sensitivity
  • Minimum bridged impedance @ 4 ohms and minimum un-bridged impedance @ 2 ohms
  • 105 dBA of Signal-to-noise ratio
  • 20Hz-20kHz of total frequency response
    Max Power Output:
  • 800 watts
    RMS Power Output:
  • 200 watts x 2 Channel @ 4 ohms bridged operation
  • 70 watts x 4 Channel @ 4 ohms un-bridged operation
  • 100 watts x 4 Channel @ 2 ohms un-bridged operation
    Inputs and Outputs:
  • High-Pass Filter Frequency @ 40Hz-400Hz(front)/40Hz-4kHz(rear)
  • 12dB/octave of High-Pass Filter Slope
  • Low-Pass Filter Frequency @ 80Hz-4kHz(front)
    Dimensions:
  • 1.81”(H) X 13.31”(W) X 6.75”(L)
    Warranty Duration:
  • Basic Warranty: 1 year
More Information
Manufacturer Polk Audio
Part Number PAD50005
Amplifier Topology Class Class D
Number of Channels 5 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
Preamp voltage 150 mV - 12 V
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 4 Gauge
CEA2006 Compliant No
UPC Code 747192121945
Return period 30 days
Exchange period 30 days
