Quality Mobile Video 2014 - 2015 Chevy Silverado / Sierra Work Truck OEM Rear View Back Up Camera Kit - 9002-1015
$855.99
In stock
SKU
9002-1015
Expert Knowledge
Talk to a specialist
- Complete back up camera system
- Fits 2014 Chevy Silverado / Sierra Rear View Back Up Camera
- Complete kit and includes everything you need for the installation
Unit includes: OEM Factory rearview mirror monitor, Replacement tailgate camera, Extension cable, OEM interface harness, Zip ties, and 26 page step-by-step instruction manual
Designed for the work truck
2014 - 2015 Chevy Silverado / Sierra Work Truck OEM Rear View Back Up Camera Kit
Designed for the work truck

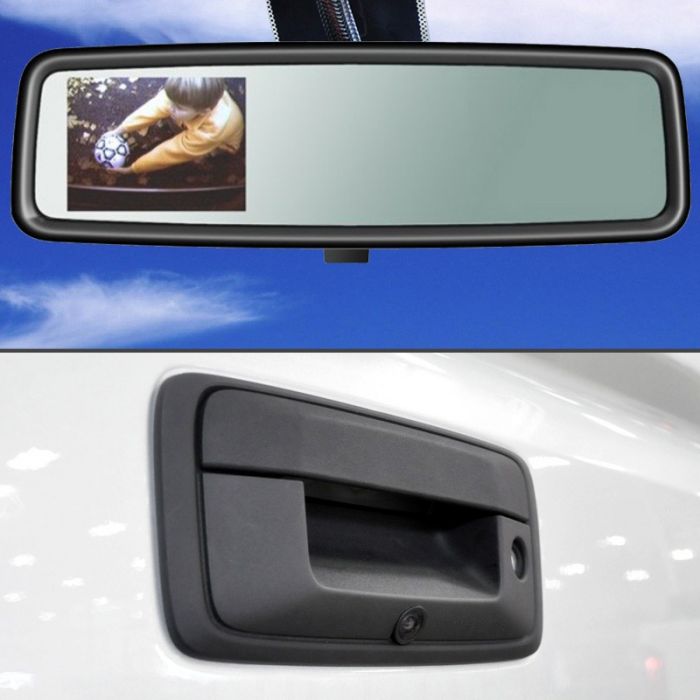

The 9002-1015 Chevy Silverado or GMC Sierra work truck back up camera is an exclusive aftermarket solution designed specifically for the 2014 - 2015 Work truck Silverado and Sierra. This system is designed to fit vehicles that do not have OnStar and have manual dimming mirrors. The system provides a rear view backup camera system with manual dimiing replacement rear view mirror and replacement tailgate handle bezel with integrated Panasonic OEM-grade color rearview camera. The system has taken installation into account and provides a single plug and play wire harness with step-by-step illustrated instruction to make it easy to install for anyone.
2014 - 2015 Chevy Silverado / Sierra Work Truck OEM Rear View Back Up Camera Kit
- Features:
- Identical to the system available from your GM dealer
- High quality, OEM approved components and construction
- No loss of features in your current mirror or vehicle
- Parking gridlines for easy distance control and collision avoidance
- Manual dimming mirror
- Large 3.5” color backup monitor displays vividly when you put your truck in reverse
- One year warranty
- 3.5" TFT LCD Mirror Monitor
- High Resolution Display
- Integrated compass/temperature display
- Auto Dimming
- 1/4" CCD Color Camera
- 3 Lux For Illumination & Sharper Image
- Color Image w/Automatic White Balance
- Electronic Auto Iris
- 150 Degree Horizontal and 100 degree Vertical Lens with Excellent Depth of Field
- Waterproof Case w/Anti-fog Lens
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | 9002-1015 |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 480 x 234 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 500 Nit |
| LCD back light type | CCFL |
| Auto Dimming | Yes - Full Auto Dimming |
| Trigger wire | Yes |
| Modulation | NTSC and PAL |
| Image Flip Function | Yes, reverse image flip |
| Built in Speakers | No |
| Auto on/off | Yes |
| Audio Video inputs | 1 Audio Video Input |
| Wireless Remote Control | No |
| Monitor Type | Rearview mirror monitor |
| Mirror Mount Type | Glass Mount |
| Back up camera type | Vehicle Specific Camera |
| Homelink | No Homelink transmitter |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CCD |
| Camera diameter | 2.96 mm |
| Viewing Angle | 150 degrees |
| Parking grid lines | No |
| Built in Microphone | No |
| Infrared Illumination | No |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Connector Type | 5 Pin Connector |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-15 Volt DC |
| Warranty | 1 Year |
| Vehicle Year | 2014, 2015 |
| Vehicle Brand | Chevrolet, GMC |
| Vehicle Model | Sierra, Silverado |
| Return period | 30 days |
| Exchange period | 30 days |
