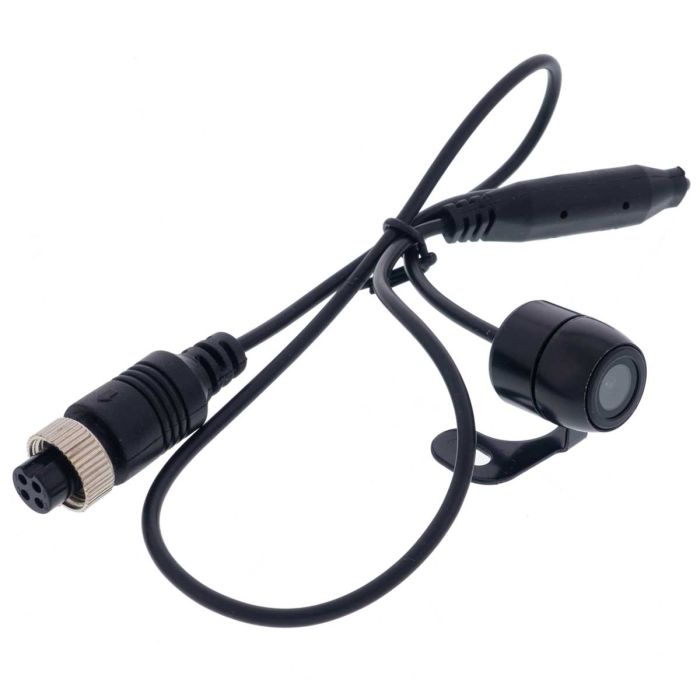

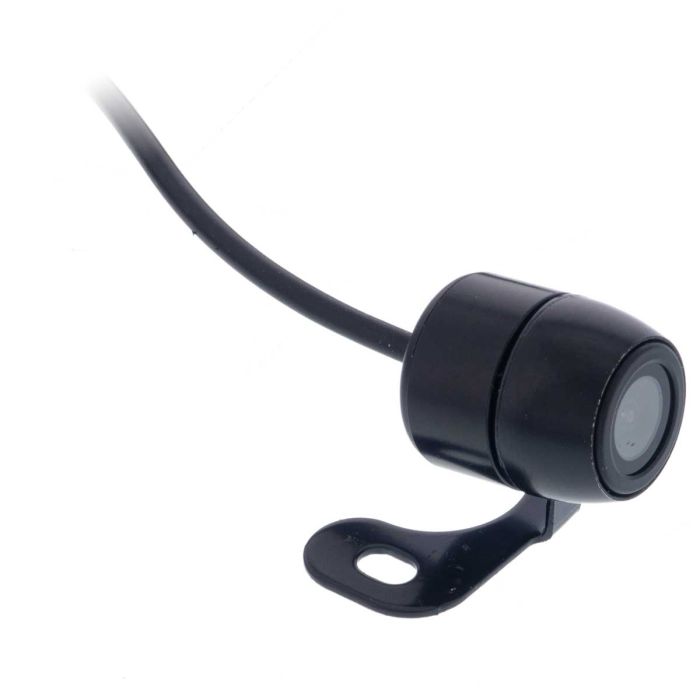

Safesight RC508AHD Micro surface mount 960p AHD back up camera with drill bit
Safesight RC508AHD Micro surface mount 960p AHD back up camera with drill bit
Key Features
Flush Mount 960P AHD back up camera CMD image sensor for better picture quality Mini Size Camera 120 Degree Wide Angle Low Light Sensitive 4-pin aviation connector
Unit includes: Reverse back up camera and Surface mount bracket
Safesight RC508AHD Micro surface mount back up camera with drill bit
Features:
1280 x 960 CMD image sensor for better picture quality
Micro surface mount camera - Micro sized
Parking Assist grid lines for better distance determination
Technical specifications
1280 x 960 CMD resolution imager
IP68 waterproof rating
120 degree viewing angle
Camera dimensions: 3/4" (Diameter) x 1-1/16" (Length)
Inputs and Outputs
(1) - 4-pin AHD connector
More Information
Manufacturer
Safesight
Part Number
RC-508AHD
Camera Sensor type
CMD
Back up camera type
Surface Mount Camera
Camera diameter
2.8 mm
Viewing Angle
120 degrees
Wireless Transmission
Wired connection
Waterproof ingress protection
IP68 - Dust; Immersion beyond 1 m
Reverse Image
Yes - Reverse Image
Parking grid lines
Yes
Infrared Illumination
No
Built in Microphone
No
Connector Type
4 Pin Connector
Modulation
AHD
Operation Voltage
8-15 Volt DC
Battery Powered
Hard wired
Cigarette Lighter Cord Included
No
Color
Black
Overall Height
$1.00
Overall Length
$1.06
Overall Width
$1.50
Warranty
1 Year
Return period
30 days
Exchange period
30 days
