Safesight SC9002 7 inch Commercial RV Back Up Camera System

Rating:
79 % of 100
$171.99
In stock
SKU
SC9002

Key Features

  • 7 inch LCD monitor with two video inputs
  • 2 Video inputs
  • Night vision CCD camera
  • Optional second camera

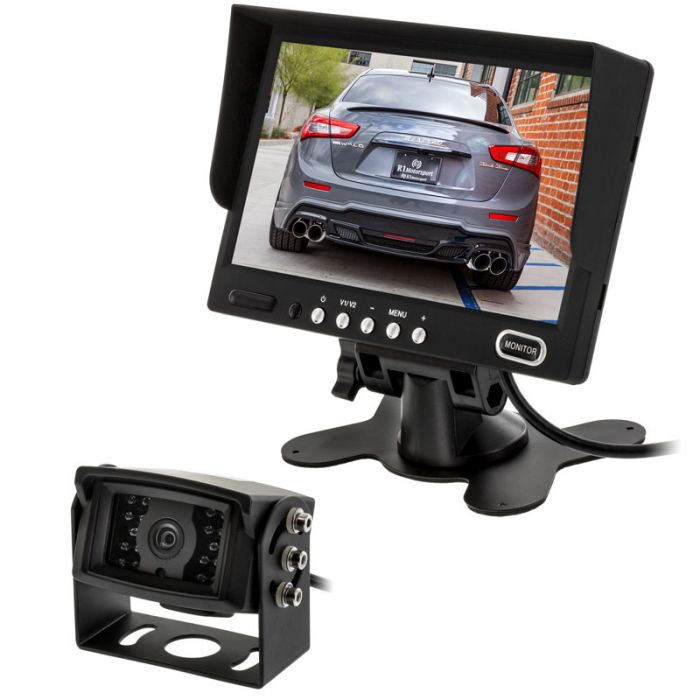

Unit includes: 7 inch LCD monitor, Wiring harness, Extension cable, Back up camera, Remote Control Instruction manual, and Connectors

Safesight SC9002 7 inch Commercial RV Back Up Camera System
    Monitor Features:
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)
  • 7 inch TFT LCD High Resolution
  • 2 Video Inputs
  • PAL/NTSC auto switching
  • Resolution: 480x234xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees
    Camera Features:
  • High Resolution Back Up Camera
  • 1/3" CCD Image Sensor
  • System: NTSC/PAL
  • 600 TV lines
  • 120 degrees Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0Lux (LED On)
  • IR Infrared 10 LEDs for Night Vision 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Dimensions: 70x50x40 mm
  • Waterproof Rating: Ip67
  • Shell Material Aluminium Alloy
  • Square style casing
  • 4 Pin Connector
  • 60 feet Extension Cable
    Extension Cable Features:
  • 60 ft or 18 meters length
  • 4 Pin lock connector
More Information
Manufacturer Safesight
Part Number SC9002
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 480 x 234
Modulation NTSC and PAL
Audio Video inputs 2 Video Inputs
Wireless Remote Control Yes
Back up camera type Surface Mount Camera
Camera Sensor type CCD
Viewing Angle 120 degrees
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Connector Type 4 Pin Connector
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
