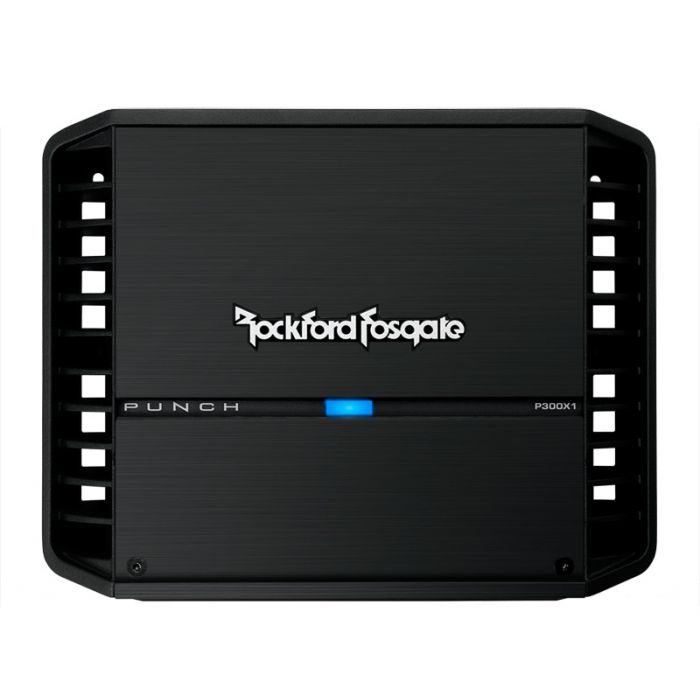

Rockford Fosgate P300X1 300 Watt Mono Class AB Car Amplifier

$213.99
In stock
SKU
P300X1

Key Features

  • 300 Watt Punch Series Monoblock Class AB Car Amplifier
  • 200 watts RMS x 1 Channels at 4 ohms
  • 300 watts RMS x 1 Channels at 2 ohms
  • MOSFET power supply for incredible power
  • Balanced Differential inputs
  • Variable high-pass and low pass filters
  • Bass or treble boost controls
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate P300X1 300 Watt Mono Class AB Car Amplifier:

Features:
  • 300 Watt Punch Series Monoblock Class AB Car Amplifier
  • TRANS•ana topology - simplifies the signal path of the amplifier that results in greater reliability and sound quality
  • MOSFET power supply for incredible power
  • LED indicators: Power, Protect, and Thermal
  • Balanced Differential inputs - filters and eliminates noise picked up from the RCA signal cables as they are run through the vehicle
  • C.L.E.A.N circuit that allows you to properly optimize input signal to output capability for proper signal to noise ratio and prevent damaging distortion
  • MEHSA3 utilizes a proprietary process that yields up to five times better heat transfer than traditional FET mounting techniques that lowers distortion, increases durability and prolongs the output device life span
  • DSM - An industry-leading manufacturing process, DSM utilizes high-speed robotics, high-quality 1% tight-tolerance parts and large board traces which improves efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature
  • NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
  • DTM - Dynamic Thermal Management evenly distributes heat across entire amplifier cast aluminum heat-sink without noisy fans utilizing convection cooling
  • Provides three way protection circuitry, which includes thermal, overload and speaker short protection
  • Integrated heavy-duty aluminum alloy vented heat sink for utmost heat dissipation
  • Requires minimum 8 gauge power and ground wiring for installation
  • CEA-2006 compliant amplifier
  • Frequency Response: 20Hz to 20kHz +/- 1.0dB


Inputs and Outputs:
  • Mono channel operation
  • Nickel-plated RCA level inputs
  • Nickel-plated RCA level outputs
  • Input sensitivity is 150 mV to 12V
  • Captive C-Clamp 8 AWG to 18 AWG speaker connections
  • Captive C-Clamp 4 AWG to 8 AWG power connections


Max Power Output:
  • 2 ohms: 444 watts x 1 channel
  • 4 ohms: 260 watts x 1 channel


RMS Power Output:
  • 2 ohms: 300 watts x 1 channel
  • 4 ohms: 200 watts x 1 channel


Tone Controls:

Built in Crossover:
  • Variable high-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
  • Variable low-pass filter: 50 Hz - 250 Hz @ 12 dB/octave Butterworth
  • All Pass


Dimensions:
  • Overall Dimensions: 9-7/8" (W) x 7-3/4" (D) x 2-3/8" (H)
More Information
Manufacturer Rockford Fosgate
Part Number P300X1
Amplifier Topology Class Class AB
Number of Channels 1 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 300.00
Total RMS Power at 4 ohm 200.00
Total Peak Power Output 444.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode 2 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover High-pass, Low-pass, None
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 780687342265
Return period 30 days
Exchange period 30 days
