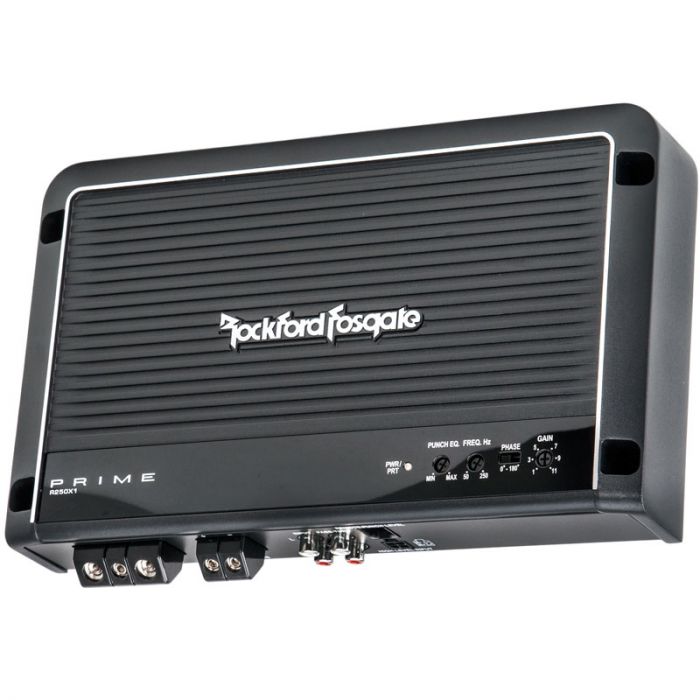

Rockford Fosgate R250X1 250 Watt Single Channel Class AB Car Amplifier

$181.99
Out of stock
SKU
R250X1

Key Features

  • 250 Watt Prime Series Monoblock Class AB Car Amplifier
  • 250 watts RMS x 1 Channels at 2 ohms
  • 150 watts RMS x 1 Channels at 4 ohms
  • High level input capable with an Muted Turn-On circuit
  • On-board Punch equalizer and is remote Punch Level Control ready
  • Hidden top mounted control panel and a cast aluminum heatsink
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual

Rockford Fosgate R500X1D 500 Watt Single Channel Class D Car Amplifier:

Features:
  • 250 Watt Prime Series Single Channel Class AB Car Amplifier
  • Top mounted controls
  • MOSFET power supply for large power output
  • LED indicators for Power and Protect
  • Remote Punch Level Control
  • Provides two-way protection circuitry, which includes overload and speaker short circuits
  • Heavy-duty extruded cast aluminum heat sink for utmost heat dissipation
  • Requires minimum 4 gauge power and ground wiring for installation
  • CEA-2006 compliant amplifier
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB


Inputs and Outputs:
  • Single-channel operation
  • Nickel-plated RCA level inputs and outputs
  • Input sensitivity is 150mV to 4V
  • Screw Terminal 8 AWG speaker connections
  • Screw Terminal 4 AWG power connections


RMS Power Output:
  • 4-Ohms: 150 Watts x 1
  • 2-Ohms: 250 Watts x 1
  • Total Power Output: 250 Watts


Max Power Output:
  • 4-Ohms: 186 Watts x 1
  • 2-Ohms: 298 Watts x 1


Tone Controls:
  • Optional PLC2 wired remote bass level control
  • Punch EQ2 Bass Boost: 0dB to +12 dB at 45 Hz


Built in Crossover:
  • Low Pass: 50Hz - 250Hz @ 12dB/octave


Dimensions:
  • Overall Dimensions: 1.98” (H) x 11.22” (D) x 6.77” (W)
More Information
Manufacturer Rockford Fosgate
Part Number R250X1
Amplifier Topology Class Class AB
Number of Channels 1 Channel
Total RMS Power at 1 ohm 0.00
Total RMS Power at 2 ohm 250.00
Total RMS Power at 4 ohm 150.00
Total Peak Power Output 298.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 4 volts
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Optional
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 780687340568
Return period 30 days
Exchange period 30 days
