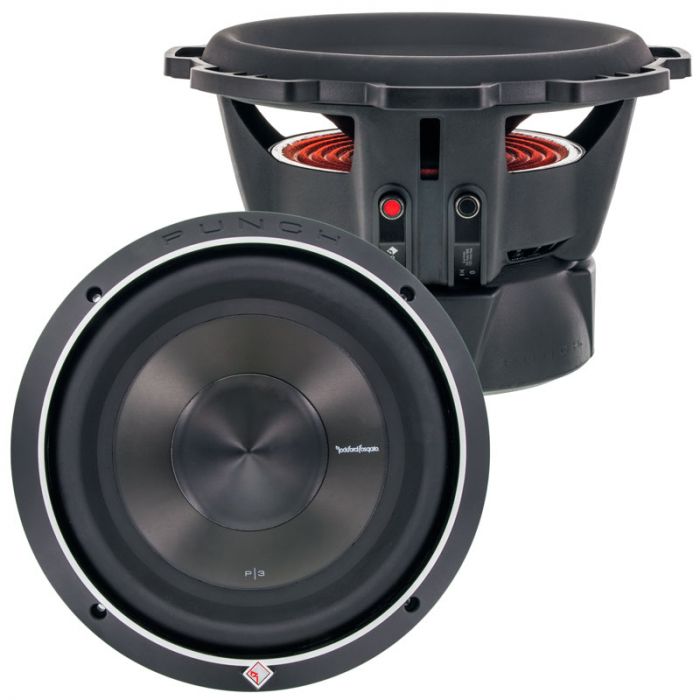

Rockford Fosgate P3D4-10 10" Punch P3 4-Ohm DVC Subwoofer

100% of 100
Out of stock

Key Features

  • 10" subwoofer featuring dual 4-Ohm voice coils and 500 Watts RMS of power handling
  • 10-AWG nickel plated push terminals
  • Anodized aluminum cones and dust caps along with a protective PVC textured magnet cover for optimal performance
  • Unique dual linear spider with embedded 16 AWG tinsel leads for more reliable performance
  • FlexFit basket for easy and better installation
  • StampCast basket that minimizes resonance
  • VAST technology that increases the subwoofer’s effective radiating cone area up to 25%
Unit Includes: Car subwoofer driver, optional grill insert, cast aluminum trim ring and instruction manual

Rockford Fosgate Punch Stage 3

Rockford Fosgate has taken their P3 subwoofers to the highest level. The Stage 3 subwoofers offer deep bass and unparallelled quality with the best features. These subwoofers accept up to 500 watts of power RMS, the reinforced Kevlar 10" cone provides excellent sound quality with minimal distortion. The new dual linear spider keeps the cone in perfect alignment and allows for high excursion levels. Checkout all of the features of the P3D4-10 10" subwoofer.

Anodized Aluminum Voice Coil Former

Heat is the #1 concern with subwoofers, dissipating the heat is the challenge. Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide excellent heat dissipation. Aluminum is an excellent heat-sink and allows the Rockford P3D4-10 subwoofer to stay cool during high volume conditions. The high-temperature voicecoil is designed with a Nomex reinforcement collar and meant to handle even the loudest volume levels.

CEA-2031 Compliant

The Rockford Fosgate P3D4-10 conforms to CEA-2031 industry standards. This means your 10" subwoofer has the capacity to handle power under continuous demand, not instantaneous power handling, that over time can damage voice coils.

VAST Surround

V.A.S.T. Stands for Vertical Attach Surround Technique, this technology significantly increases a subwoofer's effective radiating cone area up to 25%. This design allows for more output from an equivalent speaker size without increasing installation challenges. This is done by eliminating the large flat glue surface area (the landing), which allows the surround to be shifted for increased cone area. This improves efficiency and output dramatically.

Stitched Tinsel Leads

To reduce fatigue and prevent catastrophic damage from shorts the P3D4-10 10" subwoofer uses stitched tinsel leads. By using this technology fatigue on the leads is dissipated over a greater area which improves the life of the subwoofer and contributes to a robust design.

Rockford Fosgate P3D4-10 10" Punch P3 4-Ohm DVC Subwoofer:

  • 10 inch subwoofer with dual 4 ohm voice coils, allowing you to wire woofer as a 2 ohm or 8 ohm woofer
  • Kevlar fiber reinforced paper cone
  • Custom 10-AWG nickel plated push terminals
  • Rigid die-cast aluminum basket to keep perfect voice coil gap during high excursion levels
  • Vented spider cavity for keeping the voice-coil cool
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Protective PVC textured magnet cover
  • Double stack ferrite magnet structure
  • Optimized motor magnetics with extended pole piece and bumped back plate
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Extended pole piece and bumped vented backplate
  • Tall profile true Santoprene surround with VAST technology
  • Diamond cut cast aluminum trim ring with optional grille

Power Handling Max:
  • Maximum Power: 1000 Watts

Power Handling RMS:
  • 500 Watts nominal continuous power handling RMS

Quick Specs:
  • Nominal Impedance: Dual 4 -Ohm
  • Sensitivity: 82 dB @ 1Watt / 1meter

  • Mounting depth: 6.18 inches. (156.8 mm)
  • Cutout diameter: 9.13 inches. (232 mm)
More Information
Manufacturer Rockford Fosgate
Part Number P3D4-10
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 28 Hz
QES 0.63
QMS 5.00
QTS 0.56
RE 3.20 ohms
VAS 27.00 L
Xmax (millimeters) 13.9 mm
Sensitivity 82
Frequency Response 28 - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 301 - 500 Watts
Power Handling Peak 1000 watts
Shallow Mount Subwoofer No
Mounting Depth 6.00 Inches
Cutout Dimensions 9.00 Inches
Sealed Enclosure Recommended Size .59 ft3
Ported Enclosure Recommended Size 1.4 ft3
Color Black
Warranty 1 Year
UPC Code 780687332747
Return period 30 days
Exchange period 30 days
