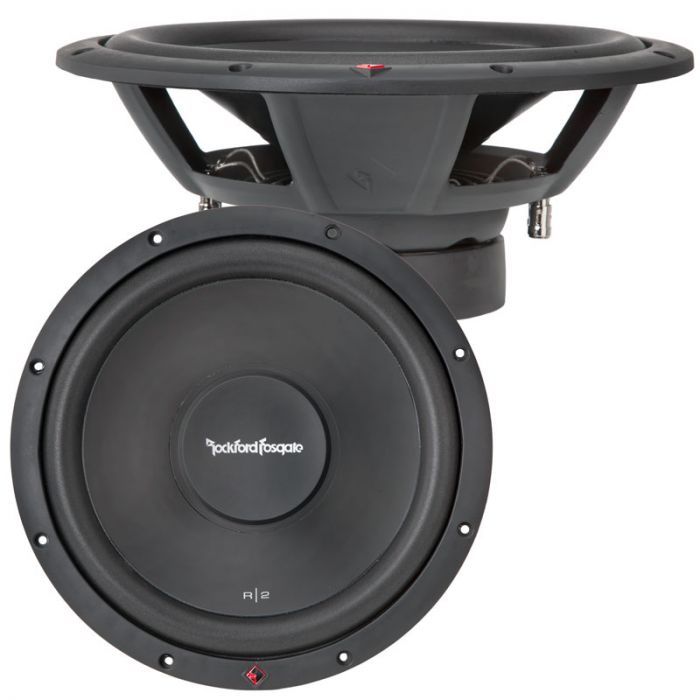

Rockford Fosgate R2D4-12 12" Prime R2 Series Subwoofer - Dual 4-Ohm Voice Coil

$85.99
Out of stock
SKU
R2D4-12

Key Features

  • 12” DVC subwoofer featuring dual 4-Ohm voice coils and 250 Watts RMS of power handling
  • 12 AWG compression terminals
  • StampCast basket with spider venting that keeps the motor cool
  • Anodized Aluminum Voice Coil Former for quick heat dissipation
  • Linear spider with embedded 16 AWG tinsel leads
  • Mica injected polypropylene cone for enhanced bass
  • Optimized for both vented and sealed enclosures
Includes: Car subwoofer driver, integrated PVC trim ring and Instruction manual.

Rockford Fosgate R2D4-12 12" Prime R2 4-Ohm DVC Subwoofer:

Features:
  • 12 inch subwoofer with dual 4 ohm voice coils, allowing you to wire woofer as a 2 ohm or 8 ohm woofer
  • 2 inch high-temperature voice-coil
  • 47.7 ounce magnet
  • Optimized for both sealed and vented enclosures
  • Anodized aluminum voice coil former
  • 12 AWG compression terminals
  • Mica injected polypropylene cone
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Linear spider with embedded 16 AWG tinsel leads


Power Handling Max:
  • Maximum Power: 500 Watts


Power Handling RMS:
  • 250 Watts nominal continuous power handling RMS


Quick Specs
  • Nominal Impedance: Dual 4 - Ohm
  • Sensitivity: 89 dB @ 1Watt / 1meter


Dimensions:
  • Mounting depth: 5.067 inches. (128.7 mm)
  • Cutout diameter: 11.25 inches. (285 mm)
More Information
Manufacturer Rockford Fosgate
Part Number R2D4-12
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 34.9 Hz
QES 0.66
QMS 7.33
QTS 0.60
RE 7.17
VAS 68.8 L
Xmax (millimeters) 6.5
Sensitivity 89 dB
Frequency Response 43 - 250 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 200 Watts
Power Handling Peak 500 watts
Shallow Mount Subwoofer No
Mounting Depth 5.00 Inches
Cutout Dimensions 11.00 Inches
Sealed Enclosure Recommended Size 1.02 ft3
Ported Enclosure Recommended Size 1.79 ft3
Color Black
Warranty 1 Year
UPC Code 780687332563
Return period 30 days
Exchange period 30 days
