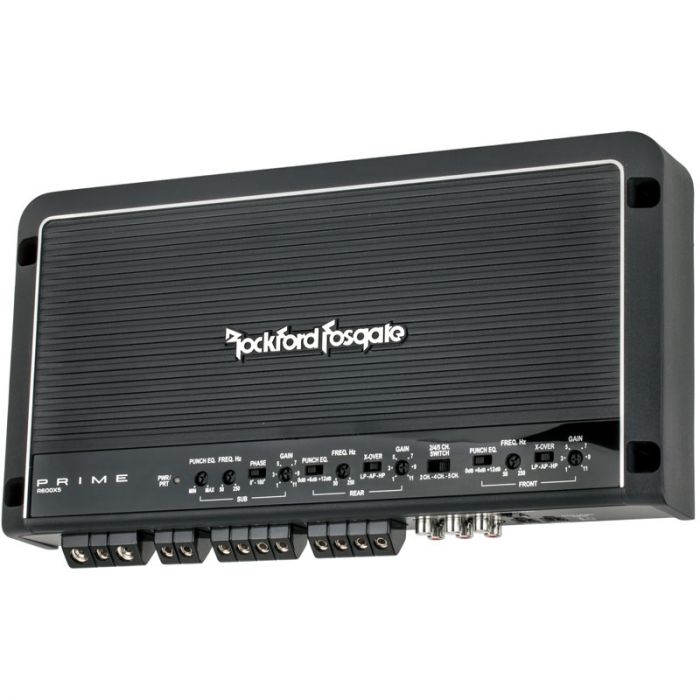

Rockford Fosgate R600X5 600 Watt 5-Channel Class D Car Amplifier
- It is a 5-Channel 600 Watts car amplifier.
- It has LED indicators for power and protect, and provides protection against short circuiting and over loading.
- It features extruded cast aluminum heatsink for effective heat dissipation.
- It has a Frequency Response of 20Hz to 20KHz +/- 1.0dB and is CEA-2006 compliant.
Unit includes: Car Amplifier, Mounting hardware, and Instruction manual
Rockford Fosgate R600X5 600 Watt 5-Channel Class D Car Amplifier:
- 600 Watt Prime Series 5-Channel Class AB/D Car Amplifier
- Top mounted controls
- MOSFET power supply for large power output
- LED indicators for Power and Protect
- Remote Punch Level Control - Sub Channel
- Separate Front, Rear and Sub Gain Control
- Provides two way protection circuitry, which includes overload and speaker short circuits
- Heavy-duty extruded cast aluminum heat sink for utmost heat dissipation
- Requires minimum 4 gauge power and ground wiring for installation
- CEA-2006 compliant amplifier
- Frequency Response: 20Hz to 20KHz +/- 1.0dB
Inputs and Outputs:
- 5 channel operation
- Nickel-plated RCA level inputs
- Input sensitivity is 450mV to 4V
- Screw Terminal 8 AWG speaker connections
- Screw Terminal 4 AWG power connections
Max Power Output:
- Total Power Output: 600 Watts
RMS Power Output:
- 4-Ohms: 50 Watts x 4 + 200 Watts x 1
- 2-Ohms: 75 Watts x 4 + 300 Watts x 1
- 150 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
Built in Crossover:
- Channel 1/2/3/4
- High Pass/Low Pass: 50 Hz - 250 Hz @ 12 dB/octave
- Sub Channel
- Low Pass variable: 50 Hz - 250 Hz @ 12 dB/octave
- Overall Dimensions: 1.98” (H) x 6.77” (D) x 13.19” (W)
|Amplifier Topology Class||Class AB|
|Number of Channels||5 Channel|
|Amplifier Bridging||Bridgable @ 4 ohms|
|Minimum Impedance in Bridged Mode||4 ohm|
|Minimum Impedance in Un-Bridged Mode||2 ohm|
|RCA Pre-amp Audio outputs||1 Pair|
|Preamp voltage||4 volts|
|Speaker level inputs||Yes|
|Bass Knob / Remote Gain||Optional|
|Built in Crossover||High-pass, Low-pass|
|Recommended Power Wire Gauge||8 Gauge|
