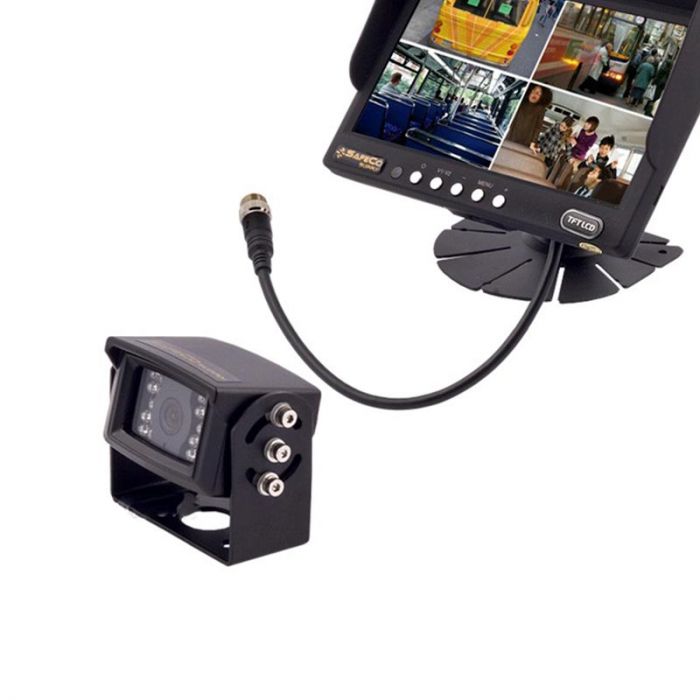

Safesight SC9002Q 7 inch Quad Screen LCD Monitor with (1) SC0104 Back up camera

Safesight SC9002Q 7 inch Quad Screen LCD Monitor with (1) SC0104 Back up camera

Safesight SC9002Q 7 inch Quad Screen LCD Monitor with (1) SC0104 Back up camera

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight SC9002Q Product Highlights

  • Commercial Grade Camera System
  • Heavy Duty 7" Quad Monitor
  • 4 Pin 60ft Cable
  • Heavy Duty Camera Gives High Resolution Video Feed While Still Being Able to Take Abuse
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: 7 inch LCD Monitor, Monitor power harness, Remote control, Pedistal stand, Camera and Cable

Safesight SC9002Q Universal 7 inch Quad Control LCD Monitor and RV Back Up Color CCD Camera System with 1 pc SC0104 Rear View Camera
  • SC9002Q: Comes with (1) pc SC0104 Camera
  • SC9002Q3: Comes with (1) pc SC0104 and (2) pcs SC0102 Cameras
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

  • Monitor
  • 7 inch TFT LCD High Resolution
  • 2 Video Inputs
  • PAL/NTSC auto switching
  • Resolution: 480x234xRGB
  • Power Supply: DC 12-24V
  • Heavy Duty Reversing
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • View Angle range; Left/Right - 65 degrees; Top - 40 degrees; Down - 15 degrees

  • Built In Quad Screen Control Module
  • Single, Split and Quad View Modes
Safesight SC0104 Weatherproof 1/3 inch Sony CCD Back Up Camera
  • High Resolution Back Up Camera with infrared illumination
  • Selectable reverse image for rear view or front view - Rear mounted set screw changes mode
  • 1/3" Sony CCD Image Sensor
  • Built-in Microphone
  • IR Infrared 18 LEDs for Night Vision 32 ft distance
  • Aluminum Alloy housing with powder coated finish
  • Adjustable vertical axis with 6 retaining screws
  • 4 Pin Connector - RCA Adapters are sold separately
  • Available in White see part number SC0104MW
    Image sensor specifications:
  • 600 TV lines or resolution
  • Effective Pixels: 537 x 505
  • 120° Wide Angle Camera - Blind Spot reduced
  • Minimum Illumination: 0 Lux with IR LED's On
  • Operating Temperature: -20° ~ +70° C (RH 95% Max)
  • Lens: F = 2.5mm/ 1.7mm
  • Power Supply: DC 12V
  • Waterproof Rating: Ip67
  • Dimensions: 3-5/8" (W) x 2-5/8" (D) x 2-5/8" (H)

Technical Specifications

Manufacturer Safesight
Part Number SC9002Q
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 480 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 300 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Modulation NTSC and PAL
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included No
Audio Video inputs 4 Video Input
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image No
Camera Sensor type CCD
Camera sensor diameter 1/3 inch
Viewing Angle 120 degrees
Parking grid lines No
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered No
Case included No
Connector Type 4 Pin Connector
Wireless Transmission No
Color Black
Operation Voltage 12 - 24 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
