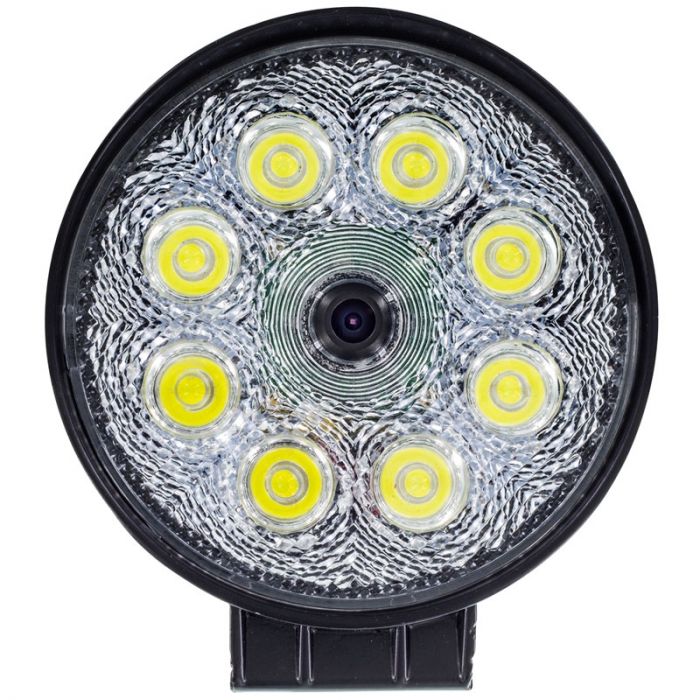

Safesight TOP-SS-RC3011M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light

Safesight TOP-SS-RC3011M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light

Safesight TOP-SS-RC3011M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light

More Views

Safesight
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-RC3011M Product Highlights

  • 1/3" CMOS Image Sensor
  • 170° Wide Angle Camera
  • Round LED light housing
  • Reverse image for rear view
  • Magnet or permanent mount
  • 8 LEDs for illumination up to 150 foot distance
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Back up camera, Mounting hardware, and Instruction manual

Safesight TOP-SS-RC3011M 1/3 inch CMOS Back Up Camera with Round 8 LED Integrated Light
    Features:
  • High Resolution Back Up Camera with (8) LED integrated Light
  • Magnet or permanent mount
  • Reverse image for rear view or front view
  • 1/3" CMOS Image Sensor
  • System: NTSC/PAL
  • 520 TV lines
  • Effective Pixels: 976 x 592
  • 170° Wide Angle Camera
  • Minimum Illumination: 1 Lux and 0 Lux (LED On)
  • 8 LEDs for illumination up to 150 foot distance
  • Operating Temperature: -20°~ +70° C (RH 95% Max)
  • Lens: F = 1.7mm
  • Power Supply: DC 12V
  • Waterproof Rating: Ip68
  • Shell Material Aluminum Alloy
  • Round style casing
  • 4 Pin Connector - RCA Adapters are sold separately
  • Illumination LED power consumption: 150 mA
    Dimensions:
  • Overall dimensions: 4-1/2" (W) x 1-3/4" (D) x 5-1/2" (H)

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-RC3011M
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera diameter 1/3 inch
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Connector Type 4 Pin Connector
Modulation NTSC and PAL
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Overall Height 5.5 Inches
Overall Length 1.75 Inches
Overall Width 4.5 Inches
Warranty 1 Year
UPC Code No
