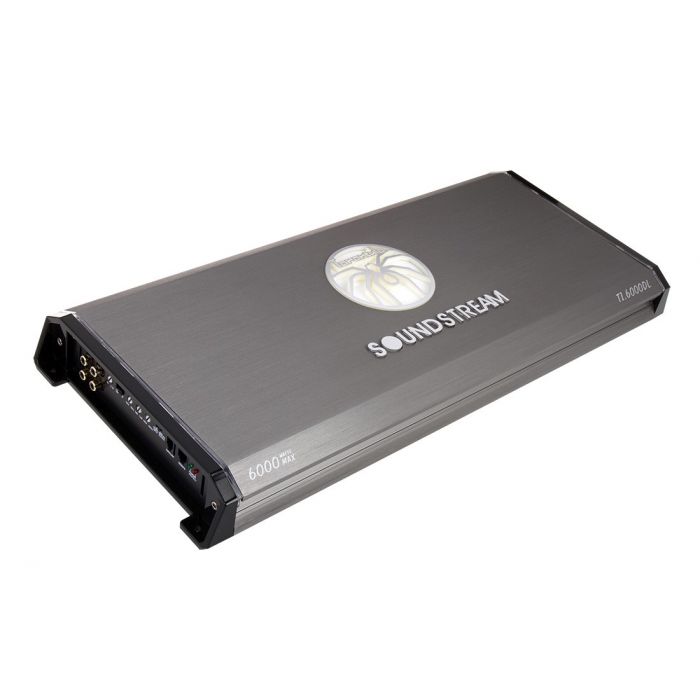

Soundstream T1.6000DL Tarantula Electro 6000 Watt 1 Channel Class D Amplifier

Soundstream T1.6000DL Tarantula Electro 6000 Watt 1 Channel Class D Amplifier

Soundstream T1.6000DL Tarantula Electro 6000 Watt 1 Channel Class D Amplifier

More Views

Soundstream
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Soundstream T1.6000DL Product Highlights

  • 6000 Watt 1 Channel Class D Amplifier
  • 2-ohm Stereo and 4-ohm Bridged Impedance Stability
  • Continuous Power Output (4 Ω): 800 Watts RMS x 1
  • Continuous Power Output (2 Ω): 1400 Watts RMS x 1
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 2500 W x 1
  • Continuous Power Output (0.5 Ω, ≤ 1% THD+N): 3000 W x 1
  • Includes Bass Control Knob
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: 1 Channel Amplifier, Installation Hardware, Bass control, Bass control cable, and Instruction Manual

Soundstream T1.6000DL Tarantula Electro 6000 Watt 1 Channel Class D Amplifier
    Features:
  • Soundstream T1.6000DL 6000 Watt 1 Channel Class D Amplifier
  • Multi-color RGB LED Illumination Accent Lighting
  • Solid Color, Flashing, Random, or Slow-Motion Color Change
  • Hybrid Aluminum Alloy Heatsink for Optimum Dissipation
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • LED power (Blue) and protect (red) indicators
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Nickel-plated screw terminals
  • 1-channel operation
  • 0-gauge power and ground leads and a 250-amp fuse recommended
  • Frequency Response: 10Hz to 300 Hz
  • Signal to noise ratio: >104dB
  • Total Harmonic Distortion (THD): <0.1% (100 Hz)
    Pre-Amp features:
  • Variable Bass Boost (0 - 12 dB)
  • Variable Low-pass electronic crossover (40 - 220 Hz)
  • Variable Subsonic electronic crossover (15 - 50 Hz)
  • Variable 180° Phase Shift to match polarity of system speakers
    Inputs and Outputs:
  • One-channel operation (2-Channel input)
  • Nickel-plated RCA level inputs and outputs
  • Low-level thru-pass output to Daisy chain multiple amplifiers
  • Input Sensitivity Low level: 200mV - 6.0 Volts
    Max Power Output:
  • Total Power Output: 6,000 Watts
    RMS Power Output:
  • Continuous Power Output (0.5 Ω, ≤ 1% THD+N): 3000 W x 1
  • Continuous Power Output (1 Ω, ≤ 1% THD+N): 2500 W x 1
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 1400 W x 1
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 800 W x 1
    Strapable features:
  • Combine two amplifiers together for the ultimate power output
  • Master / Slave connections for audio and system control
  • Up to 12,000 watts of output
  • 2 Ohm stable in strap mode
    Dimensions:
  • Overall Dimensions: 2-1/2" (H) x 20-1/2" (L) x 9" (W)

Technical Specifications

Manufacturer Soundstream
Part Number T1.6000DL
Amplifier Topology Class No
Number of Channels 1 Channel
Total RMS Power at 1 ohm 2500 Watts
Total RMS Power at 2 ohm 1400 Watts
Total RMS Power at 4 ohm 800 Watts
RMS Output per Channel (x1 at 4 ohms) 800 Watts
RMS Output per Channel (x2 at 4 ohms) 0 Watts
RMS Output per Channel (x4 at 4 ohms) 0 Watts
Total Peak Power Output 6000 Watts
Amplifier Bridging Not Bridgable
Minimum Impedance in Bridged Mode Not Bridgeable
Minimum Impedance in Un-Bridged Mode 0.5 ohm
Strappable Amplifier No
Strappable Power Output Yes
Frequency Response N/A
Signal to noise ratio 0dB
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 200 mV - 6 V
Speaker level inputs No
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover No
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 0 Gauge
Overall Height 2.5 Inches
Overall Length 0 Inches
Overall Width 9 Inches
CEA2006 Compliant No
UPC Code 709483049925
