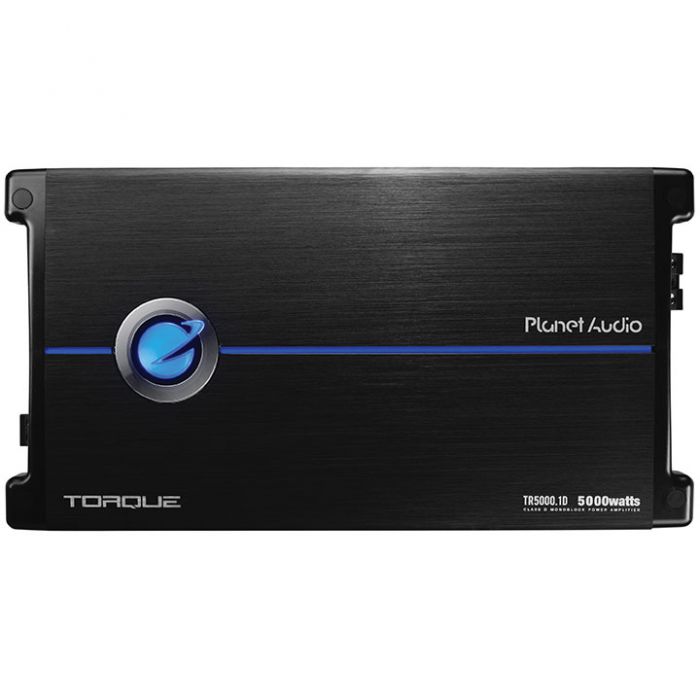

Planet Audio TR5000.1D Torque Series 5000 Watt Class D Monoblock Car Audio Amplifier

$269.99
In stock
SKU
TR50001D

Key Features

  • Planet Audio TR5000.1D Torque Series Monoblock Class D Car Amplifier
  • 4-Ohms: 938 Watts x 1
  • 2-Ohms: 1875 Watts x 1
  • 1-Ohms: 3750 Watts x 1
  • Blue illuminated torque logo
  • Remote subwoofer level control
  • Low level inputs
  • Variable bass boost
  • Strappable amplifier for double the output with less current consumption (Requires another amplifier)
Unit includes: Class-D Power amplifier, Bass control, Mounting hardware, and Instruction manual

Planet Audio TR5000.1D Torque Series 5000 Watt Class D Monoblock Car Audio Amplifier

Features:
  • Torque Series Monoblock Class D Car Amplifier
  • Pulse Width Modulated MOSFET Power supply
  • Blue illuminated Planet Audio Logo
  • Includes subwoofer level controller
  • Strappable amplifier for double the output with less current consumption (Requires another amplifier)
  • 2 Ohm stable when strapped together (Requires another amplifier)
  • 1 Ohm stable
  • 18dB Variable Bass Boost:
    • Variable Boost: 0-18 dB
    • Center Frequency: 45 Hz
  • Internal Crossovers:
    • Low-pass: 5Hz - 250kHz at 12dB per octave
    • Subsonic: 15Hz - 40kHz at 12dB per octave
  • Audio inputs:
    • 2 Channel RCA inputs accepts up to 8 volt input signals
    • Input sensitivity selector switch (100 mV - 2 Volts / 2 Volts - 8 Volts)
    • Input accepts RCA low level or High level (Direct speaker connection up to 8 volts)
    • Kicker KISL speaker level to RCA connection cable makes speaker level connection very easy
  • LED power and protect (red) indicator
  • 180° Phase control
  • Single speaker terminals
  • Black Anodized Aluminum Chassis
  • Frequency Response: 20Hz to 250 kHz
  • 0 gauge power and ground wiring is required for installation
  • Recommended installation kit: 0 Gauge amplifier installation kit
  • Recommended installation kit: 4 Gauge amplifier installation kit
  • TR5000.1D Instruction manual
  • Fuse rating: 120 amps total (3 x 40 amp ATC)
Inputs and Outputs:
  • Single-channel operation
  • Nickel-plated RCA level inputs and outputs
  • Input Sensitivity High level: 250mV-8V
Max Power Output:
  • Total Power Output: 5000 Watts
  • 4-Ohms: 938 Watts x 1
  • 2-Ohms: 1875 Watts x 1
  • 1-Ohms: 3750 Watts x 1
  • 2-Ohms: 7500 Watts x 1 (Strapped Amplifiers)
RMS Power Output:
  • 4-Ohms: 1250 Watts x 1
  • 2-Ohms: 2500 Watts x 1
  • 1-Ohms: 5000 Watts x 1
  • 2-Ohms: 10000 Watts x 1 (Strapped Amplifiers)
Dimensions:
  • Overall Dimensions: 2-1/4" (H) x 18-1/8" (L) x 9-5/8" (W)
More Information
Manufacturer Planet Audio
Part Number TR50001D
Amplifier Topology Class Class D
Number of Channels 1 Channel
Total RMS Power at 1 ohm 3,750.00
Total RMS Power at 2 ohm 1,875.00
Total RMS Power at 4 ohm 938.00
Total Peak Power Output 5,000.00 (Watts)
Amplifier Bridging Not Bridgable
Minimum Impedance in Un-Bridged Mode 1 ohm
Strappable Amplifier No
Strappable Power Output 10000 Watts
RCA Pre-amp Audio inputs 1 Pair
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage 100 mV - 8 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover Low-pass, Sub-sonic
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 0 Gauge
CEA2006 Compliant No
UPC Code 636210106104
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Planet Audio TR5000.1D Torque Series 5000 Watt Class D Monoblock Car Audio Amplifier
Your Rating
Customer Questions
No Questions
Have a question? Go ahead and ask anything. We are here to help. Please login to ask a product question.

Car amplifier installation

We show you the complete process of installing a Pioneer Double DIN car stereo in a Chevy truck. The in-depth video shows the installation of the interface, and steering wheel control.

Amplifier Installation basics

Let's start with the basics of adding or installing a car amplifier. First you will need to plan your installation and power wiring, this usually is the most difficult part of the installation for most.

How to choose the proper wire size explained

What size power wire do I need for my amplifier? Well, that depends on the length of the wire and the power consumption of the amplifier. We walk you through how to choose the right gauge wire and wire material depending on your amplifier installation requirements.

How to wire speakers and subwoofers to your new amplifier

In our third video we demonstrate the various ways you can wire speakers and amplifiers to all types of amplifiers. There different ways to do this depending on the type of amplifier you choose to purchase.

What is gain? How do I set it properly?

In our fourth video we demonstrate how to set the gains on your amplifier to prevent damage to your speakers, subwoofers and even possibly your new amplifier. Using a portable oscilloscope we show you how to set your gains.
