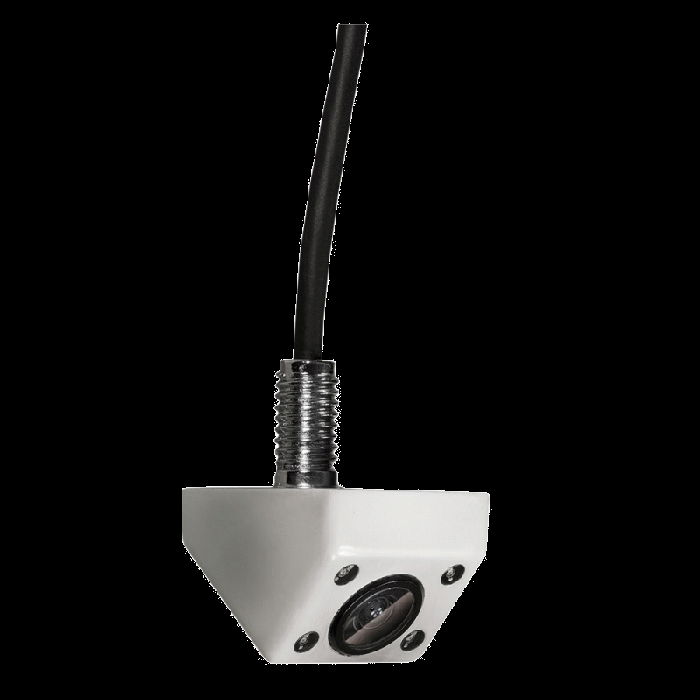

iBeam TE-MIIRW Micro Reverse Backup Camera for lip or tailgate mounting

Excellent picture quality can come from a very small camera, this 1 inch by 1 inch micro camera can be mounted on any overhang; near the license plate, on a front bumper lip, even the tail gate handle facing down.

The iBeam TE-MIIRW has the unique ability to be mounted in virtually any orientation with its advanced image processing. With reverse image and Image flip cut wires, you can mount this camera in a top down or conventional lip from the top orientation and have a proper image on your display.

Features
• Universal surface mount back up camera with flexible mounting options
• 1/3" Color CMD Image sensor
• Resolution 500 TV lines
• Effective pixels: 720 x 480
• AGC: auto White balance: auto
• Electronic shutter: 1/60 - 1/15,000 second
• Current consumption: Max 50mA. Power supply 12V DC
• .1 Lux light sensitivity
• 4 - Infrared LED's for nightvision
• White aluminum housing
• IP68 rated

Viewing angles:
• 175° diagonal viewing angle
• 138° horizontal viewing angle
• 108° vertical viewing angle

Image control:
• Advanced image processing with three cut wires for full control of image orientation and grid lines
• Green loop - Parking grid line control
• White loop - Vertical Image flip (top to bottom)
• Blue loop - Horizontal Image flip (left to right)
• Can be mounted vertically facing down (Top down view)
• Can be mounted horizontally with the thread facing up or down (Front or Rear camera)

Dimensions:
• Dimensions of camera (with threads): 1" (W) x 1" (D) x 1-3/8" (H)
• Camera Dimensions (without threads): 1" (W) x 1" (D) x 3/4" (H)
