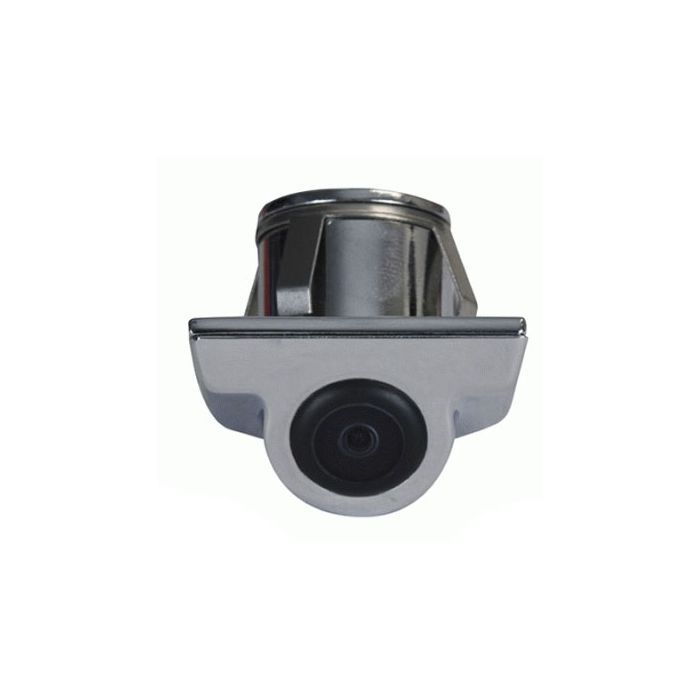

iBeam TE-CSC Chrome Micro Reverse Backup Camera for lip mounting

iBeam TE-CSC Chrome Micro Reverse Backup Camera for lip mounting

iBeam TE-CSC Chrome Micro Reverse Backup Camera for lip mounting

More Views

iBeam
Ships Free!

Overall Rating 0 (Based on 0 reviews)

iBeam TE-CSC Product Highlights

  • Partial recessed back up camera with fixed 45° view angle
  • 170° wide viewing angle
  • Cut-able wires allow you to change between reverse and non reverse for front or rear use
  • Cut-able wires allow you to change between guide lines and no guide lines
  • Resolution 420 TV lines
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: Reverse back up camera, Hole saw, Wiring harness, Retaining nut, and Instruction manual

Safesight TOP-SS-421M-CC Chrome Micro Reverse Backup Camera for lip mounting features:
    Features:
  • Partial recessed back up camera with fixed 45° view angle that is designed to be mounted on an overhang near the licences plate
  • Cut-able wires allow you to change between reverse and non reverse for front or rear use
  • Cut-able wires allow you to change between guide lines and no guide lines
  • 170° wide viewing angle
  • 1/4" color CMOS sensor
  • Resolution 420 TV lines
  • Pixel resolution: 656 x 492
  • IP67 rated
  • 2.7mm lens
  • Scanning system: 2:1 interface
  • AGC: auto White balance: auto
  • .1 Lux light sensitivity
  • One year warranty parts & labor
  • Chrome housing
    Quick specs:
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 150mA. Power supply 12V DC
    Dimensions:
  • Overall Dimensions of camera: 1-3/8" (W) x 1-3/8" (D) x 1-1/2" (H)
  • Installed Dimensions of camera: 1-3/8" (W) x 1-3/8" (D) x 3/4" (H)
  • Drill Diameter: 7/8" or 22.8mm

Technical Specifications

Manufacturer iBeam
Part Number TE-CSC
Camera Sensor type CMOS
Back up camera type Top down Camera
License Plate Camera Type No
Camera diameter 2.8 mm
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Selectable
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Chrome
Overall Height 1.5 Inches
Overall Length 1.38 Inches
Overall Width 1.38 Inches
Warranty 1 Year
UPC Code 086429274857
