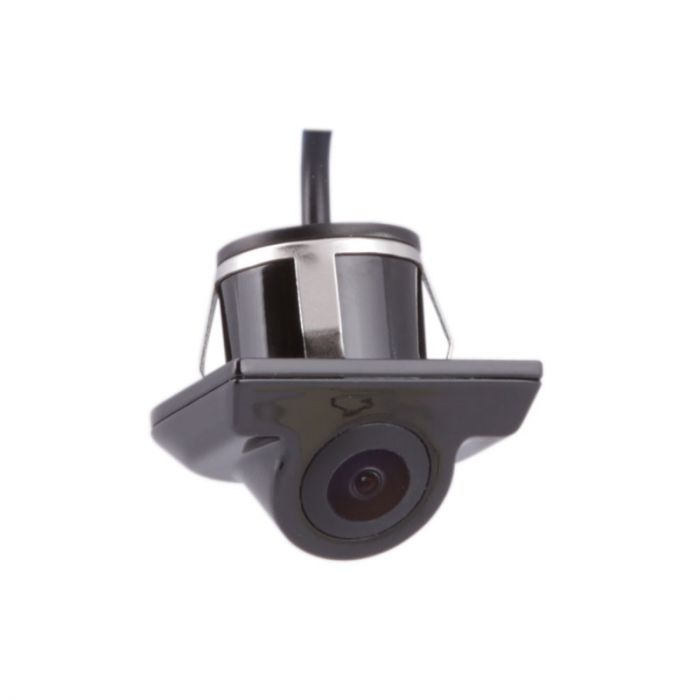

Accelevision RVC1150 OEM Flush mount camera 4 angle capable

Rating:
78% of 100
$139.99
In stock
SKU
RVC1150

Key Features

  • Designed to be mounted in lips or overhangs near license plate
  • 170 degree viewing angle
  • High gloss black finish
  • Can be ordered in 4 different mounting types
Unit includes: Reverse back up camera, RCA cable, Drill bit, DC power plug, and Instruction manual

Accelevision RVC1150 OEM Flush mount camera 4 angle capable
    Features:
  • Designed to be mounted in lips or overhangs near license plate
  • 120 Degree fish eye lens with digital image processor for seeing everything behind you
  • Switch between reverse and non reverse image with cut-able pigtail
  • Image Sensors: 2.96mm Color CMD
  • Lens Angle: 120°
  • Resolution: 420 Tv Lines
  • Total Pixels: 580 X 540
  • Ip Rating: 67
  • Min. Illumination: .5 Lux
  • Auto Image Adjustment
  • Operating temperature: -20 C - 60 C
  • Video Output: 1.0 Vpp-75 Ohm
  • Power Supply: Dc 12V
  • 17Ft Male To Male Rca Video Cable
  • Waterproof
    Dimensions:
  • Dimensions: Total height: 1-3/8" (H) , Exposed height: 3/4" (H) X 1-3/8" (W) X 1-1/4" (D)
  • Drilling Diameter: .825"
    Cut wire for rear cameras:
  • Green wire: Guide lines​​​​ (Cut the wire to show guide lines)​
  • White wire: Image Flip (Cut the wire for front underhung image, leave the wire connected for underhung image)​
    Cut wire for side cameras:
  • Green wire: Guide lines​​​​ (Cut the wire to show guide lines)​
  • White wire: Image Flip (Cut the wire for left image, leave the wire connected for right image)​

**Note
This item is a single camera that can be ordered in several configurations, the pictures represent the different angles the camera can be ordered in, you will receive one camera only

More Information
Manufacturer Accelevision
Part Number RVC1150
Camera Sensor type CMD
Back up camera type Top down Camera
Camera diameter 2.8mm
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Accelevision RVC1150 OEM Flush mount camera 4 angle capable
Your Rating
Customer Questions
How do I add side view cameras to a stereo with only one input?

This can be easily done with a switcher and some wiring modifications. We will show you how.

How do I add a cameras or a multi-camera system to my factory radio display?

This can be done by using a screen interface or add-a-camera harness.

Have a question? Go ahead and ask anything. We are here to help. Please login to ask a product question.
