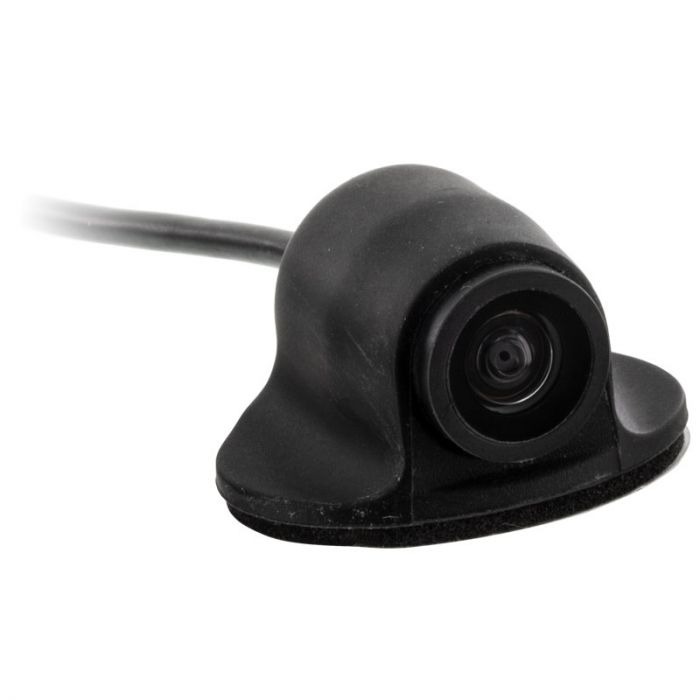

iBeam TE-SRBC Flexible Rubber Micro Front or Reverse Backup Camera

$49.99
In stock
SKU
TE-SRBC

Key Features

  • Universal rubber mount mount reverse back up camera
  • Can be used for front or rear camera
  • Optional three color parking grid lines
  • CMOS image sensor
  • 170° wide viewing angle
  • Black housing
Unit includes: Reverse back up camera, Wiring harness, and Instruction manual

Beautifully small

Excellent picture quality can come from a very small camera, this micro camera can be mounted on any overhang; near the license plate even the rear view mirrors, you can mount this camera anywhere.

iBeam reputation

iBeam is very respected brand in car back up camera systems. The TE-SRBC back up camera offers iBeam quality in a package that is very versatile


iBeam TE-SRBC Flexible Rubber Micro Front or Reverse Backup Camera
    Features:
  • Universal rubber mount mount reverse back up camera
  • Housing is completely rubber and perfect for mounting on contoured surfaces
  • 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
  • Built in three color parking grid lines for visual representation of distance to another vehicle or object
  • Mounting area must be mounted facing up
  • 170° wide viewing angle
  • 2.8 mm color CMOS sensor
  • IP67 rated
  • Resolution 420 TV lines
  • Active pixels: 656 (H) x 492 (V)
  • Image sensor: CMOS7070
  • Operating Temperature: -20° C - 70° C
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 100mA. Power supply 12V DC
  • .1 Lux light sensitivity
  • Black color housing
    Dimensions:
  • Dimension: 1-3/8" (W) x 1" (D) x 13/16" (H)
More Information
Manufacturer iBeam
Part Number TE-SRBC
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
Camera diameter 2.8mm
Viewing Angle 170 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Black
Overall Height 0.81 inches
Overall Length 1.00 inches
Overall Width 1.38 inches
Warranty 1 Year
UPC Code 086429274925
Return period 30 days
Exchange period 30 days
