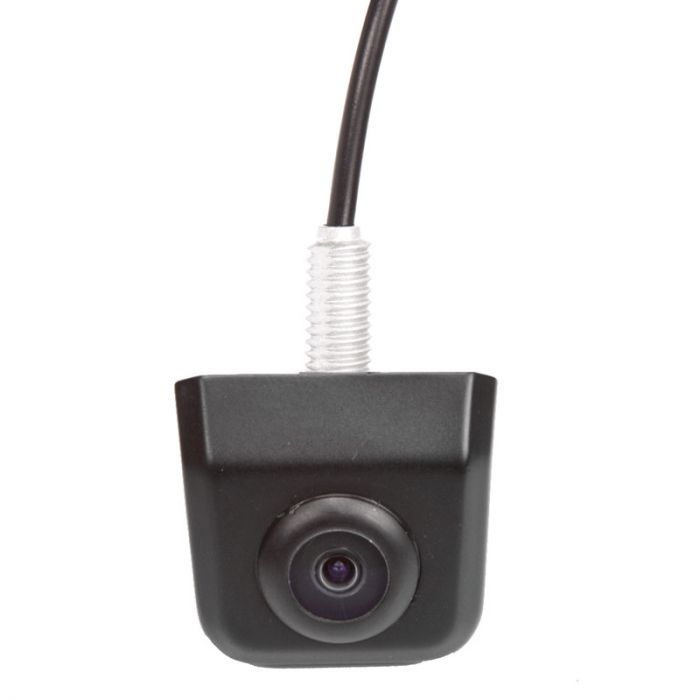

Safesight TOP-SS-421MB Micro Reverse Backup Camera for lip mounting
More Views
Safesight
Free Shipping on orders $50+
Safesight TOP-SS-421MB Product Highlights
- Unit attaches to a lip using a retaining nut from the top, great for use near license plate area
- 1/3" OV Color CMD 8341 Image sensor
- 170° wide viewing angle
- Black, also available in white
- Can be used as a front camera
- Selectable parking grid lines
Frequently Bought Together
Overview
Unit includes: Reverse back up camera, Wiring harness, RCA Extension cable with bare lead, Retaining nut, and Instruction manual
Beautifully small
Safesight TOP-SS-421MB Micro Reverse Backup Camera for lip mounting features:
Beautifully small
Excellent picture quality can come from a very small camera, this micro camera can be mounted on any overhang; near the license plate, on a front bumper lip, even the rear view mirrors, you can mount this camera anywhere.
Safesight reputationSafesight is the most respected brand in car back up camera systems. The TOP-SS-421M back up camera offers Safesight quality in a package that is very versatile
Safesight TOP-SS-421MB Micro Reverse Backup Camera for lip mounting features:
- Features
- Unit attaches to a lip using a retaining nut from the top, great for use near license plate area
- 170° wide viewing angle
- 1/3" OV Color CMD 8341 Image sensor
- Unit attaches to a lip using a retaining nut from the top, great for use near license plate area
- 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
- Resolution 600 TV lines
- Effective pixels: 860 x 576
- AGC: auto White balance: auto
- Electronic shutter: 1/60 - 1/15,000 second
- Current consumption: Max 150mA. Power supply 12V DC
- .1 Lux light sensitivity
- Black aluminum housing
- IP68 rated
- Dimensions:
- Dimensions of camera: 1-1/4" (W) x 1-3/8" (D) x 1-3/4" (H)
- Camera Dimensions when mounted: 1-1/4" (W) x 1-3/8" (D) x 1" (H)
Technical Specifications
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-421MB |
| Camera Sensor type | CMOS |
| Back up camera type | Surface Mount Camera |
| License Plate Camera Type | No |
| Camera sensor diameter | 2.8mm |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Selectable |
| Parking grid lines | Selectable |
| Infrared Illumination | No |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12 - 15 Volt DC |
| Battery Powered | Hard wired |
| Cigarette Lighter Cord Included | No |
| Color | Black |
| Overall Height | 1 Inches |
| Overall Length | 1.33 Inches |
| Overall Width | 1.25 Inches |
| Warranty | 1 Year |
| UPC Code | No |
Write Your Own Review
Ask questions receive answers.
Have a question? Go ahead and ask anything. We are here to help.
Please login to ask a product question
Installation Videos & Manuals
We show you the entire process of how to install a back up camera system in a Toyota Sienna.
There are a couple of ways to install and wire a back up camera system. We go through the different methods and explain the pro's and cons of each method. Then we take you through the process of removing the taillight and how to test for power. We explain vehicles with light control modules and the problems they pose. Then we make the connection at the taillight to a back up camera system.
We take you through all of the different back up cameras and system. Ww show you the differences and how to pick the right system for you.
We show you how to install any backup camera by breaking the installation down to 5 easy components and steps:
- Monitor
- Monitor cable
- Backup camera
- RCA cable
- DC power cord
