Safesight TOP-SS-TRANSIT-1 Ford Transit Van Back Up Camera System
$278.98
In stock
SKU
TOP-SS-TRANSIT-1
Expert Knowledge
Talk to a specialist
- 4.3" Digital TFT LCD Monitor
- Ultra bright LCD display for viewing during the day
- Factory fit back up camera for Ford Transit Passenger or Cargo Van
- Infrared illumination for night vision
- Camera is ball mounted and can be adjusted in overhang housing
Monitor includes: Rearview mirror monitor, Glass mount, Wire harness, Wireless remote control, Mounting bracket arm, Wire cover and Instruction manual
Camera includes: Back up camera, Adhesive seal, 25 foot RCA cable, 10 foot DC power cable, and Instruction manual
Safesight TOP-SS-TRANSIT-1 Ford Transit Van Back Up Camera System
Features:
Inputs and Outputs:
Specifications:
Dimensions:
Camera includes: Back up camera, Adhesive seal, 25 foot RCA cable, 10 foot DC power cable, and Instruction manual
Safesight TOP-SS-TRANSIT-1 Ford Transit Van Back Up Camera System
Features:
- 4.3" Digital TFT LCD Monitor
- Ultra bright LCD display for viewing during the day
- Auto dimming LCD for reduced brightness when used at night
- No dead spot in rear view mirror when LCD display is off, perfect mirror
- Glass mount installation for OEM look
- Fits nearly every vehicle
- 2 - RCA Video inputs
- Automatic reverse trigger
Inputs and Outputs:
- 2 - RCA Video inputs
- 12 volt positive trigger wire
Specifications:
- Video Resolution: 480 x 272
- Working Voltage: DC 12V
Dimensions:
- Mirror dimensions: 10-3/4" (W) x 3-1/4" (H) x 1" (D)
- Maximum opening size for clip on: 2-3/4" (H)
- Glass mount: 3-1/2" (L)

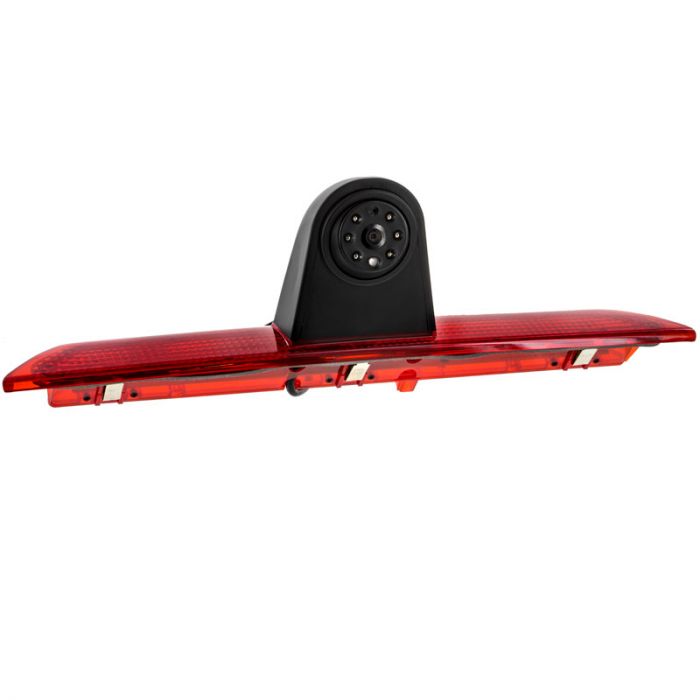

- Camera Features:
- Factory fit for 2014 and up Ford Transit Cargo Van
- 2014 - and up Ford Transit 150/250/350
- 4-Pin connector for back up camera
- Utilizes OEM reflector and factory brake lights for easy installation of factory brake light components
- No drilling or modification neccessary, mounts in exisiting location
- 6 Infrared LED's of nightvision illumination
- Includes 4-Pin to RCA adapter for use with non-commercial grade monitors
- Waterproof IP68
- 170° viewing angle for extra wide angle
- 1/3" Sony CCD camera sensor
- NTSC video signal
- Effective pixels: 510 x 492
- 0 Lux with IR
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-SS-TRANSIT-1 |
| Vehicle Year | 2014, 2015, 2016, 2017 |
| Vehicle Brand | Ford |
| Vehicle Model | Transit, Transit 1500, Transit 2500, Transit 3500, Transit 4500 |
| Return period | 30 days |
| Exchange period | 30 days |
