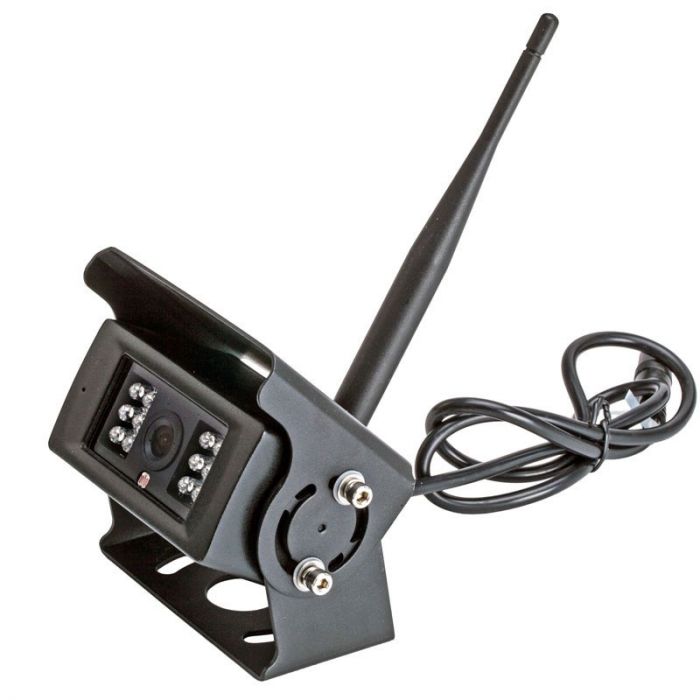

Safesight TOP-SS-502HW Digital Wireless back up camera for SC9004DQ

$181.99
In stock
SKU
TOP-SS-502HW

Key Features

  • Sony 1/3" CCD image sensor back up camera
  • 2.4GHz Digital FHSS hopping and pairing technology
  • Resolution: 510 x 492 pixels
  • 120 degree wide viewing angle camera
  • IR Infrared with 12 LEDs for Night Vision and up to 45 ft distance

Unit includes: Back up cameras with Wireless Transmission, and Mounting hardware

Safesight TOP-SS-502HW Digital Wireless back up camera for SC9004DQ

    Digital Wireless Technology

This camera system utilizes 2.4 GHz Digital FHSS code hopping and pairing technology for no static or interference guaranteed. This is the future in wireless technology, a digital broadcast signal that completely eliminates the loss of signal often found on standard analog wireless camera systems. The cameras are paired with the monitor and use a rolling code to eliminate eavesdropping and breaches of security.



Wireless Digital Camera
  • Sony 1/3" CCD image sensor back up camera
  • 2.4GHz Digital FHSS hopping and pairing technology
  • Resolution: 510 x 492 pixels
  • NTSC or PAL video capable
  • 120 degree wide viewing angle camera
  • IR Infrared with 12 LEDs for Night Vision and up to 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Power Supply: DC 12V - 24V
  • Waterproof Rating: Ip69k
  • Shell Material Aluminium Alloy
Camera Dimensions
  • Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
  • With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)


Note: This item is intended to be used as a back up camera, if you are intending on using this item as a continuously on monitoring system vehicle speed cannot exceed 35 MPH as the system may experience delays in signal and may not be viewable, this is normal operation.

More Information
Manufacturer Safesight
Part Number TOP-SS-502HW
Camera Sensor type CCD
Back up camera type Surface Mount Camera
Viewing Angle 120 degrees
Wireless Transmission Digital wireless
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Modulation NTSC and PAL
Operation Voltage 12-24 Volt DC
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Safesight TOP-SS-502HW Digital Wireless back up camera for SC9004DQ
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?
This can be done by using a screen interface or add-a-camera harness.
