Safesight SC9004DQ Digital Wireless Quad screen back up camera system with three wireless cameras

Safesight SC9004DQ Digital Wireless Quad screen back up camera system with three wireless cameras

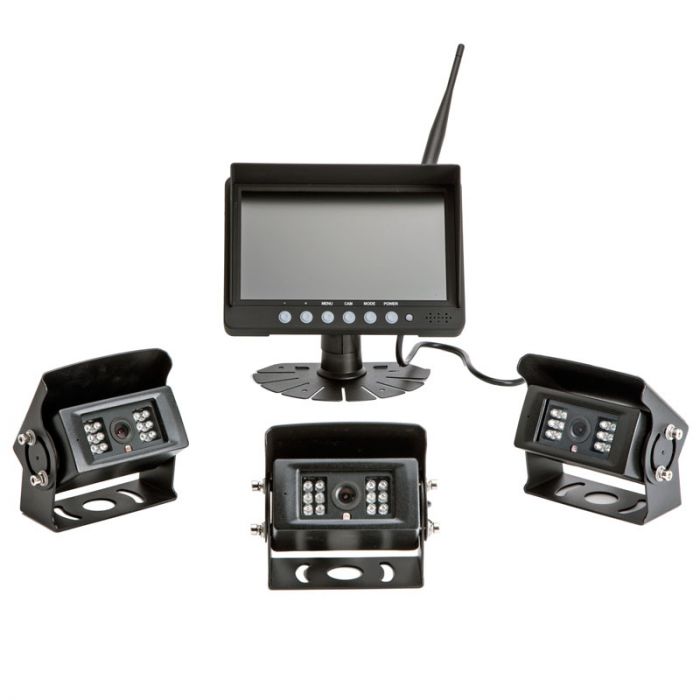

Safesight SC9004DQ Digital Wireless Quad screen back up camera system - Main

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Safesight SC9004DQ Product Highlights

  • Digital Wireless Technology - Not subject to common interference and static, much better than Analog wireless systems
  • 7 inch LCD display with optional sun shade
  • (3) 1/3 inch Sony CCD cameras
  • 420 TV lines of resolution
  • Built in microphone and speaker
  • 300 foot range
  • Quad screen capable, forth camera is optional

Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


Unit includes: 7 inch LCD monitor/w wireless receiver, Wiring harness, 3 - Back up cameras with Wireless Transmission, Remote Control Instruction manual, and Connectors

Safesight SC9004DQ Digital Wireless Quad screen back up camera system with three cameras

    Digital Wireless Technology

This camera system utilizes 2.4 GHz Digital FHSS code hopping and pairing technology for no static or interference guaranteed. This is the future in wireless technology, a digital broadcast signal that completely eliminates the loss of signal often found on standard analog wireless camera systems. The cameras are paired with the monitor and use a rolling code to eliminate eavesdropping and breaches of security.

  • 7 inch LCD monitor/w wireless receiver
  • Quad screen processor
  • Wireless Remote Control
  • (3) Night vision CCD cameras with integrated wireless transmitter
  • Optional 4th camera can be purchased separately
  • Digital signal w/ no interference guaranteed
  • Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)

Wireless Digital Monitor
  • 7 inch TFT LCD High Resolution
  • PAL/NTSC auto switching
  • Resolution: 800 x 480 x RGB
  • Power Supply: 12 - 24 Volts DC
  • 2.4GHz Digital FHSS Hopping and Pairing Technology
  • 300 foot range
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • Digital signal with no interference, guaranteed
  • Built in speaker
  • Contrast ratio: 500:1
  • Brightness: 400 NIT

Monitor Dimensions
  • 4-7/8 inches (H) x 6-1/8 inches (W) x 1-7/8 inches (D) without antenna
  • 11 inches (H) x 6-1/8 inches (W) x 3 inches (D) without antenna

Wireless Digital Camera
  • Sony 1/3" CCD image sensor back up camera
  • 2.4GHz Digital FHSS hopping and pairing technology
  • Resolution: 510 x 492 pixels
  • NTSC or PAL video capable
  • 120 degree wide viewing angle camera
  • IR Infrared with 12 LEDs for Night Vision and up to 45 ft distance
  • Audio Function
  • Operating Temperature: -20 degrees ~ +70 degrees C (RH 95% Max)
  • Power Supply: DC 12V - 24V
  • Waterproof Rating: Ip69k
  • Shell Material Aluminium Alloy
Camera Dimensions
  • Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
  • With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)

Note: This item is intended to be used as a back up camera, if you are intending on using this item as a continuously on monitoring system vehicle speed cannot exceed 35 MPH as the system may experience delays in signal and may not be viewable, this is normal operation.

Technical Specifications

Manufacturer Safesight
Part Number SC9004DQ
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 400 Nit
LCD back light type LED
Auto Dimming No
Trigger wire Yes
Slide track on back Yes
Image Flip Function Yes, reverse image flip
Built in Speakers Yes
Stand Mount included Yes, Pedistal stand
Auto on/off Yes
Cigarette Lighter Cord Included Yes
Audio Video inputs No
Wireless Remote Control Yes
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type Surface Mount Camera
Options No
Product Options No
Homelink No
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CCD
Camera diameter 1/3 inch
Viewing Angle 120 degrees
Parking grid lines Yes
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Battery Powered Hard wired
Case included Yes
Connector Type 4 Pin Connector
Wireless Transmission Yes, Digital Wireless
Color Black
Operation Voltage 12 - 24 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No

Customer Reviews

Hard to find a wireless multi-camera system
Review by
Install (5 star for easy)
I was surprised to find this system. Multi-camera wireless system are very hard to find and this system has ability to have up to four cameras. I have three and it is exactly what I needed. I am using this on a travel trailer and I can now switch lanes and feel secure about it. Thank you! (Posted on 11/26/2014)

Write Your Own Review

You're reviewing: Safesight SC9004DQ Digital Wireless Quad screen back up camera system with three wireless cameras

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Torin, Wednesday, March 29, 2017


I would like to use this with my travel trailer. Is it possible to use a quick disconnect cable with this kit?
