Safesight TOP-SS-HD3104DVR 4 Channel HD-SDI DVR with 4 Channel audio inputs - 1080p H.264

100 % of 100
As low as $320.99
In stock
Only %1 left

Key Features

  • 4 Channel HD-SDI DVR
  • 4 Audio inputs
  • H.264 Compression format
  • Ethernet connection with 10/100Mbps port
  • TCP/IP, PPPoE, DDNS, UPnP, Ipv6 network capable
  • 4 - Alarm inputs
  • 1 - Alarm outputs
  • PTZ control
  • Sata2 HDD interface
  • Maximum 8Tb storage

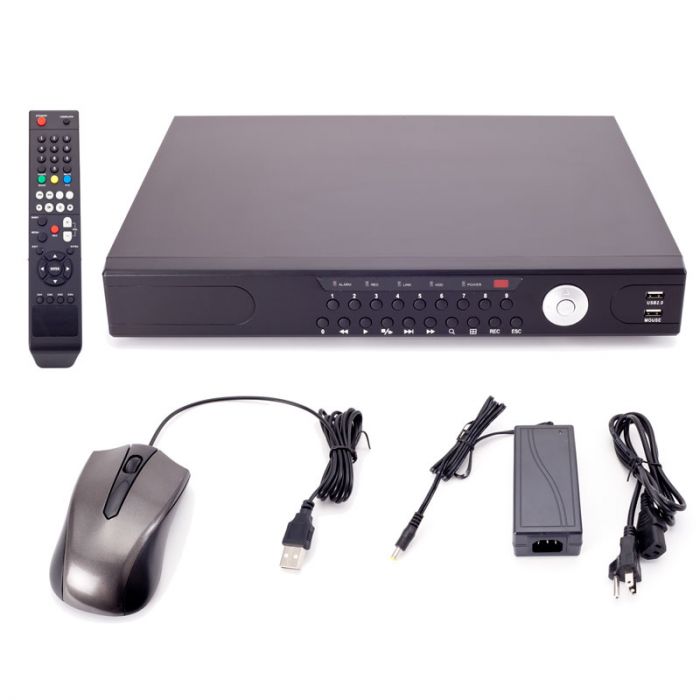

Unit includes: HD-SDI DVR recorder, USB mouse, AC adapter, Wireless Remote Control, Hardware and Instruction manual

Safesight™ TOP-SS-HD3104DVR 4 Channel HD-SDI DVR with 4 Channel audio inputs - 1080p H.264 features:

  • 4-channel IP addressable DVR with H.264 video compression
  • Linux embedded operating system
  • Full on screen display for DVR and camera setup with USB mouse control
  • 1080P High-Definition recording and real time playback at 30 frames per second per channel
  • Dual Sata interfaces for two hard drives making for a maximum system capacity of 8TB
  • Fully automatic recording, set and forget and record for 30 plus days on 4TB
  • Configurable motion detection zones for even longer recording times
  • System auto records over the oldest recorded material first for never ending recording
  • Conveniently see everything that is happening right on your tablet or cellphone (iPhone, iPad, and Android)
  • Watch live view 1080p HD right on your high definition TV set with the HDMI or VGA output
  • Wireless remote control
  • Dual stream capable
  • Pentaplex
  • Dimensions: 16" (L) x 12-3/4" (W) x 2-5/8" (H)

  • ADPCM audio compression
  • H.264 Video Compression format
  • VBR (Variable bit rate) and CBR (Constant bit rate) audio and video streams
  • Display frame rate: NTSC: 30fps per channel / PAL: 25fps per channel
  • Recording Resolution: Full HD 1080p (1920 x 1080)
  • NTSC Recording Frame Rate: 120 Frames total, 30 Frames per channel
  • PAL Recording Frame Rate: 100 Frames total, 25 Frames per channel
  • Recording modes: Motion detection, Continuous, Alarm, Timer, and Manual
  • Sata2 HDD interface
  • Maximum 8Tb storage
  • PTZ control

DVR Internet features:
  • Ethernet connection with 10/100/1000 Mbps port
  • TCP/IP, PPPoE, DDNS, DNS, DHCP, NTP network capable
  • DNS capable

DVR Video inputs and outputs:
  • 4 - Channel HD-SDI inputs, BNC connector
  • 4 - Channel Audio inputs, RCA connector
  • 1 - Channel Audio intercom input, RCA connector
  • HDMI video ouput
  • VGA output
  • Composite video output - BNC connector 480i output
  • HDMI Output display resolutions: (1920 × 1080) 1080p, (1280 × 720) 720p
  • VGA Output display resolutions: 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
  • AC power adapter input
  • Operating voltage: 12Vdc 5 Amp
  • Front USB jack for Backup
  • Front USB jack for USB mouse control
  • RJ45 Network Ethernet jack
  • RCA audio output
  • 4 - Alarm inputs
  • 1 - Alarm outputs
  • RS422 control
More Information
Manufacturer Safesight
Part Number TOP-SS-HD3104DVR
Max DVR Channels 4 channel
Native Screen Resolution 1080p
Audio Video inputs 4 Video Input
HDMI output Yes
USB input Dual USB
Wireless Transmission Wired connection
Alarm inputs 4 input
Alarm outputs 1 output
Network Protocol DDNS, DHCP, DNS, NTP, PPPoE, TCP/IP
Smartphone Compatible Yes
Wireless Remote Control Yes
Lines of Resolution 1080p
OSD (On Screen Display) Yes
Modulation NTSC and PAL
Lens Included No
Color Black
Housing material Metal
Vandal-proof No
Battery Powered Hard wired
Ac Adapter included Yes
Operation Voltage 12-15 Volt DC
Power consumption Amps 5000
Connector Type BNC Connector
Signal type HD-SDI
Warranty 1 Year
Return period 30 days
Exchange period 30 days
