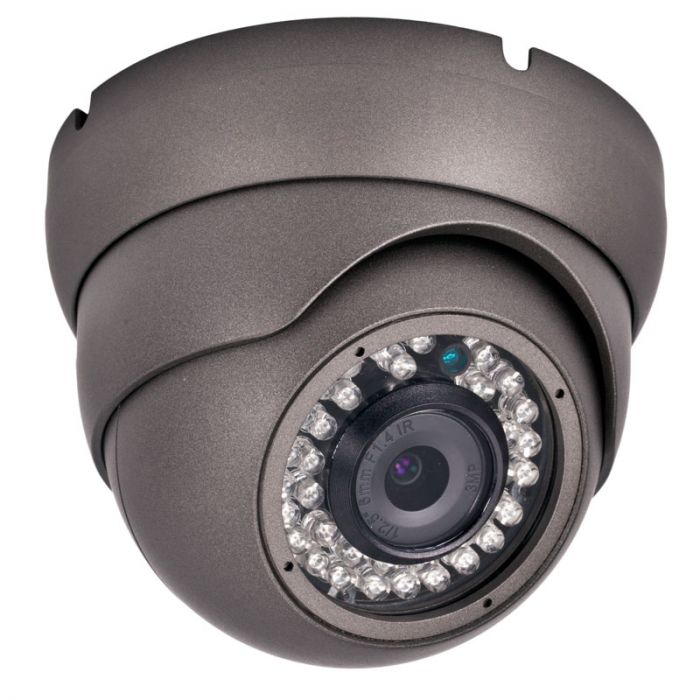

Safesight TOP-SS-DCT200 1/3" 2.4 Megapixel 1080p HD-IP Sony Dome CCTV camera - 12VDC
- Graphite Grey Dome camera
- 1/3" 2.4 Megapixel Sony CMOS image sensor
- Progressive scan 1080p output
- 2.8-12mm Variofocal manual zoom lens with external adjustments
- HD-IP RJ-45 (10/100Base-T) output
- Outdoor Aluminum Vandal-resistant housing
- 36 Infrared LED lighting with 90 foot range
- Graphite grey housing
HD-IP is the future of digital security cameras. This 2.4 megapixel HD-IP Outdoor Dome Camera features a progressive scan Sony IMX222 CMOS image sensor and delivers up to 1920 x 1080 (1080p) full HD resolution at 25 fps (frames per second). The DM368 Texas Instruments Da Vinci processor insures that images are sharp, detailed and incredibly lifelike. With integrated night-vision infrared LED's this camera can see in complete darkness with a maximum range of 90 feet. Now you can protect even the darkest of areas.
Three reasons to consider HD-IP:
1080p HD resolution
HD-IP cameras offer image quality that is generally superior to traditional analog cameras. IP cameras are completely digital and usually provide up to 25% better image detail. HD-IP is a cost-effective video surveillance solution that's easy to install and integrate and utilizes standard networking cables making it very easy to run cables.
Future proofHD-IP utilizes ethernet cables and run on the principles of computers making them more capable by providing live views to smartphones and laptop computers. These systems can be used for non-security applications to analize work flows, customer service and deliveries. All the data transmissions offer encrypted data ensuring privacy and can be viewed anywhere in the world!
Save moneyWith limited budgets, HD-IP systems provide a cost effective solution. A HD-IP system allows you to utilize existing and inexpensive cables that cut down on installation times.
Safesight TOP-SS-DCT200 1/3" 2.4 Megapixel 1080p HD-IP Sony Dome CCTV camera - 12VDC features:Features:
- Grey Vandal resistant aluminum housing
- Graphite grey to match dark interior or exterior colors
- 1/3" 2.4 Megapixel Sony CMOS image sensor
- Progressive scan 1080p output
- 1920 x 1080 (1080p) full HD resolution @ 30 fps
- HD-IP RJ-45 (10/100Base-T) output
- 2.8-12mm Variofocal manual zoom and manual focus lens with external adjustments
- 2-Axis Camera swivels 360 within housing
- 36 Infrared LED lighting with 90 foot range
- Built-in Digital Noise Reduction to eliminate noise from your video with three settings: Low / Medium / High
- IP66 weather rated
- Built-in Automatic Gain Control for additional low and high light level picture quality
- HD-IP cameras require HD-IP DVRs
- IP protocols: IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS
- Support ONVIF 2.0
- Supports P2P with included QR code
- Supports POE with IEEE 802.3af
- Supports connections to Internet Explorer 6 -11 and iPhone, iPad, Android
- Video delay: 0.3 seconds with the LAN network
On Screen controls for:
- Fixed or auto iris control
- Manual or auto shutter
- Light flicker correction - Used in situations with fluorescent lighting
- Night sensitivity
- Automatic gain control
- HLC control block certain areas of high brightness and add brightness to surrounding areas
- Back-light adjustment to compensate for areas of high brightness
- WDR - allows adjustment of areas of low brightness can be seen while viewing areas of high brightness
- White balance - Auto / Preset / Manual
- DNR - Low / Middle / High
- Image sharpness
- Image gamma
- Color gain
- Mirror image - Flip images horizontally
- Flip image - Flip images vertically
- Digital zoom
- Adaptive color enhancement
- Lens shading
- Privacy area - Block seeing through neighbors windows
Dimensions:
- Dimensions: 4-3/4" Diameter x 3-7/8" Height
Digital Noise Reduction (DNR) eliminates noise that is created in the image by applying a digital comb filter. In low light levels, the camera compensates for a lack of light by slowing the shutter speed and opening the iris to allow more light. The camera also applies additional gain to increase the light level, this process causes noise, DNR compensates for this and increases picture quality.
Manufacturer | Safesight |
---|---|
Part Number | TOP-SS-DCT200 |
Length | 1.5 Feet |
Wireless Transmission | Wired connection |
Infrared Illumination | Yes |
Built in Microphone | No |
Imager Manufacturer | Sony |
Camera Sensor type | CMOS |
Sensor Size | 1/3 inch |
Camera diameter | 1/3 inch |
Lines of Resolution | 1080p |
Minimum Illumination | .01 Lux |
Color Camera | Yes |
Viewing Angle | 120 degrees |
IR LED Count | 36 |
Infra-Red Wavelength | 850nm |
Gain Control | Yes |
Dynamic Range (dB) | More than 50db |
Focus | Manual |
AGC (Automatic Gain Control) | Built In |
IR range (ft) | 110ft to 120ft |
OSD (On Screen Display) | Yes |
Modulation | NTSC and PAL |
Lens Included | Yes |
Lens Type | Manual Zoom |
Electronic Shutter | Auto |
Relative Aperture (F-stop) | 1.4 |
Focal Length (mm) | 2.8 - 12mm |
Color | Gunmetal |
Housing material | Metal - Vandalproof |
Vandal-proof | Yes |
Outdoor | Yes |
Waterproof ingress protection | IP66 - Dust; String Water Jets/Waves |
Battery Powered | Hard wired |
Ac Adapter included | No |
Operation Voltage | 12-15 Volt DC |
Power consumption Amps | 900 |
Connector Type | RJ45 Connector |
Signal type | IP-Based |
Warranty | 1 Year |
Return period | 30 days |
Exchange period | 30 days |
