DISCONTINUED - Pioneer TS-A6885R A Series 5 x 7 inch or 6 x 8 Inch 350 Watt 4-Way Car Speaker System

DISCONTINUED - Pioneer TS-A6885R A Series 5 x 7 inch or 6 x 8 Inch 350 Watt 4-Way Car Speaker System

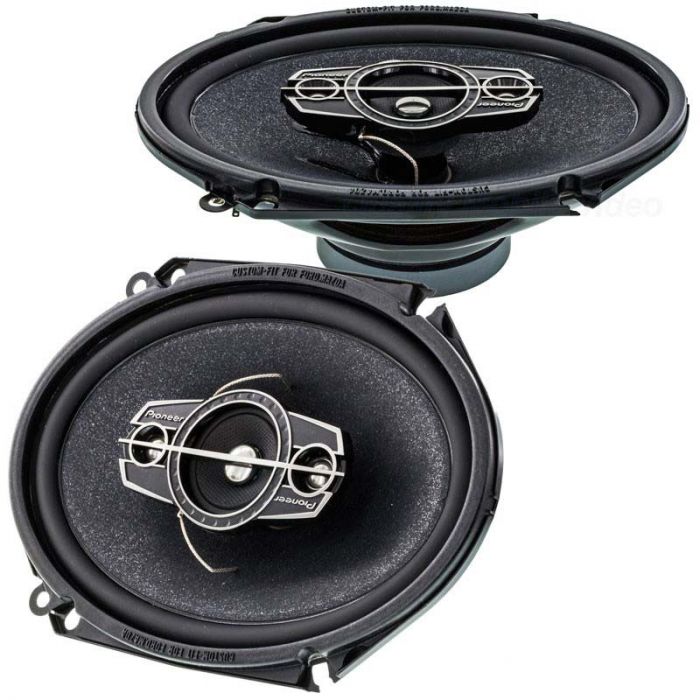

Pioneer TS-A6885R 6x9 Inch Car Stereo Speakers - Main View

More Views

Pioneer
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Pioneer TSA6885R Product Highlights


This item has been discontinued.
Click here for new model.


Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Pair of 6" x 8" speakers, Mounting Screws and Instruction manual

Pioneer TS-A6885R A Series 5 x 7 inch or 6 x 8 Inch 350 Watt 4-Way Car Speaker System
    New materials

    To create new A-Series speakers, various materials were combined to create extra lightness and rigidity to produce outstanding sensitivity while remaining very clear. The A-series speakers feature a multilayer mica matrix cone where a surface containing mica properly maintains the cone’s superior rigidity making them light and water resistant.


    Tweeters and Midrange

    A-Series speakers have a smooth off-axis response, they feature a soft dome tweeter that utilizes a wave guide. This wave guide design ensures mid and high frequencies that emit in a uniform and wide dispersion patter. This results in a smooth response both on and off axis. The wave guide is combined with newly developed tweeter that disperses sound more widely providing listeners with the best sound possible under all conditions.


      Features
    • 4 - Way Speaker design for excellent audio quality
    • Fits 6 inch by 8 inch speaker locations
    • Fits 5 inch by 7 inch speaker locations
    • 6" x 8" Woofer with 1-1/4" Soft dome tweeter
    • Multi-Layer Mica Matrix Woofer Cone for Optimum Sound Reproduction and Responsiveness
    • Ferro Fluid Filled Tweeters help heat dissipation for maximum reliability
    • Lightweight elastic polymer surround for high sensitivity
    • Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
    • Soft Dome Tweeter with Wave Guide for Increased Sensitivity
    • Smooth off-axis response
    • Passive Crossover Network

    • Power Handling Max
    • Max power: 350 watts

    • Power Handling RMS
    • RMS Power: 60 watts

    • Quick Specs
    • Frequency response: 31 Hz to 42 kHz
    • Sensitivity: 90 dB
    • Impedance: 4 ohms
    • Type: 2-Way Component

    • Dimensions
    • Speaker Cut-out Size: 5" x 7" or 6" x 8"
    • Mounting Depth: 2-3/8"

Technical Specifications

Manufacturer Pioneer
Part Number TSA6885R
Speaker Size 6 x 9 inch
Speaker system type 4 - way
Frequency Response 31 - 42,000 Hz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 60 Watts
Power Handling Peak 350 Watts
Sensitivity 90dB
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Mounting Depth 2.38 inch
Color Black
Warranty 1 Year
UPC Code 884938183482
