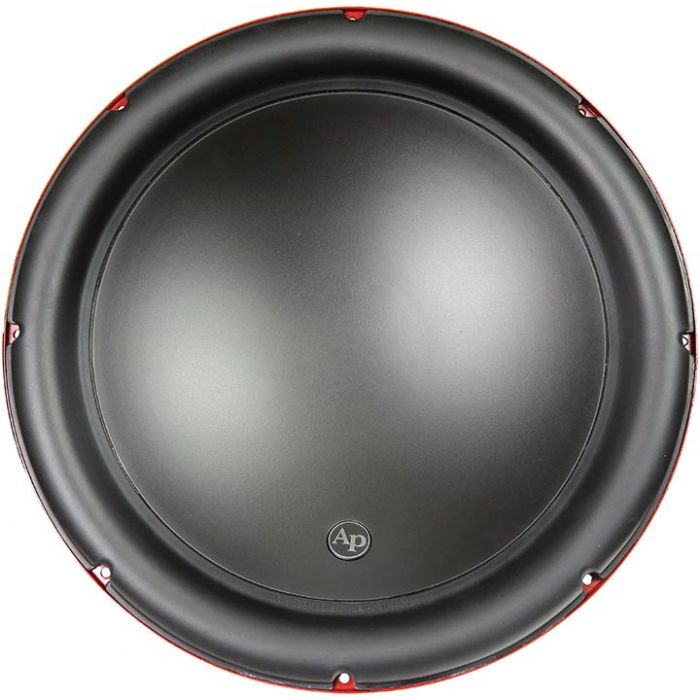

Audiopipe TSCAR15 15 inch Subwoofer - Single 4 ohm voice coil
Audiopipe TSCAR15 15 inch Subwoofer - Single 4 ohm voice coil
Key Features
15 inch Subwoofer with 4 ohm Single voice coil Oversized 73 ounce magnet and motor structure for extreme power handling and bass output 2.5 inch 4-layer single voice coil with large gauge wire for high temperature and power handling 1000 Watts maximum power handling
Unit Includes: 15 inch Single 4 ohm voice coil subwoofer, Mounting Hardware, and Instruction manual
Audiopipe TSCAR15 15 inch Subwoofer - Single 4 ohm voice coil
Features:
15 inch Subwoofer with single 4 ohm voicecoil Oversized 73 ounce magnet and motor structure for extreme power handling and output
Injection-molded polypropylene cone
Large Butyl Rubber Surround
Woven high strength tinsel leads
Perimeter venting for heat management
Powder coated black stamped steel basket
Multi-connect speaker terminals
High-temperature 4 Layer voice coil
Instruction Manual - Instruction Manual
Sold Individually
Power Handling Max:
1000 Watts maximum power handling
Power Handling RMS:
500 Watts nominal continuous power handling RMS
Quick Specs:
Impedance: 4 ohm Ohm per coil
Frequency response: 20 Hz - 1000 Hz
Sensitivity: 91 dB @ 1Watt / 1meter
Dimensions:
Mounting Depth: 7.0625 inches
Mounting Diameter: 14.375 inches
More Information
Manufacturer
Audiopipe
Part Number
TSCAR15
Driver Size
15 inch
Subwoofer Shape
Round
Voice coils
Single voice coil
Impedance (per voice coil)
4 ohm
FS
24 Hz
QES
0.68
QMS
1.6
QTS
0.48
RE
3.6
VAS
0
Xmax (millimeters)
7.5 mm
Sensitivity
91 dB
Frequency Response
20 Hz - 1000 Hz
Sub enclosure type
Banpass, Ported / Vented, Sealed
Power Handling RMS
501 - 750 Watts
Power Handling Peak
1000 Watts
Shallow Mount Subwoofer
No
Mounting Depth
$7.06
Cutout Dimensions
$14.38
Sealed Enclosure Recommended Size
2.25 ft3
Ported Enclosure Recommended Size
2.50 ft3
Color
Black
Warranty
1 Year
Sold as
Individually
UPC Code
784644218518
Return period
30 days
Exchange period
30 days
