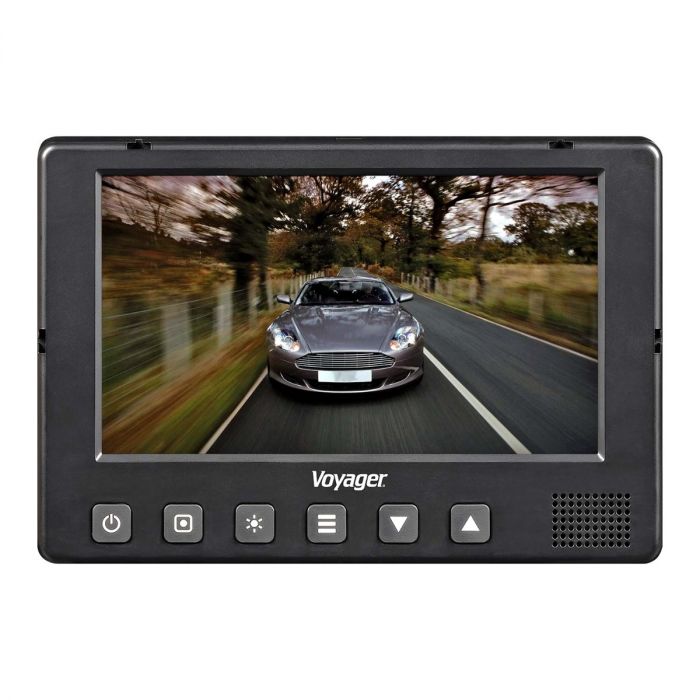

Audiovox Voyager VOM719WP Waterproof 7'' LCD Video Quad Screen Monitor - (4) Video inputs
$499.99
In stock
SKU
VOM719WP
Expert Knowledge
Talk to a specialist
- Voyager Waterproof Quad Touchscreen Backup Monitor
- 7 inch LCD Screen
- 6 Video Inputs with triggers for each
- Single image, split-screen, or QuadView view modes
- Compatible with Voyager Cameras
- Back-lit buttons for easy adjustments at night
Unit Includes: 7 inch LCD monitor, Wiring harness, Sun visor shroud and Instruction manual
Audiovox Voyager VOM719WP Waterproof 7'' LCD Video Quad Screen Monitor - (4) Video inputs
Audiovox Voyager VOM719WP Waterproof 7'' LCD Video Quad Screen Monitor - (4) Video inputs
- Features:
- 7" TFT/LCD Active Matrix Video Monitor
- Quad screen display for viewing of four cameras simultaneously
- Single image, split-screen, or QuadView view modes
- 16:9 Widescreen letterbox display
- Super bright for day-time use with Day / Night brightness modes
- Beautiful black waterproof housing perfect for mounting on dash of an RV (IPX6 rated)
- Monitor has multiple mounting patterns on back for use with Voyager and Panavise mounts 38mm (W) x 30mm (H) pattern - AMPS compatible
- White Back-lit buttons for easy adjustments at night
- High Resolution: 800 x 480 for excellent picture quality
- 6 triggered video inputs for auto switching as turn signals or reverse gear is entered (4-Single image, Split-screen, and QuadView display)
- Camera selection via front mounted buttons
- Removable sun shade for extra bright ambient light situations
- Compatible with Audiovox Voyager cameras
- Trigger delay setup - specify the length the trigger signal must be present before switching, helps avoid needless camera switching
- Camera naming function
- Distance marker or parking grid can be enabled and disabled with adjustable lines via the OSD (On Screen Display)
- OSD - (On Screen Display) allows for all adjustments
- Viewing Angles: 60°(TOP), 70°(BOTTOM), 75°(LEFT, RIGHT)
- Inputs and Outputs
- 4 - 4 Pin S-Video type camera input connectors
- 1 - Channel 1 trigger: Blue wire
- 1 - Channel 2 trigger: Brown wire
- 1 - Channel 3 trigger: Green wire
- 1 - Channel 4 trigger: Orange wire
- 1 - Channel 5 trigger: Yellow wire Split-screen
- 1 - Channel 6 trigger: QuadView
- 1 - 10 - 24Vdc positive input: Red wire
- 1 - Ground input: Black wire
- Specifications:
- Operating Temperature: -20 degrees C ~ +70 degrees C
- Storage Temperature -20 degrees C ~ +70 degrees C
- Power Requirement: 10Vdc - 24Vdc
- Power Consumption: 600 mA
- LED backlit for 20,000 hour lifespan
- Brightness: 500 NIT
- Contrast Ratio: 500:1
- Dimensions:
- Monitor Only Dimensions: 7.8 (W) X 5.3 (H) X 1.2 (D) inches
-
NOTE: Monitor stand is not included. To purchase stand see Audiovox Voyager 72704 LCD monitor mounting stand
| Manufacturer | Voyager |
|---|---|
| Part Number | VOM719WP |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 500 Nit |
| Swivel Screen | Yes |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Anti-Shock | Yes |
| Headphone Jack | No |
| Built in Speakers | Yes |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 4 Audio Video Input |
| Audio Video Outputs | None |
| Composite video input | No |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Built in Phone Mirroring | No |
| Housing material | Plastic |
| Slide track on back | Yes |
| Mounting thread for stand mount | Yes |
| Mount included | No |
| Trigger wire | Yes |
| Image Flip Function | Image rotate |
| Quad Screen | Yes |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-24 Volt DC |
| Wireless Remote Control | No |
| Monitor Color | Black |
| Color | Black |
| Overall Height | $5.30 |
| Overall Length | $1.20 |
| Overall Width | $7.80 |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
