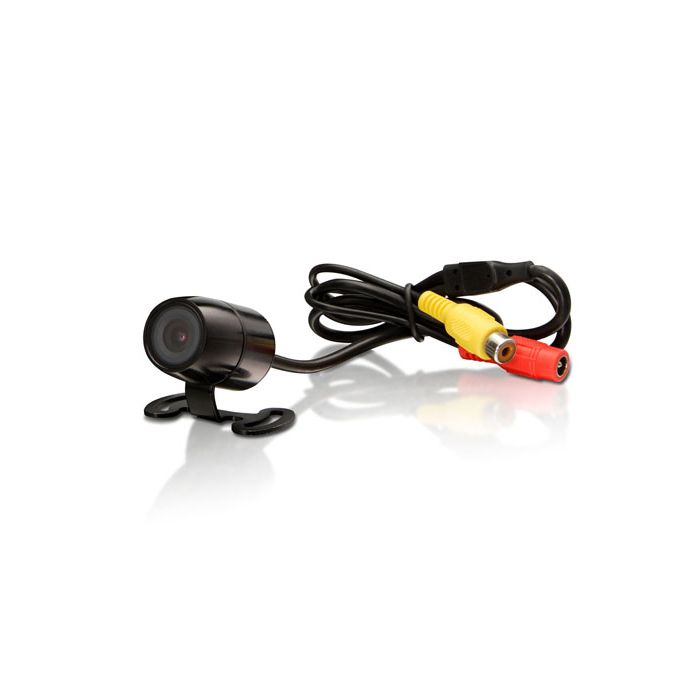

Boyo VTB170 Small Bracket Type Camera CMOS

Boyo VTB170 Small Bracket Type Camera CMOS

Boyo VTB170 Small Bracket Type Camera CMOS

More Views

Free Shipping on orders $50+

Overall Rating 0 (Based on 0 reviews)

Boyo VTB170 Product Highlights

  • 170° Wide Viewing Angle
  • CMOS Lens
  • Small bracket type camera
  • Reverse Image
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Back up camera, Wiring harness, Mounting bolts, Mounting bracket and Instruction manual

Boyo VTB170 Small Bracket Type Camera CMOS features:
  • Small bracket type camera
  • 1/4" color CMOS lens
  • 170° wide viewing angle
  • 0.5 lux
  • Model: VTB170
  • Imager: 1/4" DSP Color CMOS
  • Effective Pixels: 656 x 492
  • Horizontal resolution: 380,2011, TV Lines
  • Viewing Angle: 170˚ wide viewing angle
  • Min.Illumination: 0.5 LUX
  • Video Output: RCA connector, 1.0 Vp-p, 75 ohm
  • Current consumption: 50mA, Max 300mA
  • Power Supply: DC12V +/- 10%
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80,2011,˚ C )
  • Humidity: Within 90% RH

Instruction manual

Technical Specifications

Manufacturer Boyo
Part Number VTB170
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera sensor diameter No
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines No
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation No
Operation Voltage No
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Write Your Own Review

You're reviewing: Boyo VTB170 Small Bracket Type Camera CMOS

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by LOU, Wednesday, June 12, 2013


does camera produce colored images


  • Posted by Salvador Diaz on Wednesday, June 12, 2013

    Yes, this is a full color camera.
