Boyo VTB180 Small Bracket Mount Type 1/3 inch DSP Color CCD Mini Reverse Camera

$74.99
In stock
Only 1 left
SKU
VTB180

Key Features

  • 1/3" DSP CCD image sensor for excellent image quality
  • Small bracket mount car camera that can be used as a front or reverse camera and has multiple mounting options
  • Can easily be flush mounted, surface mounted under a ledge, or nearly the license plate
  • 140° Wide viewing angle for greater visibility behind the vehicle
  • Water proof IP68 rating

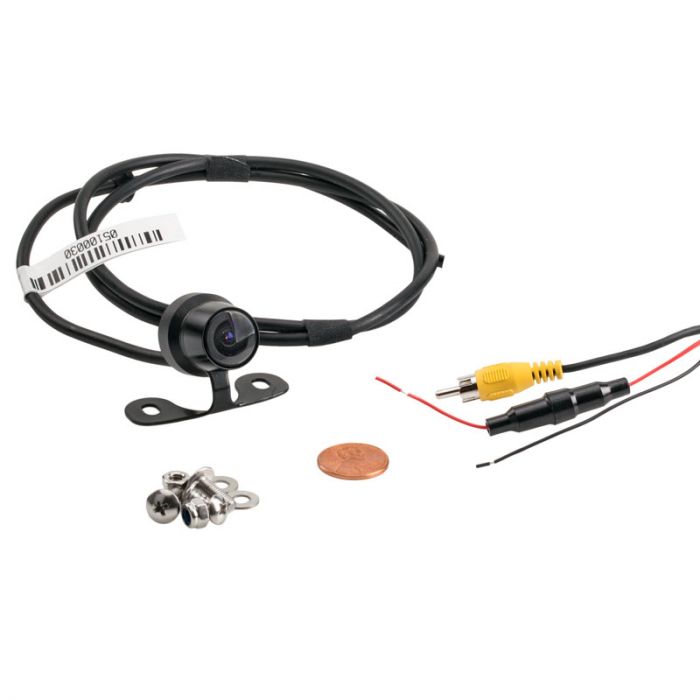

Unit includes: Camera, Extension harness, Mounting hardware, and Instruction manual

Boyo VTB180C Small Bracket Mount Type CMOS Camera
    Features:
  • Small bracket mount car camera that can be used as a front or reverse camera and has multiple mounting options
  • Can easily be flush mounted, surface mounted under a ledge, or nearly the license plate
  • 140° Wide viewing angle for greater visibility behind the vehicle
  • 1/3" DSP CCD image sensor for excellent image quality
  • 420 TVL horizontal resolution
  • Excellent Auto White Balance
  • Water proof IP68 rating
  • Reverse image
  • Low light performance of 0.2 Lux at F2.0
  • Sturdy zinc allow construction
    Quick Specs
  • Effective pixels: 640 (H) x 480 (V)
  • Operating temperature: -4° F - 140° F
    Dimensions:
  • Camera: 7/8" (D) x 1" (L)
More Information
Manufacturer Boyo
Part Number VTB180
Camera Sensor type CCD
Back up camera type Surface Mount Camera
Camera diameter 1/3 inch
Viewing Angle 140 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Color Black
Warranty 1 Year
UPC Code 689076018715
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Boyo VTB180 Small Bracket Mount Type 1/3 inch DSP Color CCD Mini Reverse Camera
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?
This can be done by using a screen interface or add-a-camera harness.
