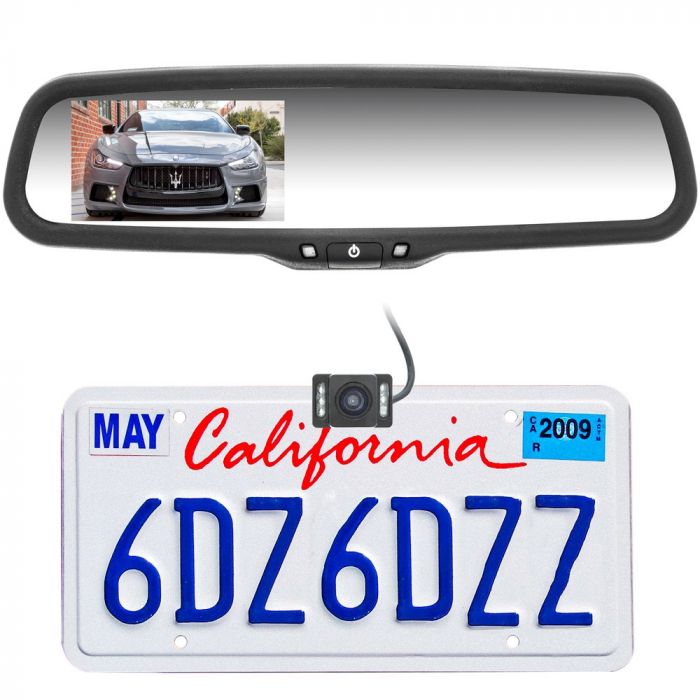

Boyo Vision VTC1743M 4.3" Rearview Mirror Monitor License Plate Backup Camera System
$149.99
In stock
SKU
VTC1743M
Expert Knowledge
Talk to a specialist
- 4.3" Rearview Mirror Monitor with License Plate Backup Camera
- Clip-on rear-view mirror monitor
- 170-degree horizontal viewing angle
- 1/3" CMOS Sensor
- Built-in LEDs for low light use
- Camera Resolution: 720x480
Unit includes: 4.3 inch LCD monitor, Black License plate camera, Mount Pedestal , Wiring, and Instruction manual
Boyo Vision VTC1743M 4.3" Rearview Mirror Monitor License Plate Backup Camera System:
Features:
Camera:
Monitor:
Boyo Vision VTC1743M 4.3" Rearview Mirror Monitor License Plate Backup Camera System:
Features:
- 4.3" Rearview Mirror Monitor with License Plate Backup Camera
- System will automatic turn on when vehicle is placed in reverse - requires connection to the reverse light
- License plate mount back up camera makes adding this to any vehicle very easy
- Clip-on rear-view mirror monitor
- Monitor can be hardwired to the vehicle or plugged in with included cigarette lighter cord
- Adjustable spring tabs make mounting to virtually any rear-view mirror very easy
- Rearview mirror is a perfect mirror when display is not powered on, no tint or visible monitor
- Completely wireless video transmission
- Should not be used on diesel vehicles due to glow plug interference
Camera:
- License Plate Mount
- 1/3" CMOS Sensor
- Reverse/Non-Reverse View Selectable
- 170-degree horizontal viewing angle
- IP67 waterproof rating
- Built-in LEDs for low light use
- Parking Guide Line On/Off Selectable
- Resolution: 720x480
- Definition: 700 TV Lines
- Illumination: 0.1 Lux
- Min. Illumination: 0.5 Lux
- Power Supply: 9~16V DC
- System: NTSC
- Power source: 12Vdc
- Viewing Angle: 120 ~ 170 degree
- White Balance: Automatic
- Working Temperature: -20°C ~ 70°C
Monitor:
- Screen Type: 4.3” Digital TFT LCD
- Display Format: 16:9
- Power supply: 12VDC
- Reverse trigger wire
- TV System: NTSC/PAL auto switch
- Resolution: 480 x 272
- Brightness: 1000 cd/m2
- Power Consumption: 350mA (working) / 125mA (standby)
- Maximum height for clamping: 3-3/8"
- Minimum width for clamping: 5-1/8"
| Manufacturer | Boyo |
|---|---|
| Part Number | VTC1743M |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 480 x 272 |
| Trigger wire | Yes |
| Auto on/off | Yes |
| Audio Video inputs | 1 Video Input |
| Monitor Type | Rearview mirror monitor |
| Mirror Mount Type | Clip On |
| Back up camera type | License Plate Camera |
| Reverse Image | Selectable |
| Camera Sensor type | CMOS |
| Camera diameter | 1/3” |
| Viewing Angle | 170 degrees |
| Parking grid lines | Selectable |
| Infrared Illumination | LED Illumination |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Connector Type | RCA Cable |
| Color | Black |
| Operation Voltage | 8-15 Volt DC |
| Warranty | 1 Year |
| UPC Code | 852052006970 |
| Return period | 30 days |
| Exchange period | 30 days |
