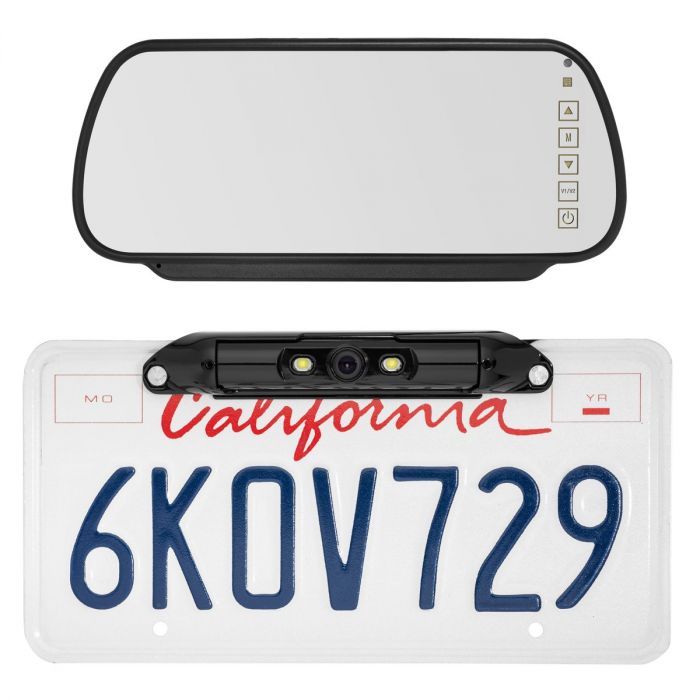

Boyo Vision VTC474RB Wifi Rearview Mirror Backup Camera System - Black camera
$179.99
In stock
SKU
VTC474RB
Expert Knowledge
Talk to a specialist
- Wifi wireless backup camera system for easy installation on any vehicle
- Black CMOS License plate mount back up camera
- 130 degree camera viewing angle
- Clip-on rear-view mirror monitor with 6 inch LCD display
- Monitor can be hardwired to the vehicle or plugged in with included cigarette lighter cord
Unit includes: 4.3 inch LCD monitor, Black License plate camera, Mount Pedestal , Wiring, and Instruction manual
The Boyo VTC474RB wireless back up camera system is a simple to use and simple to install backup camera system. The advantage to the VTC474RB is that it is a WiFi wireless system that is not subject to interference. The system uses digital transmission that is encrypted and paired between the monitor and camera. The VTC474RB includes a black license plate camera and a 6 inch rearview mirror monitor. Simply provide power to the monitor and camera and you are good to go!
Boyo Vision VTC474RB Wifi Rearview Mirror Backup Camera System - Black camera features:
System features:
- Wifi wireless backup camera system for easy installation on any vehicle
- System will automatic turn on when vehicle is placed in reverse - requires connection to the reverse light
- License plate mount back up camera makes adding this to any vehicle very easy
- 170° diagonal camera viewing angle
- Clip-on rear-view mirror monitor with 6 inch LCD display
- Monitor can be hardwired to the vehicle or plugged in with included cigarette lighter cord
- Adjustable spring tabs make mounting to virtually any rear-view mirror very easy
- Rearview mirror is a perfect mirror when display is not powered on, no tint or visible monitor
- Completely wireless video transmission
- Should not be used on diesel vehicles due to glow plug interference
- Less than 100ms latency
- Frames per second: 20 ~ 30fps
- Camera features:
- Black Finish camera with built in WiFi transmitter
- Two built in LED's for night viewing with on/off control button
- Camera has adjustable vertical angle with set screw retention
- Camera must be paired with monitor
- 2 - RCA video outputs for optional hardwiring
- Camera image Sensor: CMOS
- Effective Pixels: 720(H) x 480(W)
- Horizontal Resolution: 480 TV Lines
- Min. Illumination: .02 Lux
- Video Compress: H.264
- White Balance: Auto
- Power source: 12Vdc
- Wireless Frequency: Wifi Digital Signal
- Wireless Distance: 67 Feet
- Wide Angle: 130° Horizontal
- Power consumption: 100mA
- IP67 rated
-
Monitor Specifications:
- 2 - RCA video inputs for optional sources
- Display resolution: 800(W) x 480(H)
- Screen size: 6" TFT
- Brightness: 1000 NIT
- Working voltage: 12V
- Power consumption: 8 Watts
- Monitor Dimensions: 10-1/2" (W) x 4-1/2" (H) x 1" (D)
- Maximum height for clamping: 3-3/8"
- Minimum width for clamping: 5-1/8"
| Manufacturer | Boyo |
|---|---|
| Part Number | VTC474RB |
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 1000 nit |
| LCD back light type | LED |
| Auto Dimming | Yes - Full Auto Dimming |
| Trigger wire | Yes |
| Modulation | NTSC and PAL |
| Slide track on back | No |
| Image Flip Function | No |
| Built in Speakers | No |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | Yes |
| Audio Video inputs | 2 Video Inputs |
| Wireless Remote Control | No |
| Monitor Type | Rearview mirror monitor |
| Mirror Mount Type | Clip On |
| Back up camera type | License Plate Camera |
| Homelink | No Homelink transmitter |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMOS |
| Camera diameter | 1/3" |
| Viewing Angle | 130 degrees |
| Parking grid lines | Yes |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Hard wired |
| Case included | No |
| Connector Type | RCA Cable |
| Wireless Transmission | Digital wireless |
| Color | Black |
| Operation Voltage | 12-15 Volt DC |
| Warranty | 1 Year |
| UPC Code | 850005493082 |
| Return period | 30 days |
| Exchange period | 30 days |
