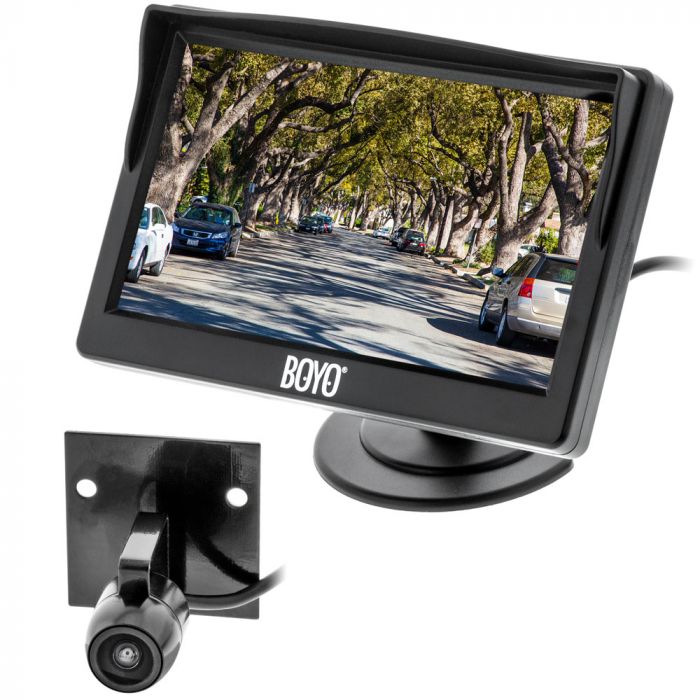

Boyo VTC500DIY 5" Rear View Monitor & Compact Bracket Mount Behind License Plate Camera (DIY-Do It Yourself)
$99.99
In stock
SKU
VTC500DIY
Expert Knowledge
Talk to a specialist
- 5" Rear View Monitor & Compact Bracket Mount Behind License Plate Camera
- Designed for DIY install with patented quick install connectors
- 170 degree Wide Viewing Angle (Diagonal)
- Reverse/Normal Image (Selectable)
- Parking Lines On/Off (Selectable)
- 420TV Lines Resolution
Unit includes: 5 inch wireless monitor, Hardware monitor power cable, Cigarette lighter monitor power cord, Wireless back up camera, Camera power cable, Suction cup, Two antenna, and Instruction manual
Boyo VTC500DIY 5" Rear View Monitor & Compact Bracket Mount Behind License Plate Camera (DIY-Do It Yourself)
Boyo VTC500DIY 5" Rear View Monitor & Compact Bracket Mount Behind License Plate Camera (DIY-Do It Yourself)
- Overview:
- Designed for DIY install with patented quick install connectors
- Wired Connections for added reliability, no wireless interference or image delays
- Fits 12V and 24V Vehicles
- Detailed step by step instruction manual
- No professional experience needed
- Extension Power Cable : 26 feet
-
5" Monitor:
- 5 inch TFT LCD Display
- 16:9 Screen Format
- Power Supply: DC 12 - 32 Vdc
- Operating Temperature : -20 ~ +70 °C
- 2 Video Inputs
- Adjustable Brightness, Contrast,
- Contrast, Color and Brightness
- Saturation and Tint
- Dash or Windshield Mount
- CMOS Image Sensor (1058)
- 960 x 592 Resolution
- 420TV Lines Resolution
- 170 degree Wide Viewing Angle (Diagonal)
- 110 degree Viewing Angle (Horizontal)
- Reverse/Normal Image (Selectable)
- Parking Lines On/Off (Selectable)
- Operating Temperature : -20 ~ +70 °C
- IP68 Waterproof Rating
- Bracket Mount Behind License Plate Camera
-
Backup Camera:
| Manufacturer | Boyo |
|---|---|
| Part Number | VTC500DIY |
| LCD Screen Size | 5 inch - 6 inch |
| Native Screen Resolution | 480 x 272 Screen Resolution |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 250 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Auto video sense trigger |
| Slide track on back | Yes |
| Image Flip Function | No |
| Built in Speakers | No |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | Yes |
| Audio Video inputs | None |
| Wireless Remote Control | No |
| Monitor Type | Stand alone monitor |
| Back up camera type | License Plate Camera |
| Homelink | No Homelink transmitter |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMOS |
| Camera diameter | 1/3" |
| Viewing Angle | 170 degrees |
| Parking grid lines | Selectable |
| Built in Microphone | No |
| Infrared Illumination | No |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Hard wired |
| Wireless Transmission | Wireless connection |
| Color | Black |
| Operation Voltage | 12-24 Volt DC |
| Warranty | 1 Year |
| UPC Code | 852052006932 |
| Return period | 30 days |
| Exchange period | 30 days |
