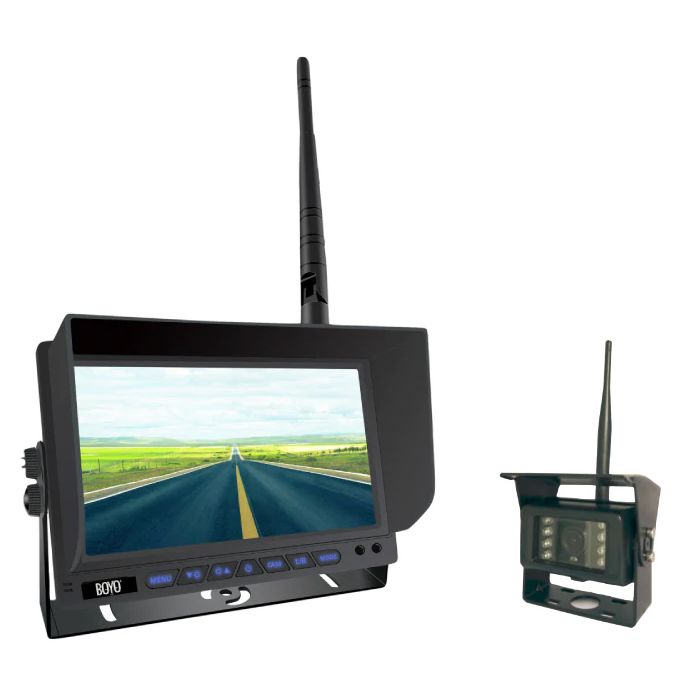

Boyo VTC701AHD 7 inch 1080p Digital Wireless Single Camera System

$279.99
In stock
SKU
VTC701AHD

Key Features

  • 1080p AHD 2.4GHz Digital Wireless Monitoring System
  • 7 inch wireless monitor and one (1) 1080p wireless camera
  • Wireless Operation Up To 300’ (open space)
  • U-shape mount for dashboard mounting
Inside the box:
  • 5 inch LCD monitor with wireless receiver
  • (1) Wireless Cameras
  • (2) Antennas
  • (2) Hardwire DC power cords
  • Cigarette lighter cord
  • U-shape monitor bracket
  • Instruction manual
Boyo VTC701AHD 7 inch 1080p Digital Wireless Single Camera System
    7" Digital Monitor Features:
  • 7 inch IPS LED monitor with built in digital HD receiver
  • Ultra Clear Display Quality with 1080P AHD resolution
  • Front mounted buttons for direct camera control and dual screen view
  • Built-In Speaker
  • Resolution: 1024(H) x 600(V)
  • Power Supply: 12VDC - 36VDC
  • Screen Ratio: 16:9
  • OSD Menu (On Screen Display)
  • Contrast, Color and Brightness
  • Parking Guidelines On/Off
  • Image flip function: Horizonal and Vertical
  • Detachable Sunshade
  • Wireless Transmit Range at about 300 feet
  • Operating Temperature: -20°C ~ +70° C (RH 95% Max)
  • Current consumption: 5 Watts
    Monitor Dimensions
  • Without Antenna and no sunshade: 8-7/16" (W) x 5-7/8" (H) x 1-1/8" (D)
  • Without Antenna and sunshade: 8-5/8" (W) x 5-1/8" (H) x 2-3/4" (D)
  • With Antenna and sunshade: 8-5/8" (W) x 6-1/2" (H) x 4-1/4" (D)
    Monitor connections
  • 1 - DC power jack
  • 1 - Camera 1 positive trigger (Full screen)
  • 1 - Camera 2 positive trigger (Full screen)
1080p Wireless digital camera features:
  • 1080p Digital HD resolution for excellent image detail and object detection
  • 1/3" CMOS CCD image sensor for excellent color and resolution
  • U-Shape surface camera mount
  • Effective Pixel Resolution: 1920(H) x 1080(V)
  • Wide Viewing Angle: 170° (D) x 130° (H) x 110° (V)
  • IR Infrared with 8 LEDs for Night Vision and up to 25 ft distance
  • Wireless Operation Up To 600’ (open space)
  • Built-in Microphone
  • Built-in Heater function
  • IR Night Vision Visible Distance: about 12feet
  • Operating Temperature: -20° C ~ +80° C (RH 95% Max)
  • Power Supply: DC 12V - 36V
  • Waterproof Rating: Ip68
  • Shell Material Aluminum Alloy
    Camera Dimensions
  • Without antenna: 4-1/4 inches (W) x 2-3/4 inches (H) x 2-3/4 inches (D)
  • With antenna: 4-1/4 inches (W) x 8 inches (H) x 2-3/4 inches (D)
More Information
Manufacturer Boyo
Part Number VTC701AHD
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1280 x 600
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness 350 Nit
LCD back light type LED
Auto Dimming No Dimming
Trigger wire No
Modulation AHD
Slide track on back Yes
Image Flip Function Image rotate
Built in Speakers Yes
Mount included Yes, Pedistal stand
Auto on/off No
Cigarette Lighter Cord Included Yes
Audio Video inputs None
Wireless Remote Control No
Monitor Type Stand alone monitor
Back up camera type Surface Mount Camera
Built in Bluetooth No Bluetooth
Reverse Image Selectable
Camera Sensor type CMOS
Camera diameter 1/3"
Viewing Angle 170 degrees
Parking grid lines Selectable
Built in Microphone Yes
Infrared Illumination Yes
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Battery Powered Hard wired
Wireless Transmission Digital wireless
Color Black
Operation Voltage 12-36 Volt DC
Warranty 1 Year
Return period 30 days
Exchange period 30 days
