Boyo VTK350 Flush Mount Bullet back up camera with IR illumination

Boyo VTK350 Flush Mount Bullet back up camera with IR illumination

Boyo VTK350 Flush Mount Bullet back up camera with IR illumination - main

More Views

Boyo
Free Shipping on orders $50+

Overall Rating 3 (Based on 1 reviews)

Boyo VTK350 Product Highlights

  • 120° viewing angle
  • Flush Mount or Surface camera
  • Night Vision
  • Parking grid lines - can be enabled or disabled with cut wire
  • Reverse / Non-reverse for back up or front view
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit includes: Car camera, DC power plug, Surface mount, Mounting hardware and Instruction manual

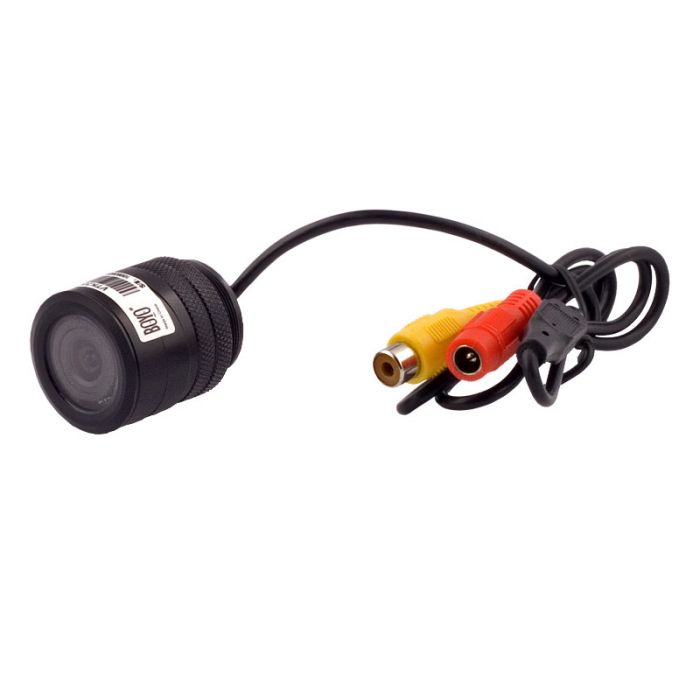

Boyo VTK350 Flush Mount Bullet back up camera with IR illumination
    Features:
  • Flush mount design so body of camera hides behind the surface
  • 1/3" color CMOS sensor for exceptional image quality
  • 120° viewing angle
  • Infrared IR illumination for nightvision capabilities, can see in complete darkness with a range of 30 feet
  • Scanning system: 2:1 interface
  • Imager Resolution: 756 x 504 pixels
  • Parking grid lines - can be enabled or disabled with cut wire
  • Reverse / Non-reverse for back up or front view
  • Current consumption: Max 90mA
  • Power supply: 12V DC
  • IP67 waterproof rating
  • One year warranty parts & labor
  • Operating Temp: -4° F ~ 140° F
  • Storage Temp: -22° F ~ 149° F
    Dimensions:
  • Overall Dimensions: 1-7/8" (L) x 1-1/4" (D)
  • Cutout Diameter: 1" (D)

Technical Specifications

Manufacturer Boyo
Part Number VTK350
Camera Sensor type CMOS
Back up camera type Flush Mount Key hole camera
License Plate Camera Type No
Camera sensor diameter 1/3"
Viewing Angle 120 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Selectable
Parking grid lines Selectable
Infrared Illumination LED Illumination
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Overall Height 1.25 Inches
Overall Length 1.88 Inches
Overall Width 1.25 Inches
Warranty 1 Year
UPC Code 689076046510

Customer Reviews

Great Amplifier
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
This camera has a very wide angle 2.8 mm lens (greater than 120 degrees of field of view as advertised) which leaves the images 15 feet behind the vehicle very tiny and fish-eyed when displayed on a small mirror monitor. I would think a camera with a 4mm lens would be a better choice if one wants to see how close an object is behind the vehicle before you back over it. The higher the lens mm number, the narrower the field of view (Posted on 1/23/2012)
