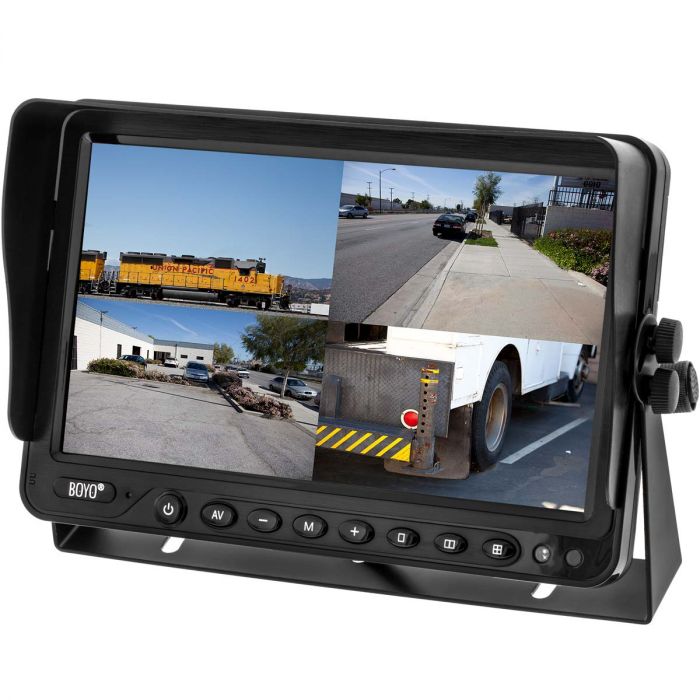

Boyo VTM9003QFHD 9" AHD/Composite video Universal Quad-Screen Monitor with Built in DVR and triggered video inputs
$499.99
In stock
SKU
VTM9003QFHD
Expert Knowledge
Talk to a specialist
- 9" Quad-Screen monitor with sun shade
- Built in 4-channel DVR that supports 256 GB SD card
- 4 - Video inputs
- 4 - Triggers for each video input
- Built in speaker for audio playback
- Includes pedestal stand
Unit includes: LCD Monitor, U-Bracket mounting stand, Sun shield, Remote control, Wiring harness, and Instruction manual
Boyo VTM9003QFHD 9" AHD/Composite video Universal Quad-Screen Monitor with Built in DVR and triggered video inputs
Features:
Dimensions:
Boyo VTM9003QFHD 9" AHD/Composite video Universal Quad-Screen Monitor with Built in DVR and triggered video inputs
Features:
- 9" Quad-Screen monitor with flush mount bucket and sun shade
- Built in 4-channel DVR that supports 256 GB SD card
- 256 GB SD card allows for 4-channels 92 hours each of full HD recording
- True 1920 x 1080 resolution
- 12 volt reverse trigger to automatically turn monitor on and select video input
- Built in speaker for audio playback
- 16:9 wide screen letterbox display
- Slide track on back of monitor to accept various LCD monitor mounts
- Embedded 1/4" - 20 nut on bottom of monitor to accept various mounts LCD monitor mounts
- Includes U-bracket with 180 degree vertical angle adjustment
- Video system: AHD/NTSC/PAL auto switching
- AHD support: 720p/960p/1080p
- OSD - On Screen Display for image adjustments ( Contrast, Brightness, Hue, Saturation, Source, Aspect ratio, and Volume
- 4 - way picture rotation function, reverse / non-reverse and normal / vertical flip
- Full Image / 2 Images / 4 images Selectable
- Includes wireless remote control
- Voltage: 12 Vdc - 36 Vdc
- Power consumption: 12Vdc - 400ma
- Storage temperature: -20° C - 80° C
- Operating temperature: -5° C - 50° C
-
Inputs and Outputs:
- 4 - Video inputs
- 1 - Video output
- 4 - Triggers for each video input
- 1 - 12-36 VDC power input
Dimensions:
- Monitor dimensions: 9" (W) x 6-1/8" (H) x 1-1/8" (D)
| Manufacturer | Boyo |
|---|---|
| Part Number | VTM9003QFHD |
| Recorder Type | DVR Recorder |
| GPS Data | No |
| Built in Speakers | Yes |
| LCD Screen Size | 9 inch - 10 inch |
| Native Screen Resolution | 1920 x 1080 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 450 Nit |
| Touchscreen | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Modulation | AHD |
| Audio Video inputs | 4 Audio Video Input |
| Audio Video Outputs | 1 Audio/Video output |
| HDMI output | No |
| USB input | No |
| SD Card input | Yes, SD Card |
| Cigarette Lighter Cord Included | No |
| Auto on/off | Yes |
| Slide track on back | Yes |
| Mount included | Yes, Pedistal stand |
| Mounting thread for stand mount | Yes |
| Operation Voltage | 12-36 Volt DC |
| Housing material | Plastic |
| Trigger wire | Yes |
| Image Flip Function | Image rotate |
| Quad Screen | Yes |
| Warranty | 1 Year |
| Color | Black |
| UPC Code | 850005493402 |
| Return period | 30 days |
| Exchange period | 30 days |
