Metra XSVI-6522-NAV 2007 - and Up Chrysler CAN Bus interface with Navigation outputs

Metra XSVI-6522-NAV 2007 - and Up Chrysler CAN Bus interface with Navigation outputs

Axxess XSVI-6522-NAV 2007 - and Up Chrysler CAN Bus interface - Main

More Views

Metra
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Metra XSVI-6522-NAV Product Highlights

  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2007 - and Up Can-Bus Chrysler vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist
Save money on all Metra installation hardware when you purchase more than one installation piece of hardware!

Frequently Bought Together

Overview

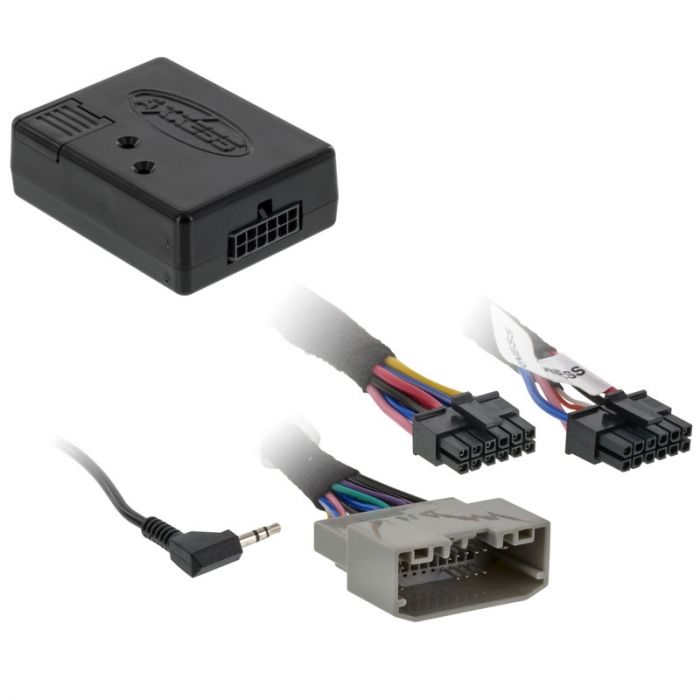

Unit includes: A) Interface, B) Power and speaker harness, and Instruction manual

Metra XSVI-6522-NAV 2007 - and Up Chrysler CAN Bus interface with Navigation outputs

Interface Features:
  • Provides all connections to factory wiring and makes installing an aftermarket stereo very easy in select 2007 - and Up Can-Bus Chrysler vehicles
  • Provides accessory output for databus signals (12-volt 10-amp capable output)
  • Retains R.A.P. (retained accessory power) while doors remain closed so you can continue to listen to the radio until doors open
  • Interface is designed to be used with factory non-amplified systems or when removing the amplified audio system
  • Perfect for use with aftermarket navigation system as interface provides navigation system outputs (parking brake, reverse, mute, V.S.S.) from databus signals
  • Includes prewired ASWC Steering wheel interface harness (ASWC Steering wheel interface not included)
  • 4 - High level speaker inputs makes connections for aftermarket car stereo's to factory speakers easy
  • USB firmware updatable
  • Retains balance and fader


Connections:
  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Radio illumination (+)
  • Blue – Antenna turn on
  • Light Green – Parking brake
  • Blue with Pink Stripe – VSS (Vehicle speed sensor)
  • Green with Violet Stripe - Reverse trigger (+)
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)


Kit Components:
  • A) XSVI-6522-NAV interface
  • B) Power and speaker harness
  • C) Instruction manual


Tools Required:

Optional parts:

Vehicle Applications:

Chrylser:
  • 2011 - and Up 200
  • 2008 - 2010 300
  • 2008 - 2009 Aspen
  • 2007 - 2010 Sebring
  • 2007 - 2010 Town and Country


Dodge:
  • 2008 - and Up Avenger
  • 2009 - 2012 Caliber
  • 2008 - and Up Challenger
  • 2008 - 2010 Charger
  • 2008 - 2011 Dakota
  • 2008 - 2013 Durango
  • 2008 - and Up Grand Caravan
  • 2009 - 2010 Journey
  • 2008 - 2009 Magnum
  • 2007 - 2011 Nitro
  • 2009 - 2011 Ram 1500
  • 2010 - 2011 Ram 2500
  • 2010 - 2011 Ram 3500
  • 2011 - 2011 Ram 3500 Chassis Cab
  • 2011 - 2011 Ram 4500 Chassis Cab
  • 2011 - 2011 Ram 5500 Chassis Cab


Jeep:
  • 2008 - 2010 Commander
  • 2009 - and Up Compass
  • 2008 - 2013 Grand Cherokee
  • 2008 - 2012 Liberty
  • 2009 - and Up Patriot
  • 2007 - and Up Wrangler


Mitsubishi:
  • 2008 - 2009 Raider


Ram:
  • 2012 - 2012 Ram 1500
  • 2012 - 2012 Ram 2500
  • 2012 - 2012 Ram 3500
  • 2012 - 2012 Ram 3500 Chassis Cab
  • 2012 - 2012 Ram 4500 Chassis Cab
  • 2012 - 2012 Ram 5500 Chassis Cab
  • 2012 - and Up C/V Tradesman


Volkswagen:
  • 2009 - 2013 Routan


Technical Specifications

Manufacturer Metra
Part Number XSVI-6522-NAV
Integration Module No
Steering Wheel Control Input No
RCA Pre-amp Audio inputs No
Speaker level inputs No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 086429179855
