Metra TurboWires 70-5514 Amplified Bypass Harness for 1989 - 1997 Ford / Lincoln / Mazda / Mercury / Nissan vehicles
$22.99
In stock
SKU
70-5514
Expert Knowledge
Talk to a specialist
- Amplifier bypass wiring harness for 1989 - 1997 Ford / Lincoln / Mazda / Mercury / Nissan vehicles
- Harness is designed to bypass the Premium Audio amplifier
- Uses the new radio or aftermarket amplifier to power speakers
- Plugs into car harness at radio and run to the factory tuner

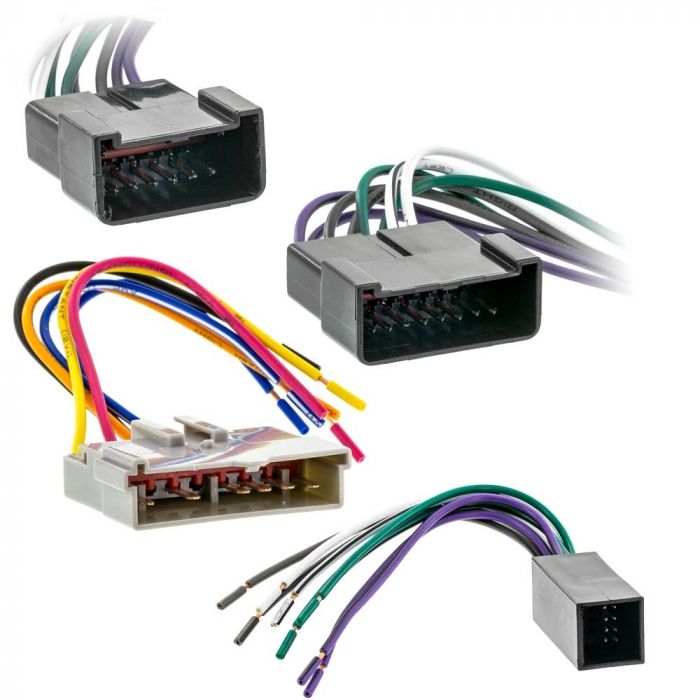

Unit Includes: Power Harness, Extension Wiring harness and Instruction manual
Metra TurboWires 70-5514 Amplified Bypass Harness for 1989 - 1997 Ford / Lincoln / Mazda / Mercury / Nissan vehicles
Metra TurboWires 70-5514 Amplified Bypass Harness for 1989 - 1997 Ford / Lincoln / Mazda / Mercury / Nissan vehicles
-
Features:
- Amplifier bypass wiring harness for 1989 - 1997 Ford / Lincoln / Mazda / Mercury / Nissan vehicles with Premium audio system
- Harness is designed to bypass the Premium Audio amplifier
- Uses the new radio or aftermarket amplifier to power speakers
- Allows installation of an aftermarket radio using the existing factory wiring and connectors. No cutting of factory wiring is needed.
- Plugs into car harness at radio and run to the factory tuner
- Power and 4-Speaker
- 8-pin power plug
- 20-pin speaker and antenna plug
- 17 feet long with 16 gauge wire
-
Wire Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
- Motorola Style antenna connector to Ford factory antenna connector
-
Fitments:
-
Ford:
- 1992 - 1996 Bronco
- 1992 - 1994 Crown Victoria
- 1991 - 1994 Explorer
- 1997 - 1997 F-250/350
- 1992 - 1996 F-Series Pickup
- 1993 - 1997 Probe
- 1990 - 1995 Taurus
- 1989 - 1996 Thunderbird
-
Lincoln:
- 1990 - 1994 Continental
- 1990 - 1994 Continental
- 1993 - 1994 Mark VIII
- 1990 - 1992 Mark VII
- 1990 - 1994 Town Car
-
Mazda:
- 1991 - 1994 Navajo
-
Mercury:
- 1989 - 1996 Cougar
- 1990 - 1994 Grand Marquis
- 1993 - 1995 Villager
-
Nissan:
- 1993 - 1995 Quest
| Manufacturer | Metra |
|---|---|
| Part Number | 70-5514 |
| Wiring harness function | Replace Factory Radio |
| Warranty | 1 Year |
| Vehicle Year | 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997 |
| Vehicle Brand | Ford, Lincoln, Mazda, Mercury, Nissan |
| UPC Code | 086429006915 |
| Item Returns | This item can be returned |
