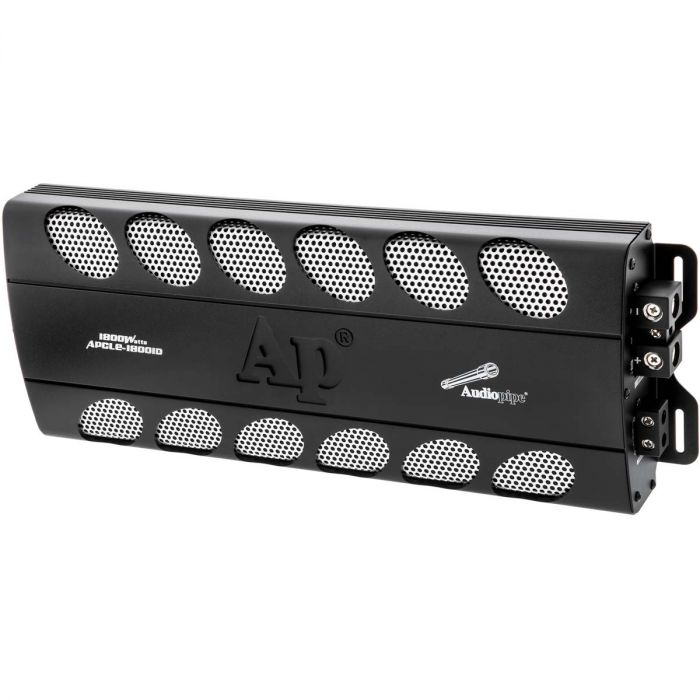

Audiopipe APCLE-18001D 1800 Watt Class D Mono Amplifier

Description

Unit includes: 1-Channel power amplifier, Mounting hardware, Wired bass controller, 120 amp fuse and fuse holder and Instruction manual

Features:

1800 Watts Max Power
Pulse Width Modulated MOSFET Power supply
Double side FR-4 PCB with high quality SMD components
Oversized toroids for excellent current and voltage control
3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
1-ohm stable
Amplifier is strap-able so that you can connect and bridge with another for additional power output (2 ohm - 4 ohm load only)
Variable Low Pass filters allow you to adjust the playback frequencies from 40Hz to 180Hz at 12dB per octave
2 channel RCA inputs accepts up to 5 volt input signals
0° and 180° phase control
Variable Bass boost controls: 0 - +12dB at 30Hz - 80Hz
Variable subsonic filter: 24dB 5Hz - 50Hz
Gold plated terminals for all connections
Accepts up to 16 volts DC input for maximum sound output
Frequency Response: 8Hz to 180 Hz
Total Harmonic Distortion (4 Ω): < 0.15% (1kHz)
Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >70dB
Dimensions: 17" (W) x 2-1/8" (H) x 7" (D)
Minimum 2 Gauge power wire with 120 amp fuse

RMS Power Rating:

4 ohms: 750 watts x 1 channels
2 ohms: 1150 watts x 1 channels
1 ohms: 1800 watts x 1 channel

Specifications

More Information
Manufacturer	Audiopipe
Part Number	APCLE18001D
Amplifier Topology Class	Class D
Number of Channels	1 Channel
Total RMS Power at 1 ohm	$1,800.00
Total RMS Power at 2 ohm	$1,150.00
Total RMS Power at 4 ohm	$750.00
Total Peak Power Output	$1,800.00
Amplifier Bridging	Not Bridgable
Minimum Impedance in Un-Bridged Mode	1 ohm
Strappable Amplifier	No
Strappable Power Output	3600 Watts
RCA Pre-amp Audio inputs	1 Pair
RCA Pre-amp Audio outputs	1 Pair
Preamp voltage	5 volts
Speaker level inputs	No
Gain Control	Yes
Bass Knob / Remote Gain	Yes
Built in Crossover	Low-pass, Sub-sonic
Cooling Fan	No
Color	Black
Warranty	1 Year
Recommended Power Wire Gauge	2 Gauge
CEA2006 Compliant	No
UPC Code	784644417430
Return period	30 days
Exchange period	30 days
