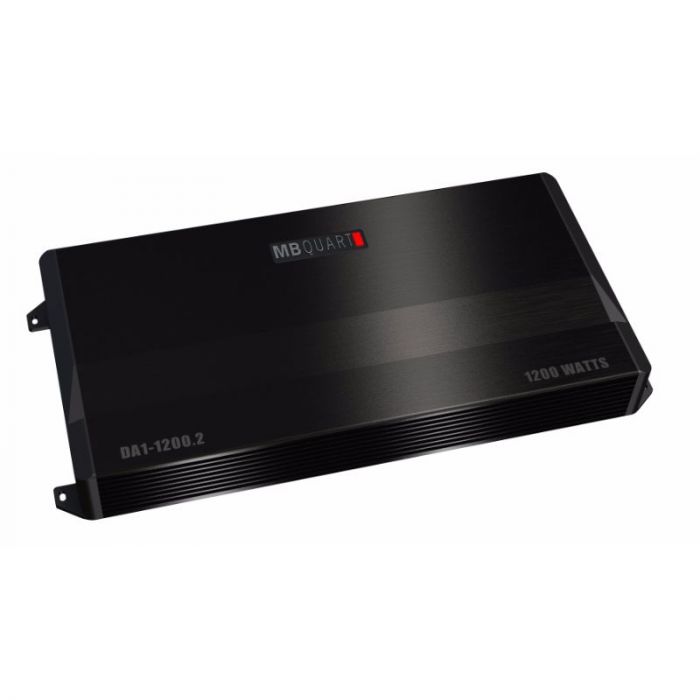

DISCONTINUED - MB Quart DA1-1200.2 2 Channel Class AB Amplifier - 1200 Watts

The MB Quart DA1-1200.2 2 channel class A/B car audio amplifier comes with an exploding power output of 600 W x 2 channels @ 2 ohms. With 100% copper cables that are rated high offering great resistance with hardly any signal being lost during transmission. The amplifier installation kit comes with abrasion proof insulation jacket with a durable outer PVC jacket that is very flexible, making them easy to route anywhere inside your car.

The mono bridged power output blasts at 1200 W x 1 channel @ 4 ohms and comes with focused mass aluminum heat sinks. The parts spacing is ideal with the 6.5” width PCB, and the generous extrusion length offers a high degree of thermal resistance. The DC is protected against short circuit and features overload and thermal protection. With the frequency response at 10Hz-45Hz and the signal to noise ratio >90dB, the sound effect is simply awesome.

What’s more is the bass boost at 0 ? 12 dB making the music far out inside your car, allowing you to make a statement whenever you drive across town. The blue and silver wire twisted pair technology look extremely cool, assuring superior signal transfer without any noise suppression and no loss at all. The superior technology ensures zero interference allowing the signal flow to be clean and pure at every power level. The 60 AGU gold plated fuse is meant to handle all the DC power required by the amplifier, with zero current loss. Measuring 19.3 L x 9 H x 2.2 W inches and the amplifier comes with the manufacturer’s warranty.

Features:
• DA1-1200.2 Discus Car Audio Amplifier
• 1200 Watts of Full range power
• Bridgeable amplifier
• Class SQ (Class A/B) circuitry
• Brand new design
• Concentrated mass aluminum heat sinks
• Better spacing of parts by using 6.5” wide PCB’s.
• High thermal performance with a broader extrusion length
• 3 stage protection circuits
• All models come with on-board fusing of 40A x 3
• Frequency response from 10Hz-45KHz
• Signal to noise ratio: >90 dB
• THD percent of <0.5%
• Variable Hi-Pass of 60Hz to 1.2 KHz
• Variable Low-Pass of 30Hz to 250Hz
• 45Hz Bass Boost 0~12dB
• RCA Input jack

Max Power Output:
• 2 x 600 W @ 2 ohms
• 2 x 300 W @ 4 ohms
• 1 x 1200 W @ 4 ohms (Mono Bridged)

Dimensions:
• 19.3”L x 9”H x 2.2”W (492x230x56mm)

Warranty duration:
• Basic warranty: 1 year
