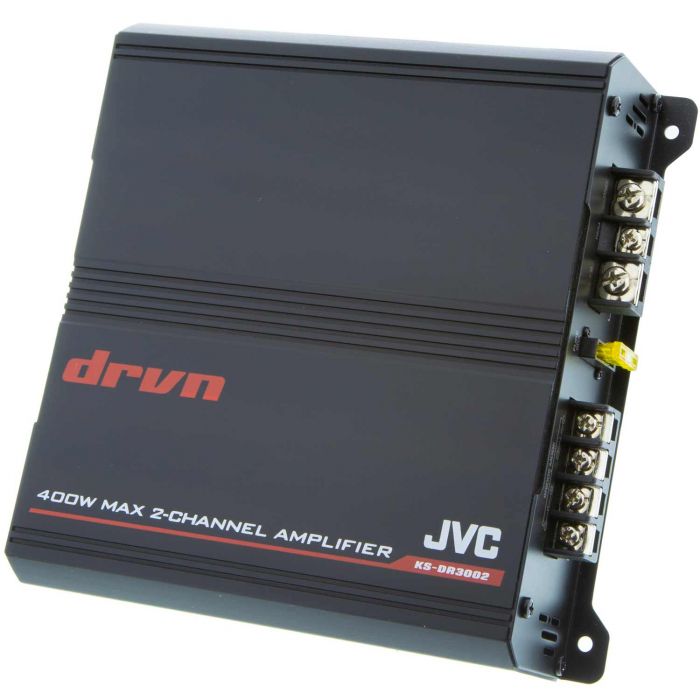

JVC KS-DR3002 Class-D Compact 2 Channel Class-D Marine Power Amplifier
Expert Knowledge
Talk to a specialist
- Class AB 2-Channel amplifier
- Pulse Width Modulated MOSFET power supply
- Speaker Level Input with signal sense turn-on for easy integration to factory audio systems
- Cast Aluminum Heat Sink Design
- 65 Watts x 2 at 4 ohms
- 4 Ohms and 2 Ohms Load Capability
- CEA-2006 Compliant
JVC KS-DR3002 Class-D Compact 2 Channel Class-D Marine Power Amplifier
- Features
- Class A/B 2-Channel Amplifier
- Pulse Width Modulated MOSFET power supply
- Bi-color LED status indicators
- Extruded aluminum heat sink design
- 2/1 channel operation
- Speaker-level inputs with signal sensing for automatic turn-on
- 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heatsink for extreme heat dissipation
- Silver-plated RCA level inputs
- Silver-plated screw terminals
- Frequency Response: 50Hz - 50KHz
- Signal to Noise Ratio: >80dB
- Input Impedance: 21k ohm
- Speaker Impedance: 4Ω (2Ω to 4Ω allowable)
- CEA-2006 Compliant
- Pre-Amp features:
- Fixed Low-pass electronic crossover (80 Hz)
- Fixed High-pass electronic crossover (1200 Hz)
- Max Power Output
- 400 Watts
- RMS Power Output
- 65 Watts x 2 at 4 ohms
- 90 Watts x 2 at 2 ohms
- 180 Watts x 2 bridged at 4 ohms
- Inputs and Outputs
- 1 - Speaker level harness inputs
- 1 - Pair of RCA Audio Inputs
- Dimensions
- 194mm x 52mm x 185mm
- 7-5/86" (W) x 2-1/16" (D) x 7-1/4" (H)
| Manufacturer | JVC |
|---|---|
| Part Number | KS-DR3002 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 2 Channel |
| Total RMS Power at 2 ohm | 180.00 |
| Total RMS Power at 4 ohm | 130.00 |
| RMS Output per Channel (x1 at 4 ohms) | 180.00 Watts |
| RMS Output per Channel (x2 at 4 ohms) | 65.00 Watts |
| RMS Output per Channel (x2 at 2 ohms) | 90.00 Watts |
| Total Peak Power Output | 400.00 (Watts) |
| Amplifier Bridging | Bridgable @ 4 ohms |
| Minimum Impedance in Bridged Mode | 4 ohm |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | None |
| Preamp voltage | 200 mV - 6 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | High-pass, Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 10 Gauge |
| Overall Height | 2.06 inches |
| Overall Length | 7.69 inches |
| Overall Width | 7.31 inches |
| CEA2006 Compliant | Yes |
| UPC Code | 046838073465 |
| Return period | 30 days |
| Exchange period | 30 days |
