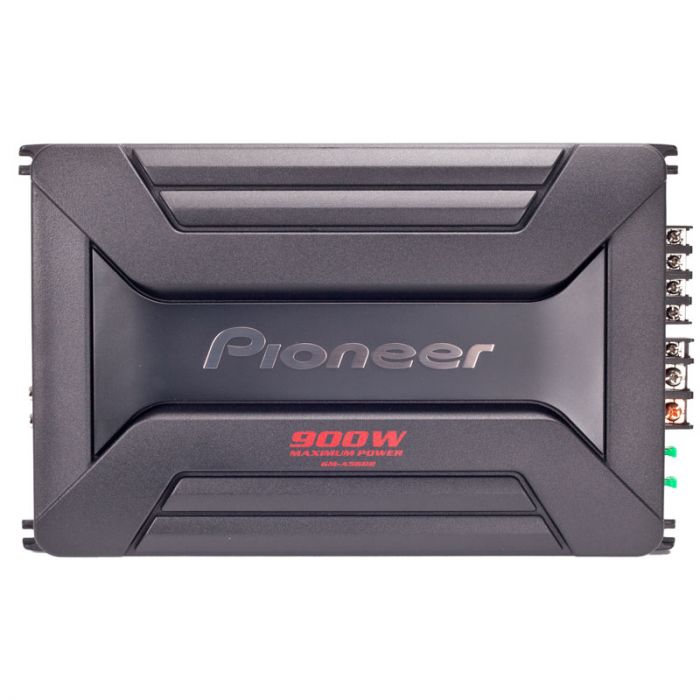

Pioneer GM-A5602 900 Watt Class AB 2-Channel Car Amplifier

Pioneer GM-A5602 900 Watt Class AB 2-Channel Car Amplifier

Pioneer GM-A5602 4-Channel Car Amplifier - Front right

More Views

Item sku:GM-A5602
Pioneer

Overall Rating 5 (Based on 2 reviews)

Would you recommend this to a friend?

Write a review

Pioneer GM-A5602 Product Highlights

  • 2-Channel Subwoofer Car Amplifier
  • Super compact design
  • Class AB Design Offers Efficiency and High-Quality Sound
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 150 W x 2

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 800-363-0096
  • Fast Free Same Day Shipping - Over $99

Overview

Unit includes: Power Car Amplifier, and Instruction manual

Pioneer GM-A5602 900 Watt Class AB 4-Channel Car Amplifier features:
  • 900 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Compact Design for Versatile Installation Options without compromising sound quality, Efficient Class-AB digital Car Amplifiers are 50% smaller that the Pioneer GM-Series Car Amplifiers.
  • Improved Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Stability circuitry allows connection to 1 ohm subwoofer systems which allows connection of large or multiple subwoofers.
  • Variable Low Pass filters and high pass filters allow you to adjust the playback frequencies from 40 Hz to 500 Hz with 12dB per octave slopes
  • Speaker level inputs allow you to connect this Car Amplifier stereo system that do not have RCA outputs. The is very typical for OEM head-units and you can now avoid adding separate line level converters.
  • Remote turn on by auto signal sense, so you do not need to run a remote turn on lead with OEM head-units
  • 2 channel RCA inputs accepts up to 6.5 volt input signals
  • RCA Pass through outputs to connect multiple amplifiers in series
  • Bass boost 0-18dB
  • Gold plated screw terminal connections for Power Inputs and Speaker level outputs
  • Continuous Power Output (2 Ω, ≤ 1% THD+N): 225 W x 2
  • Continuous Power Output (4 Ω, ≤ 1% THD+N): 150 W x 2
  • Frequency Response: 10Hz to 35kHz
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB
  • Dimensions: 8 1/2" (W) x 2 3/8" (H) x 13 3/4" (D)

Technical Specifications

Manufacturer Pioneer
Part Number GM-A5602
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Total Peak Power Output 760 watts
Total RMS Power Output No
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs 1 Pair
Preamp voltage No
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code 884938219754

Customer Reviews

Good value and service
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
Very good service. Shipped promptly. (Posted on 3/31/2017)
Great purchase
Review by
Value
Price
Install (5 star for easy)
Durability
Quality
I wanted an amplifier that had some extra power. I have this connected to a home built 3-way front stage and needed a low cost amp to do the trick. This amp is an excellent low cost choice, the audio quality is great, doesn't lack any power, and soundstage and clarity are excellent. I am really surprised that the audio quality was as good as it is. (Posted on 3/30/2015)

Write Your Own Review

You're reviewing: Pioneer GM-A5602 900 Watt Class AB 2-Channel Car Amplifier

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Value
Quality
Durability
Install (5 star for easy)
Price

Ask questions receive answers.

Posted by cody smith, Thursday, August 13, 2015

Question:

Why isn't the power light come in.on it come on once

Answers:

  • Posted by Mike Yang on Thursday, August 13, 2015
    A: I would recheck all the connections and make sure the wiring harnesses are properly connected.
