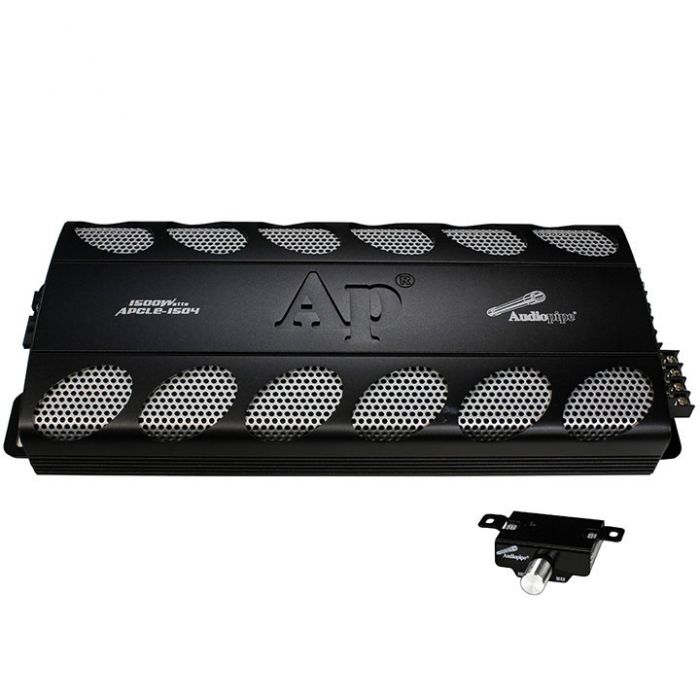

Audiopipe APCLE-1504 1500 Watt Class AB 4-Channel Amplifier

$190.99
In stock
SKU
APCLE1504

Key Features

  • Audiopipe APCLE-1504 1500 Watt Class AB 4-Channel Amplifier
  • 4 ohms: 75 watts x 4 channels
  • 2 ohms: 150 watts x 4 channels
  • 4 ohms: 200 watts x 2 channel (Bridged)
  • 4 - Channel Low level RCA inputs
  • 4 - Channel Speaker level RCA inputs
Unit includes: 4-Channel power amplifier, Mounting hardware and Instruction manual

Audiopipe APCLE-1504 1500 Watt Class AB 4-Channel Amplifier
    Features:
  • 1500 Watts Max Power
  • Pulse Width Modulated MOSFET Power supply
  • Double side FR-4 PCB with high quality SMD components
  • Oversized toroids for excellent current and voltage control
  • 3-Way Protection circuit senses internal temperature and automatically lowers input level to prevent heat damage. Short circuit protection prevent damage when speaker leads are shorted. Overload protection prevent damage from low impedance or blown woofers.
  • Multi-channel operation and bridging for 4-channel / 3-channel (Single bridged + 2-channel stereo) / 2-channel (Dual bridged)
  • 2 ohm stereo stable and 4 ohm bridged stable
  • Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH1 and 2)
  • Variable Low Pass filters allow you to adjust the playback frequencies from 55Hz to 5.5kHz at 12dB per octave (CH3 and 4)
  • Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH1 and 2)
  • Variable High Pass filters allow you to adjust the playback frequencies from 55Hz to 550Hz at 12dB per octave (CH3 and 4)
  • 4 channel RCA inputs accepts up to 6 volt input signals (Built in ground loop isolation)
  • 4 channel Speaker-level inputs accepts up to 12 volt input signals
  • Soft-start remote turn on to prevent speaker pops
  • 0° and 180° phase control
  • Variable Bass boost controls: 0 - +15dB at 45Hz
  • Platinum plated terminals for all connections
  • Accepts up to 16 volts DC input for maximum sound output
  • Frequency Response: 20Hz to 20 kHz
  • Total Harmonic Distortion (4 Ω): < 0.05% (1kHz)
  • Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >95dB
  • Dimensions: 15" (W) x 2-1/8" (H) x 7" (D)
  • Minimum 8 Gauge power wire with 50 amp fuse
    RMS Power Rating:
  • 4 ohms: 75 watts x 4 channels
  • 2 ohms: 150 watts x 4 channels
  • 4 ohms: 200 watts x 2 channel (Bridged)
More Information
Manufacturer Audiopipe
Part Number APCLE1504
Amplifier Topology Class Class AB
Number of Channels 4 Channel
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode 4 ohm
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
RCA Pre-amp Audio inputs 2 Pairs (Front, Rear)
Preamp voltage 200 mV - 6 V
Speaker level inputs Yes
Gain Control Yes
Bass Knob / Remote Gain Yes
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color Black
Warranty 1 Year
Recommended Power Wire Gauge 8 Gauge
CEA2006 Compliant No
UPC Code 784644417393
Return period 30 days
Exchange period 30 days
