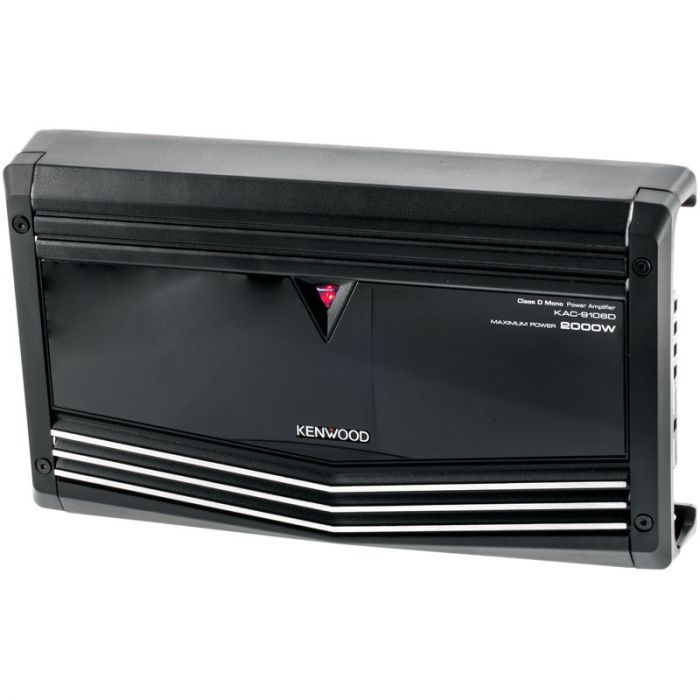

Kenwood KAC-9106D 2,000 Watts Maximum Class-D Mono Power Amplifier
Expert Knowledge
Talk to a specialist
- Class-D Mono 2,000 Watt MAX Amplifier
- Power MOS-FET Switching Power Supply
- Built in Venting Fan
- Signal Sensing Turn-on
- Line Output Terminals for Extension
- Terminal Cover
- Cast Aluminum Heat Sink Design
- CEA-2006 Compliant
Kenwood KAC-9106D Class-D Mono Power Amplifier
Features
- Class D amplifier for excellent efficency and awesome power output
- Power MOS-FET Switching Power Supply
- Speaker Level Input for easy integration into existing factory audio systems
- Cast Aluminum Heat Sink Design for excellent heat dissapation
- Signal Sensing Turn-on will automatically turn amplifier on if remote turn on signal is not present or can't be found
- Removable Terminal Covers to conceal ugly wiring
- Line Output Terminals for for easy daisy chaining
- Built in Variable Low-Pass Filter (50Hz-200Hz, -24dB/oct)
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4 Ohms at 14.4V)
- Frequency Response: 20Hz-200Hz (+0dB, -3dB)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Weight (kg): 2.8 (kg)/6.2 (lbs.)
- CEA-2006 Compliant
Max Power Output
- 2 ohms: 2000 watts x 1 channel
RMS Power Output
- 4 ohms: 500 watts x 1 channel
- 2 ohms: 1000 watts x 1 channels
Inputs and Outputs
- Battery & Ground: Screw Type Terminal Block (Nickel Plated) (M6)
- Line-in: RCA (Nickel Plated)
- Line Out: RCA (Nickel Plated)
- Speaker Input: JST Connector
- Speaker Output: Screw Type Terminal Block (Ni) (M4)
Dimensions
- 335mm x 56mm x 192mm
- 13-3/16 inch x 2-3/16 inch x 7-9/16 inch
Bass Boost
- Built in Bass Boost Control (40Hz, 0dB-+18dB)
| Manufacturer | Kenwood |
|---|---|
| Part Number | KAC9106D |
| Amplifier Topology Class | Class D |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | 0.00 |
| Total RMS Power at 2 ohm | 1,000.00 |
| Total RMS Power at 4 ohm | 500.00 |
| Total Peak Power Output | 2,000.00 (Watts) |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 150 mV - 11 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | No |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| CEA2006 Compliant | No |
| UPC Code | 019048206121 |
| Return period | 30 days |
| Exchange period | 30 days |
