Kenwood P-W120B Single KFC-W112S 12" Subwoofer system with Kenwood KAC-5206 Amplifier

Kenwood P-W120B Single KFC-W112S 12" Subwoofer system with Kenwood KAC-5206 Amplifier

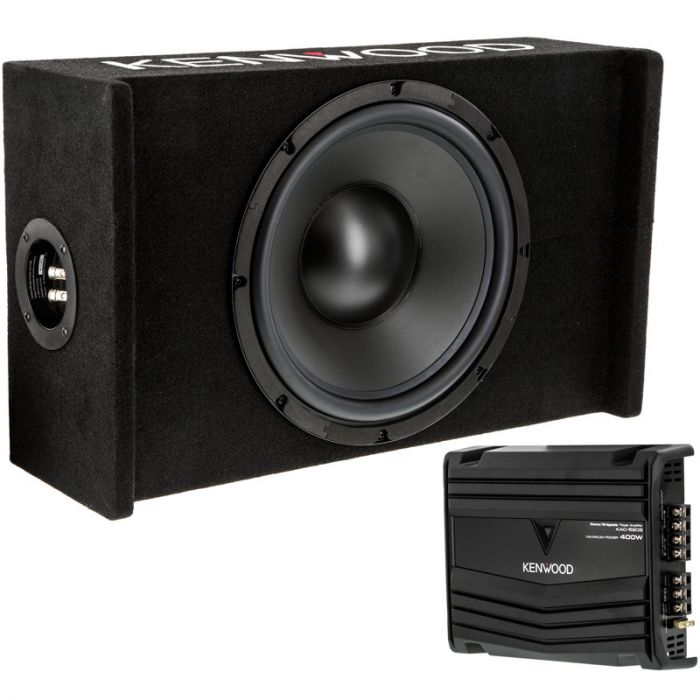

Kenwood P-W120B 12" Subwoofer system with amplifier - Main



More Views

Item sku:P-W120B
Kenwood

Overall Rating 5 (Based on 3 reviews)

Would you recommend this to a friend?

Write a review

Kenwood P-W120B Product Highlights

  • Complete Kenwood subwoofer system bundle
  • Includes (1) Kenwood KFC-W112S 12" subwoofers in an MDF enclosure
  • Includes (1) Kenwood KAC-5206 Amp
  • Down-firing subwoofer enclosure with Kenwood logo
  • Perfect for Trucks and SUV's

Quality Mobile Video Advantage

  • Lifetime Technical Support
  • 30-Day Return Policy - See exceptions
  • Premier Service - Call us! 818-242-9461
  • Fast Free Same Day Shipping - Over $99

Buy everything you need as a package and SAVE!

Overview

Unit Includes: (2) KFC-W112S 12 inch subwoofers, (1) KAC-5206 Amplifier, Mounting hardware, Input wiring leads, Warranty Card, and Instruction manual

Kenwood KFC-W112S 12" Subwoofer

Features
  • Single 12 inch subwoofer system is perfect for trucks and SUV's
  • High quality down firing MDF enclosure for easy placement in the cargo area or behind the seats
  • High quality sound with included amplifier
  • Polypropylene cone for excellent rigidity
  • High-roll Urethane Surround
  • Silver Plated Terminals
  • Frequency Response: 40Hz - 300Hz (+0dB, -3dB)
  • Recommended sealed volume (Each woofer) 1.25 ft3
  • Recommended ported volume (Each woofer) 1.5 ft3
  • 1.64 pound strontium magnet
  • Sensitivity: 84dB /watt at 1m
  • Includes subwoofer mounting hardware

Power Handling RMS
  • 300 watts

Power Handling Max
  • 1200 watts

Dimensions
  • Enclosure dimensions: 21-7/8" x 7-1/4" x 13-3/8"
Kenwood KAC-5206 Class-AB Stereo/Bridgeable Power Amplifier

Features
  • Class AB amplifier
  • 2 or Mono channel operation
  • 2 Ohms Load Capability
  • Power MOS-FET Switching Power Supply
  • Speaker Level Input
  • Signal Sensing Turn-on
  • Cast Aluminum Heat Sink Design
  • Built in Low-Pass Filter (80Hz, -18dB/oct)
  • Signal to Noise Ratio: 95dB (Reference: Rated Power into 4Ohms at 14.4V)
  • Frequency Response: 5Hz-50kHz (+0dB, -3dB) Class-AB
  • Input Impedance: 10k ohm
  • Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
  • Weight (kg): 1.3 (kg)/2.8 (lbs.)
  • CEA-2006 Compliant

Max Power Output
  • 400 Watts

RMS Power Output
  • 60 Watts x 2

Inputs and Outputs
  • Battery and Ground: Screw Type Terminal Block (Ni) (M6)
  • Speaker Output: Screw Type Terminal Block (Ni) (M4)
  • Line-in: RCA (Ni)
  • Speaker Input: JST Connector

Dimensions
  • 225mm x 55mm x 180mm

Technical Specifications

Manufacturer Kenwood
Part Number P-W120B
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) No
Sensitivity 84 dB
Frequency Response 40 Hz - 300 Hz
Sub enclosure type Sealed
Power Handling RMS 300 Watts
Power Handling Peak 1200 Watts
Shallow Mount Subwoofer No
Mounting Depth No
Cutout Dimensions No
Sealed Enclosure Recommended Size No
Ported Enclosure Recommended Size No
Color Black
Warranty 1 Year
UPC Code 019048213143
